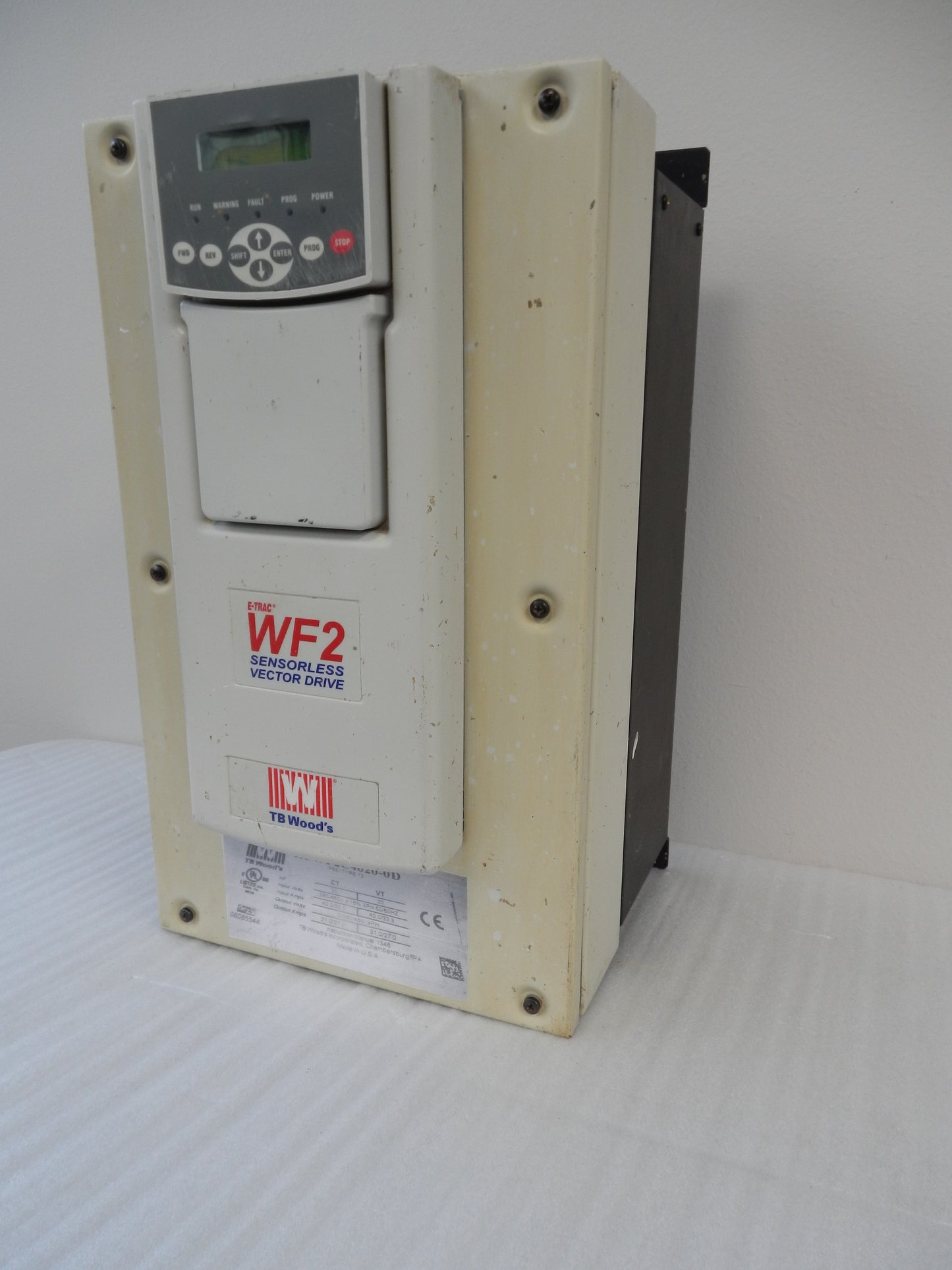

RUWF2C4020-0D TB Wood's AC Variable Frequency Drive 2 HP 460V 3-Phase VFD NEMA 12

Description:

• Genuine TB Wood's AC Variable Frequency Drive (VFD) designed for precise motor speed and torque control
• Rated for 2 HP (1.5 kW) constant torque applications
• Designed for 380–460 VAC three-phase input and three-phase motor output
• Part of the WF2 Series sensorless vector drives for superior motor performance and low-speed torque
• Features advanced PWM (Pulse Width Modulation) motor control with sensorless vector technology
• Adjustable output frequency from 0.1 to 320 Hz for accurate speed control
• Overload capacity of 150% rated current for 60 seconds
• Supports multiple analog input signals including 0–10 VDC, ±10 VDC, 4–20 mA, and pulse reference inputs
• Built-in keypad for programming and monitoring
• NEMA 12 / IP55 enclosure suitable for industrial environments
• Ideal for conveyors, pumps, fans, compressors, packaging equipment, material handling systems, and industrial automation applications.

Specifications:

• Manufacturer Name: TB Wood's
• Part Number (MPN): RUWF2C4020-0D
• Product Series: WF2
• Product Type: AC Variable Frequency Drive (VFD)
• Motor Rating: 2 HP (1.5 kW)
• Drive Type: Sensorless Vector Drive
• Input Voltage: 380–460 VAC, 3-Phase
• Output Voltage: 0–460 VAC, 3-Phase
• Input Frequency: 50/60 Hz ±2 Hz
• Output Frequency Range: 0.1–320 Hz
• Overload Capacity: 150% Rated Current for 60 Seconds
• Control Method: Voltage Vector PWM
• Carrier Frequency: 1–16 kHz
• Reference Inputs:
  • 0–5 VDC
  • 0–10 VDC
  • ±10 VDC
  • 0/4–20 mA
  • Pulse Train (up to 100 kHz)
• Enclosure Rating: NEMA 12 / IP55
• Cooling Method: Natural Convection (2 HP models)
• Operating Temperature: 0°C to +40°C
• Storage Temperature: -20°C to +65°C
• Certifications:
  • UL Listed
  • cUL Listed
  • CE
• Applications:
  • Pumps
  • Fans
  • Conveyors
  • Compressors
  • Packaging Equipment
  • Material Handling
  • Industrial Automation
  • OEM Machinery

Dimensions:

• Compact industrial VFD designed for panel mounting in NEMA 12 enclosures.
• Refer to the manufacturer's installation manual for mounting clearances and enclosure dimensions.

Weight:

• Approximate Weight: 3.2 kg (7.1 lb).
