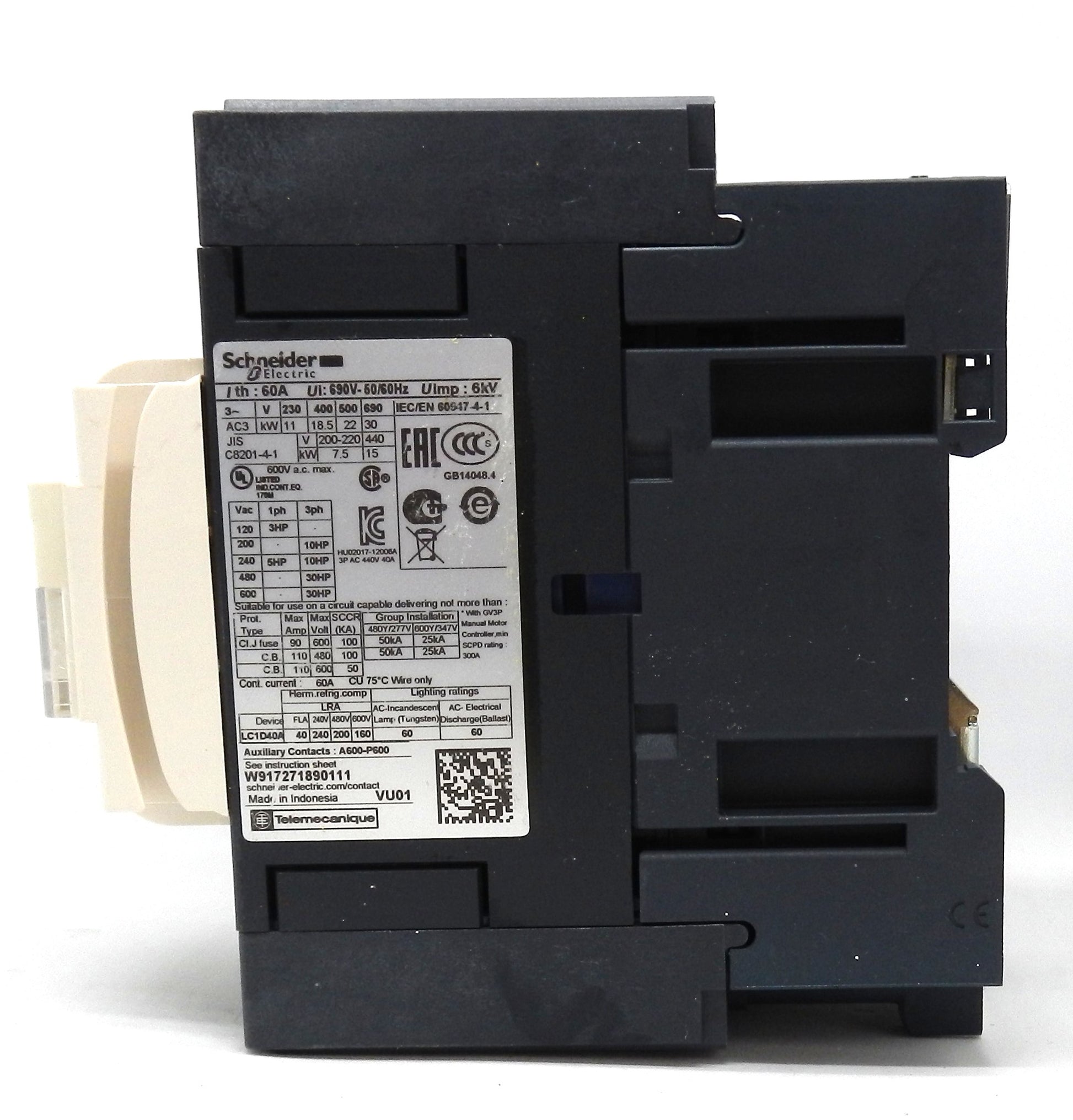

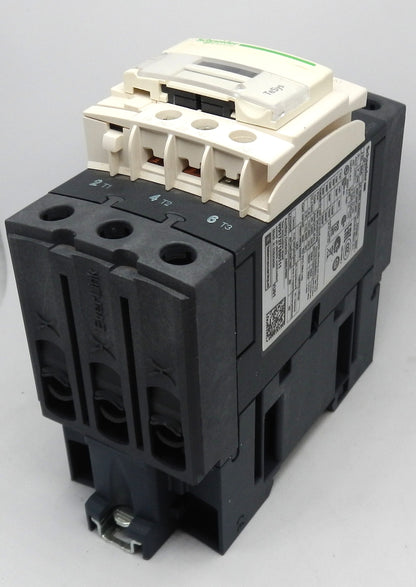

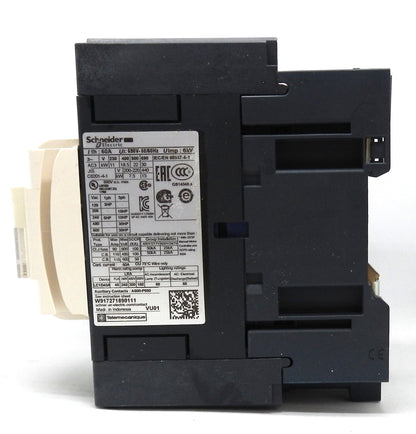

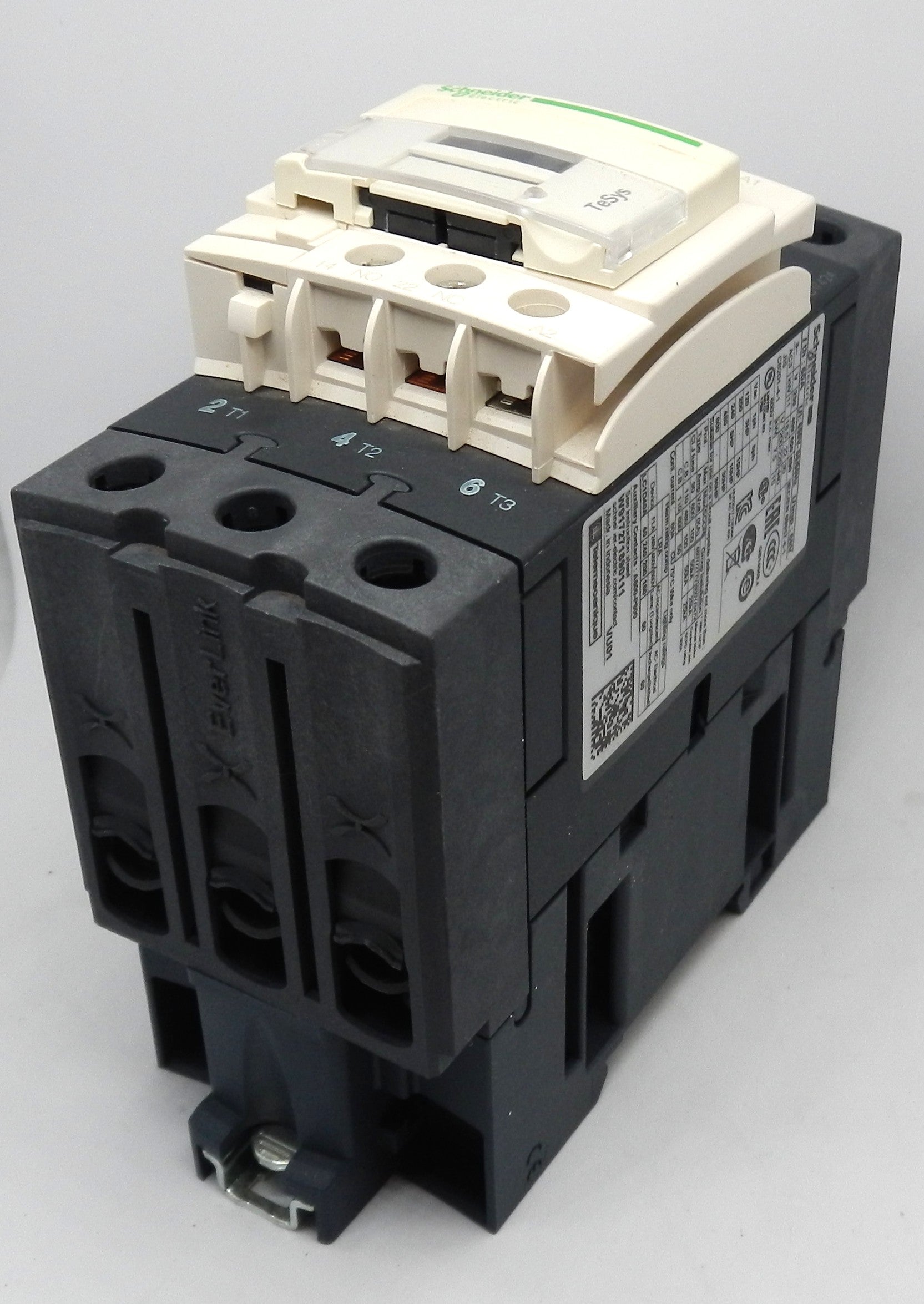

LC1D40A Schneider Electric TeSys D 40A 3-Pole IEC Motor Contactor 600V Industrial Control

Description:

• Genuine Schneider Electric TeSys D / TeSys Deca IEC contactor for industrial motor control and power switching applications
• Provides 3-pole, 3 Normally Open (3 NO) main power contacts
• Rated for 40A AC-3 motor applications at up to 440 VAC under IEC ratings
• Power circuit supports operating voltages up to 690 VAC depending on applicable standard and configuration
• Suitable for motor loads up to 30 HP at 460/480 VAC, 3-phase and 30 HP at 575/600 VAC, 3-phase

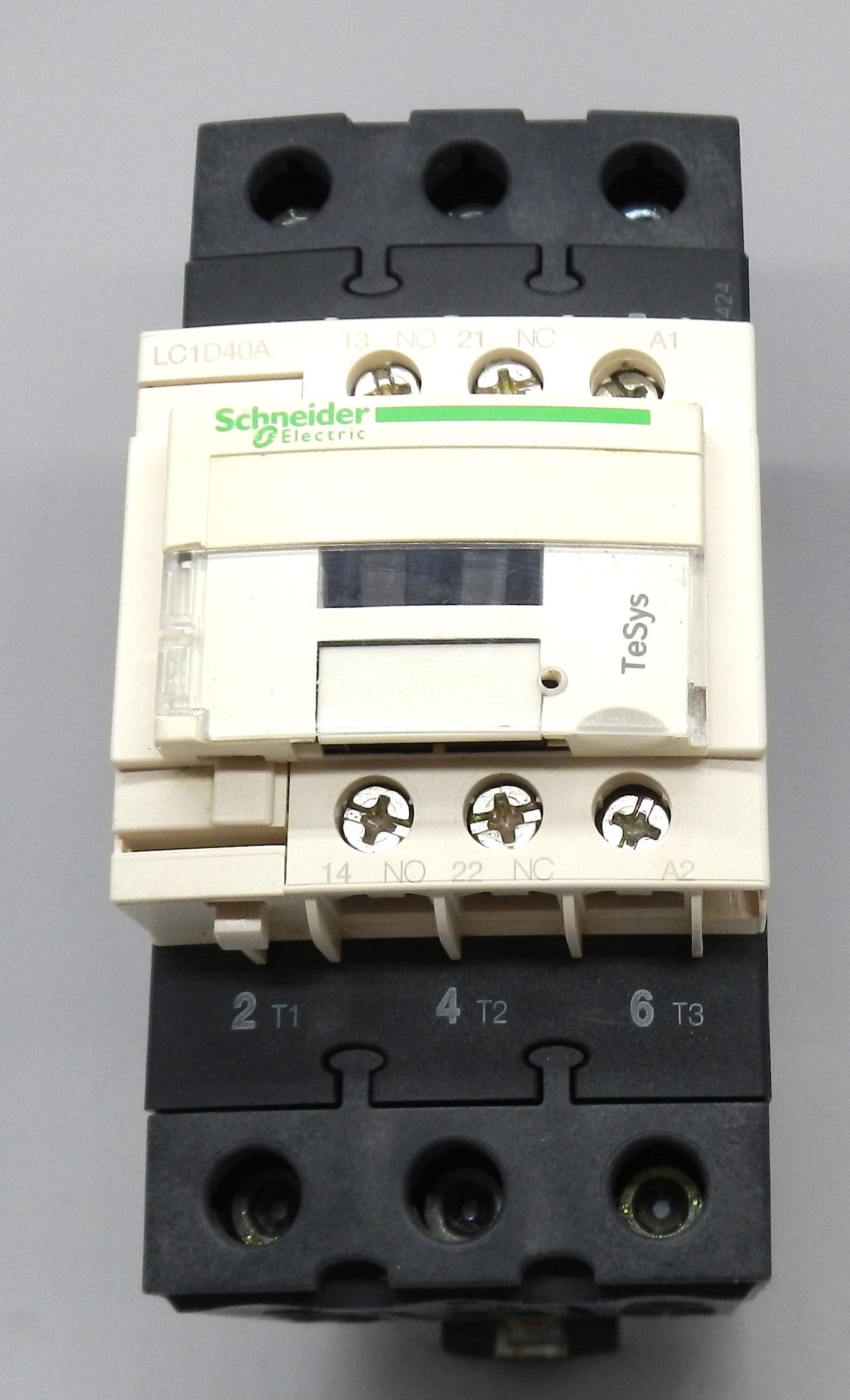

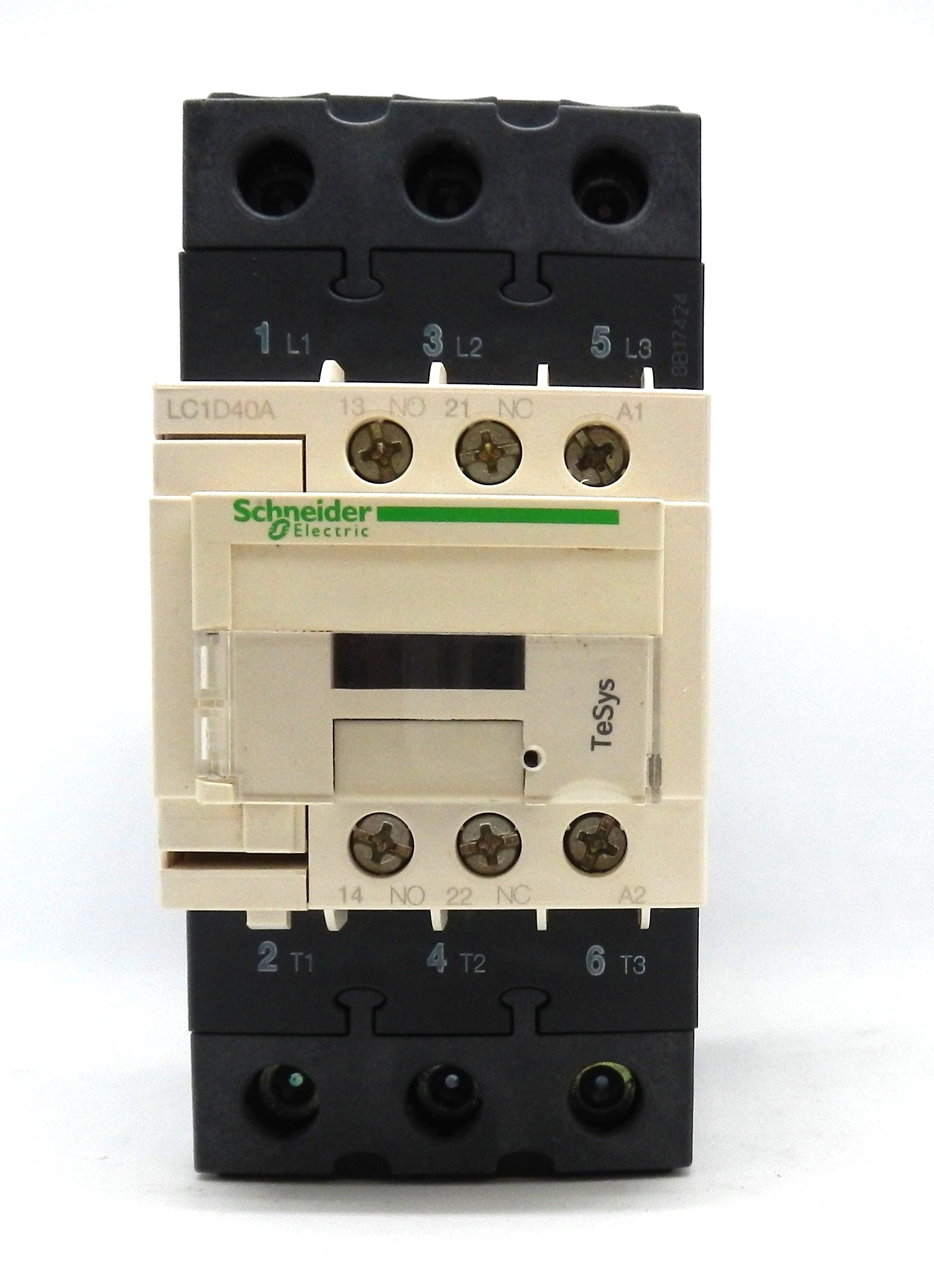

• Includes 1 NO + 1 NC built-in auxiliary contacts
• Designed for motor starters, pumps, compressors, conveyors, HVAC equipment, industrial machinery, and automation systems
• Compact design supports DIN rail or screw mounting in industrial control panels
• High electrical and mechanical durability for demanding switching applications
• Important: LC1D40A identifies the contactor family; the complete catalog number includes a suffix that specifies the coil voltage and terminal configuration. Verify the coil marking on your unit before listing a specific coil voltage.

Specifications:

• Manufacturer: Schneider Electric
• Part Number: LC1D40A
• Product Family: TeSys D / TeSys Deca
• Product Type: IEC Motor Contactor
• Number of Poles: 3
• Main Contact Configuration: 3 NO
• Rated Operational Current: 40 A AC-3
• AC-1 Current Rating: 60 A
• Power Circuit Voltage: Up to 690 VAC
• DC Power Circuit Voltage: Up to 300 VDC
• Motor Rating:
  • 10 HP @ 200/208 VAC, 3-Phase
  • 10 HP @ 230/240 VAC, 3-Phase
  • 30 HP @ 460/480 VAC, 3-Phase
  • 30 HP @ 575/600 VAC, 3-Phase
• Motor Rating:
  • 11 kW @ 220–230 VAC
  • 18.5 kW @ 380–400 VAC
  • 22 kW @ 415–440 VAC
  • 22 kW @ 500 VAC
  • 30 kW @ 660–690 VAC
• Auxiliary Contacts: 1 NO + 1 NC
• Mounting:
  • DIN Rail
  • Screw Mount
• Applications:
  • Motor Control
  • Industrial Automation
  • HVAC Systems
  • Pumps
  • Compressors
  • Conveyors
  • Manufacturing Equipment
  • OEM Machinery

Coil Voltage:

• Must be confirmed from the complete LC1D40A catalog number
• Examples include 24 VDC, 110 VAC, 120 VAC, 220 VAC, 230 VAC, 480 VAC, and 600 VAC configurations
• Do not list the coil as 600V simply because the contactor is rated for a 600V power circuit.

Dimensions:

• Width: Approximately 75 mm (2.95 in)
• Compact TeSys D/Deca form factor
• DIN rail or panel mounting
