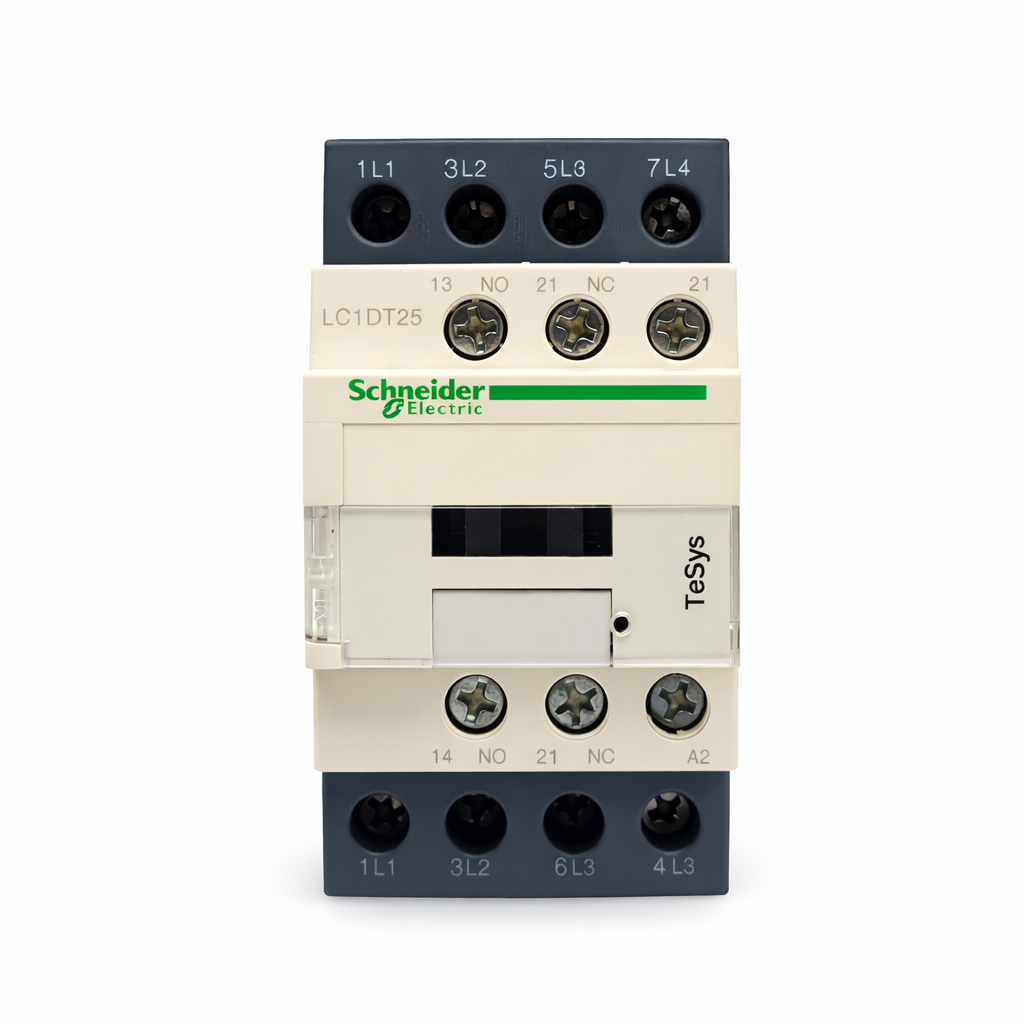

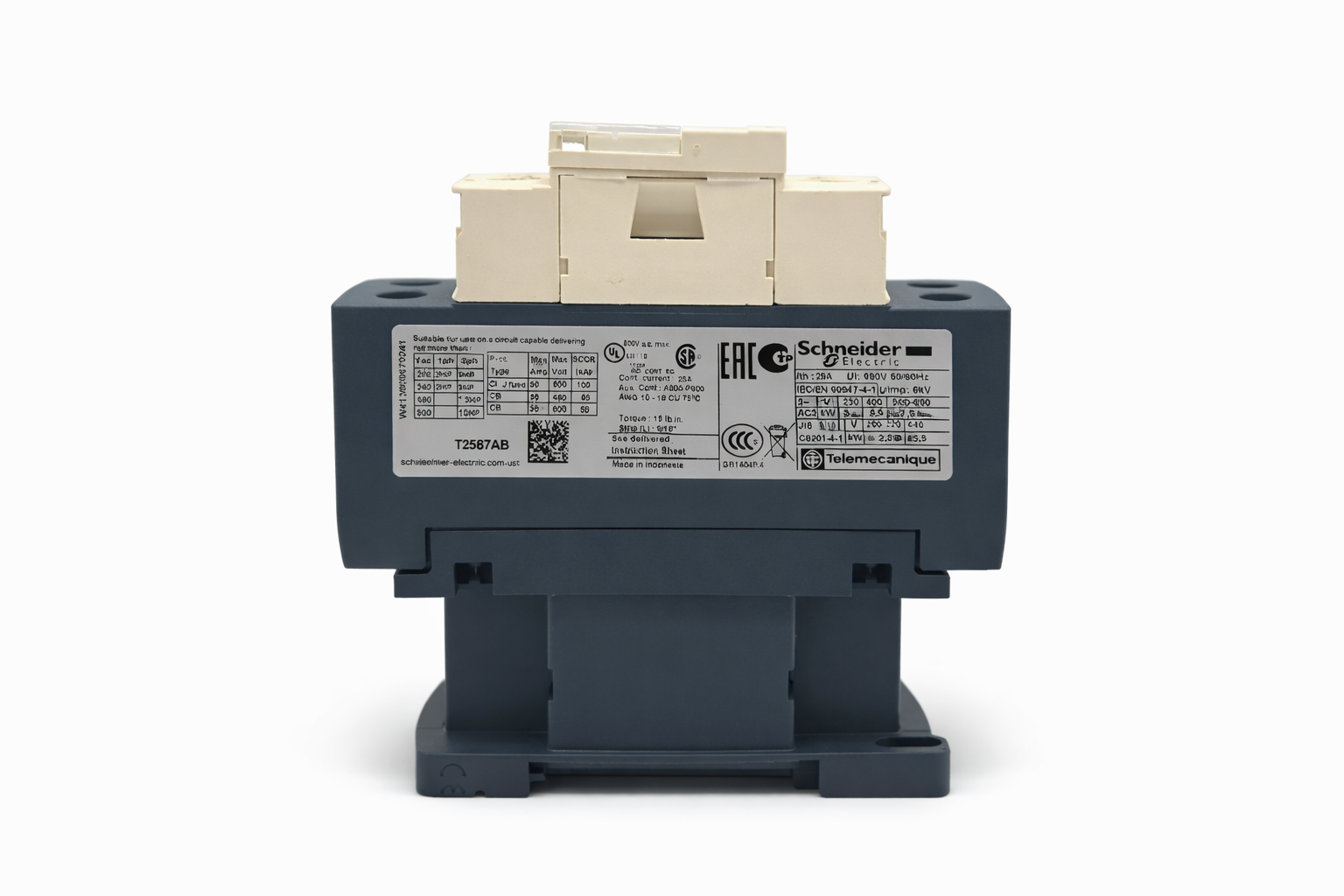

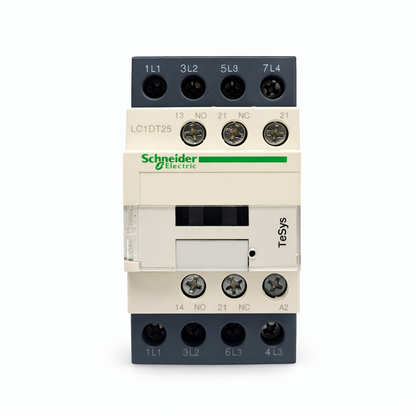

LC1DT25 Schneider Electric TeSys D 25A 4-Pole Contactor 4NO Industrial Control

Description:

• Genuine Schneider Electric TeSys D / TeSys Deca IEC contactor
• Part number family: LC1DT25
• Provides 4 Normally Open (4 NO) power poles
• Rated operational current of 25A at up to 440VAC under AC-1 utilization
• Designed primarily for resistive load switching, heating, lighting, and general industrial control applications
• Rated power circuit operational voltage up to 690VAC
• Includes 1 NO + 1 NC auxiliary contacts
• Screw-clamp terminal design provides secure industrial wiring connections
• Suitable for DIN rail or panel mounting
• Compact TeSys D design integrates easily into industrial control panels
• Coil voltage depends on the complete catalog number suffix, such as B7, G7, M7, P7, BD, or FD; verify the label before listing a specific coil voltage
• Ideal for industrial automation, HVAC, heating systems, lighting control, resistive loads, OEM equipment, and control panels.

Specifications:

• Manufacturer: Schneider Electric
• Part Number: LC1DT25
• Product Family: TeSys D / TeSys Deca
• Product Type: IEC Contactor
• Number of Poles: 4
• Main Contact Configuration: 4 NO
• Rated Operational Current: 25A
• Utilization Category: AC-1
• Rated Current: 25A at ≤440VAC AC-1
• Rated Operational Voltage: Up to 690VAC
• Conventional Free-Air Thermal Current: 25A
• Auxiliary Contacts: 1 NO + 1 NC
• Rated Impulse Withstand Voltage: 6 kV
• Mounting: DIN Rail / Panel
• Terminal Type: Screw Clamp
• Typical Power Terminal Wire Range:
  • Stranded without ferrule: #18–10 AWG
  • Stranded with ferrule: #18–10 AWG
  • Solid conductor: #18–8 AWG
• Applications:
  • Resistive Load Switching
  • Heating Equipment
  • Lighting Control
  • HVAC Equipment
  • Industrial Control Panels
  • Machine Automation
  • OEM Equipment

Important Coil Information:

• LC1DT25 alone does not identify the coil voltage
• Examples include:
  • LC1DT25B7 – 24VAC
  • LC1DT25G7 – 120VAC
  • LC1DT25P7 – 230VAC
  • LC1DT25BL – 24VDC
