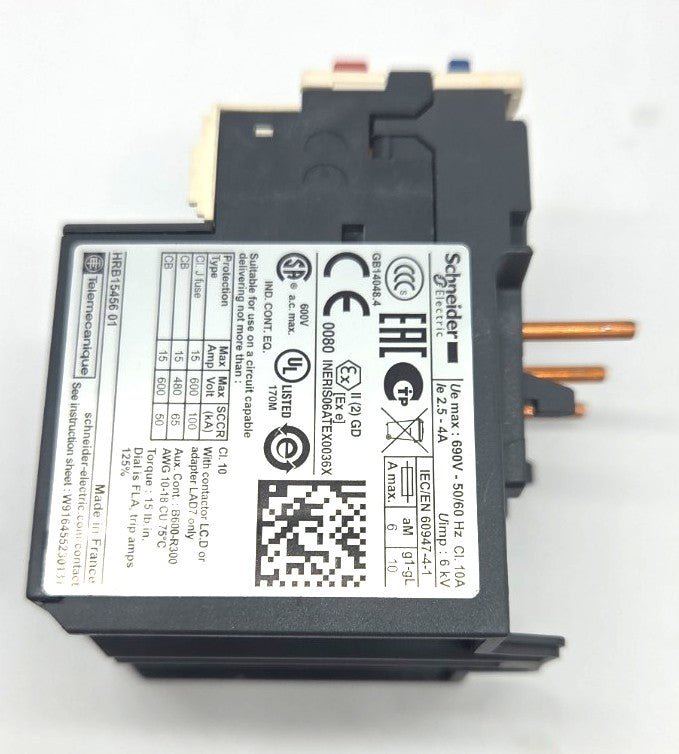

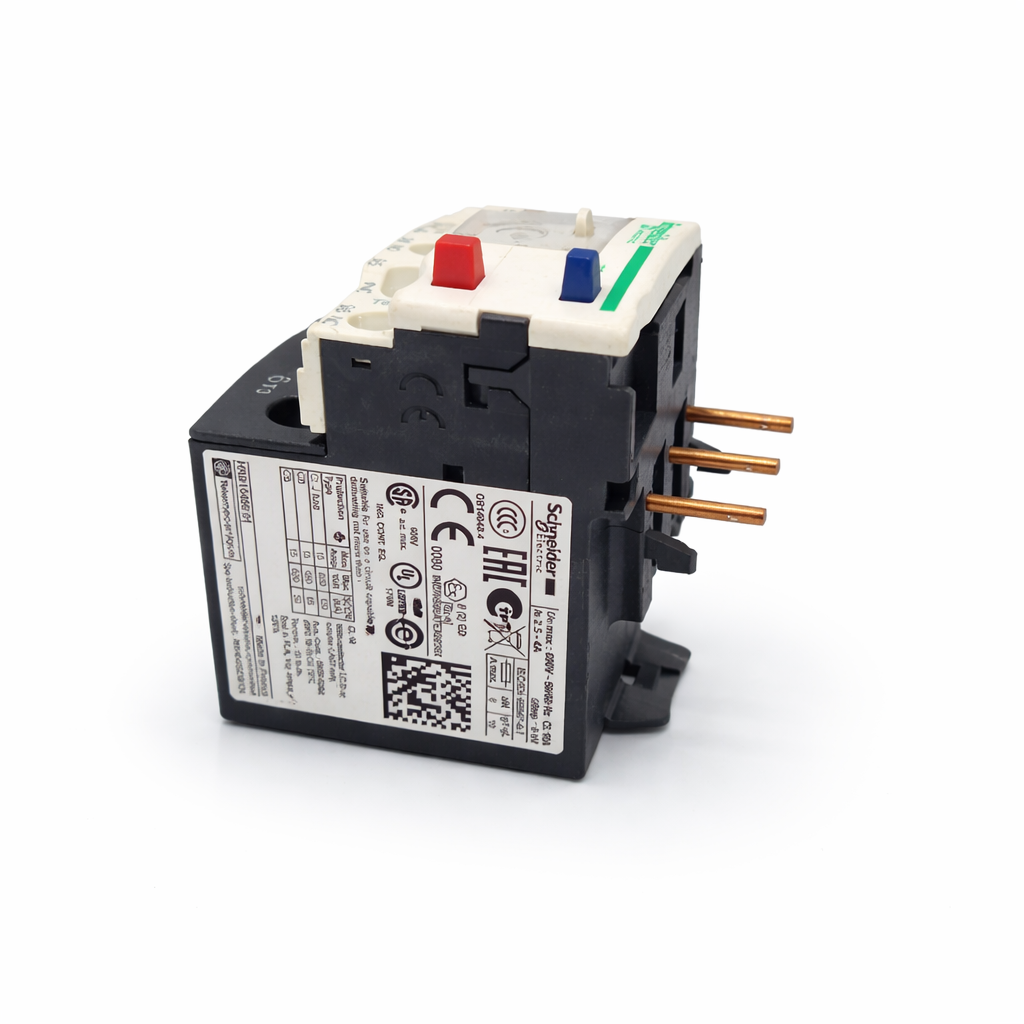

Schneider Electric LRD08 Thermal Overload Relay 2.5-4A TeSys LRD Motor Protection

Description

The Schneider Electric LRD08 thermal overload relay is designed to provide reliable motor protection for industrial control systems. Part of the TeSys LRD series, this overload relay protects motors from overload and phase failure conditions, helping extend motor life and prevent equipment damage.

The LRD08 relay features an adjustable current range of 2.5 to 4 amps and is designed for direct mounting with Schneider Electric TeSys contactors. It is commonly used in motor starters, industrial automation panels, machinery control systems, and electrical distribution applications.

Its compact design, durable construction, and easy adjustment make it a trusted solution for motor protection in industrial environments.

Key Specifications

Manufacturer: Schneider Electric
Part Number (MPN): LRD08
Series: TeSys LRD
Product Type: Thermal Overload Relay
Current Range: 2.5 – 4 A
Voltage Rating: Up to 690 V
Frequency: 50 / 60 Hz
Trip Class: Class 10A
Mounting: Direct mount on contactor
Application: Motor overload protection in industrial control systems
