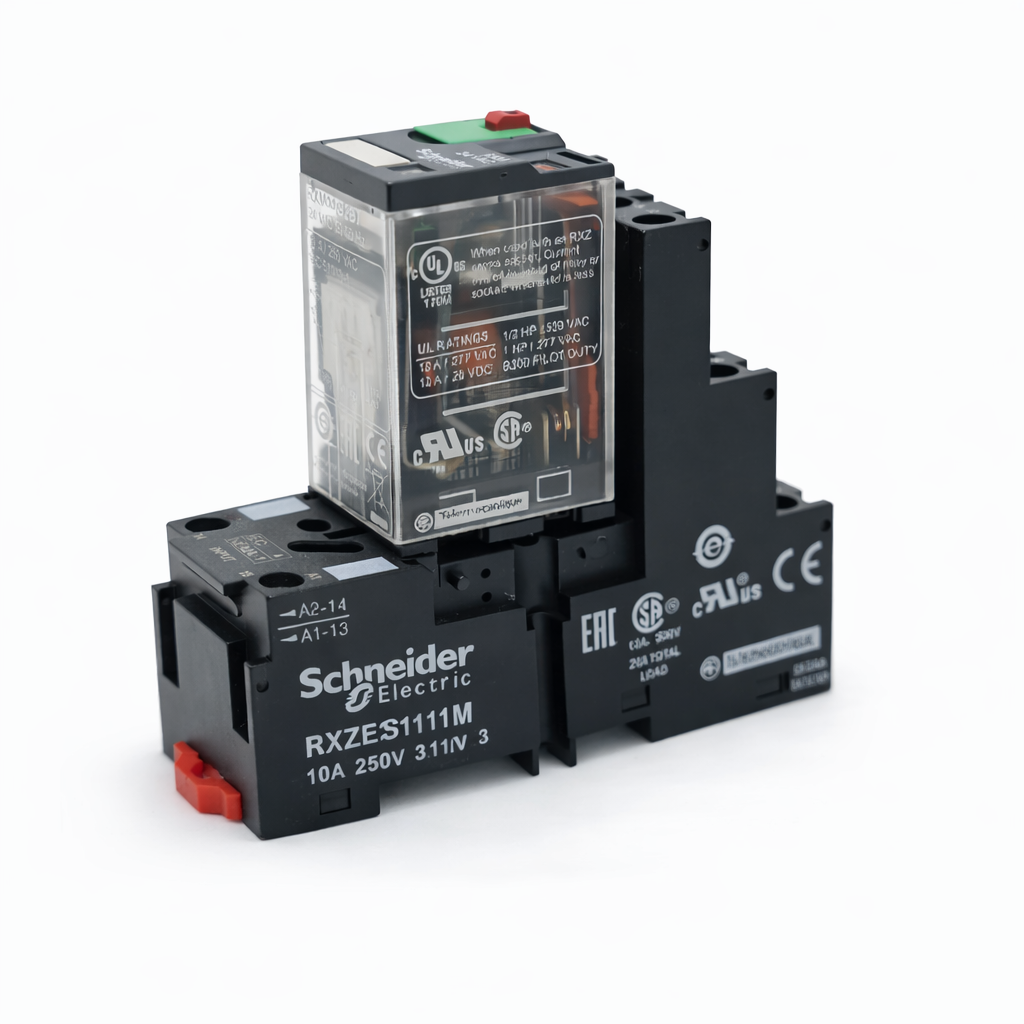

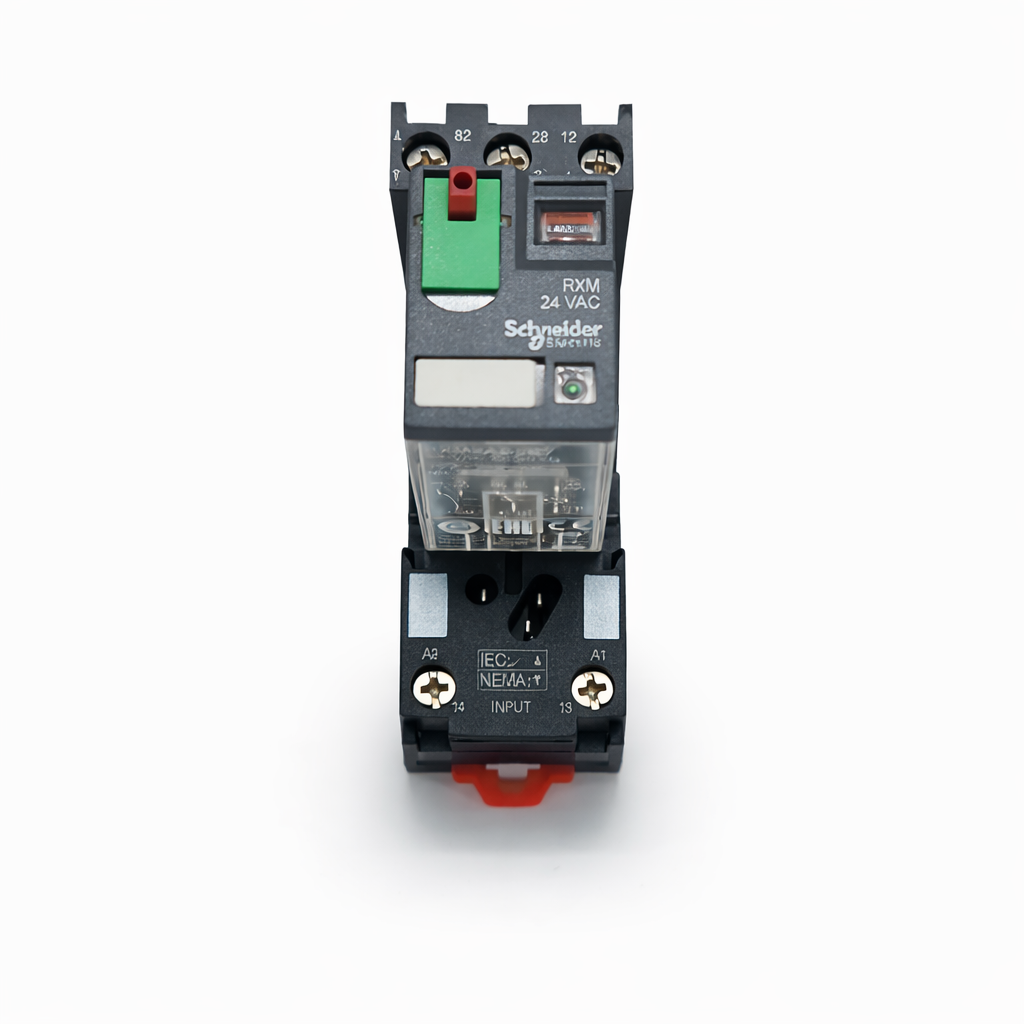

RXM2AB2B7 Schneider Electric Zelio 24VAC 12A 2CO Plug-In Relay with RXZE2S111M Socket Base

Description:

• Genuine Schneider Electric plug-in relay and socket base package for industrial automation and control applications
• Includes RXM2AB2B7 miniature electromechanical relay and RXZE2S111M socket base
• Relay features 2 changeover (2CO / DPDT) contacts for flexible control circuit switching
• 24 VAC, 50/60 Hz coil voltage
• Rated up to 12 A resistive load on the relay contacts
• Built-in LED status indicator provides quick visual confirmation of coil energization
• Features a lockable test button and mechanical contact position indicator
• Plug-in construction allows fast relay replacement without disturbing field wiring
• Socket base provides screw-terminal connections for industrial control-panel wiring
• Ideal for PLC interfaces, motor control circuits, machine automation, HVAC controls, control panels, and OEM equipment
• Note: Schneider identifies RXM2AB2B7 specifically as a 24 VAC relay, not a 24 VAC/DC coil model.

Specifications:

• Manufacturer: Schneider Electric
• Relay Part Number (MPN): RXM2AB2B7
• Socket Part Number (MPN): RXZE2S111M
• Product Family: Zelio / Harmony Electromechanical Relays
• Product Type: Plug-In Control Relay with Socket
• Relay Type: Miniature Electromechanical Relay
• Contact Configuration: 2CO / DPDT
• Coil Voltage: 24 VAC
• Coil Frequency: 50/60 Hz
• Conventional Enclosed Thermal Current: 12 A
• Resistive Rated Load:
  • 12 A @ 250 VAC
  • 12 A @ 28 VDC
• Maximum Switching Voltage: 250 VAC
• Status Indicator: LED
• Control Type: Lockable Test Button
• Contact Material: AgNi
• Rated Impulse Withstand Voltage: 4 kV
• Relay Pin Type: Flat
• Installation: Plug-In
• Applications:
  • Industrial Automation
  • PLC Interface Circuits
  • Machine Controls
  • Motor Control
  • HVAC Controls
  • Control Panels
  • OEM Equipment

Important Compatibility Note:

• Schneider's current documentation lists RXZE2S111M for RXM3 relays, while RXM2 relays are normally paired with other RXZE2 socket configurations. If you are physically selling RXM2AB2B7 + RXZE2S111M together, I recommend listing them as the exact pictured package but not claiming factory-specified compatibility unless you have confirmed the fit on your units
