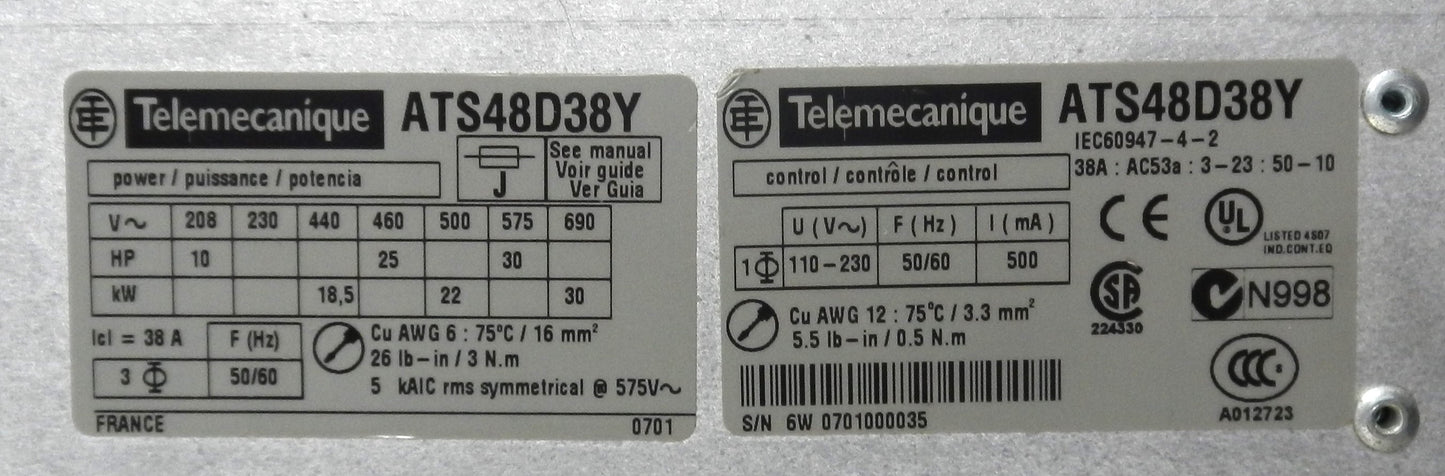

ATS48D38Y Schneider Electric TeSys Altistart 48 Soft Starter 34A 208–690VAC 7.5–30kW 3-Phase

Description:

• Genuine Schneider Electric Telemecanique Altistart 48 soft starter for three-phase asynchronous (induction) motors
• Rated 34A (factory setting) with 38A standard application current and 32A severe-duty application current
• Supports 208–690 VAC, 50/60 Hz three-phase power systems
• Suitable for motors from 7.5 kW to 30 kW (10–40 HP depending on voltage and duty)
• Advanced torque control technology reduces mechanical stress and limits starting current for smooth motor acceleration
• Built-in motor thermal protection, programmable acceleration and deceleration ramps, and integrated diagnostics
• Integrated Modbus communication port for easy system integration
• Designed for pumps, fans, compressors, conveyors, HVAC systems, crushers, and other industrial machinery
• IP20 enclosure for installation inside electrical control panels
• Discontinued by Schneider Electric and replaced by the ATS480D38Y Altistart 480 Soft Starter.

Specifications:

• Manufacturer Name: Schneider Electric
• Brand: Telemecanique / Altistart 48
• Part Number (MPN): ATS48D38Y
• Product Series: Altistart 48
• Product Type: Soft Starter
• Motor Type: Three-Phase Asynchronous (Induction) Motor
• Rated Operational Current:
  • 34 A (Factory Setting)
  • 38 A (Standard Applications)
  • 32 A (Severe Applications)
• Supply Voltage: 208–690 VAC (-15% / +10%)
• Supply Frequency: 50/60 Hz
• Motor Power:
  • 7.5–30 kW
  • 10–40 HP (depending on voltage and application)
• Utilization Category: AC-53A
• Control Supply Voltage: 110–230 VAC
• Power Dissipation:
  • 99 W (Typical Standard Application)
• Degree of Protection: IP20
• Cooling: Integrated Heat Sink
• Communication: Modbus
• Functions:
  • Torque Controlled Starting
  • Current Limiting
  • Soft Stop
  • Motor Thermal Protection
  • Programmable Acceleration & Deceleration
  • Fault Diagnostics
  • External Bypass Support
• Operating Temperature: -10°C to +40°C (without derating)
• Certifications:
  • UL Listed
  • CSA
  • CE
  • IEC 60947-4-2
• Lifecycle Status: Discontinued
• Recommended Replacement: ATS480D38Y.

Dimensions:

• Height: 275 mm (10.83 in)
• Width: 160 mm (6.30 in)
• Depth: 190 mm (7.48 in).

Weight:

• Approximate Weight: 4.9 kg (10.8 lb).
