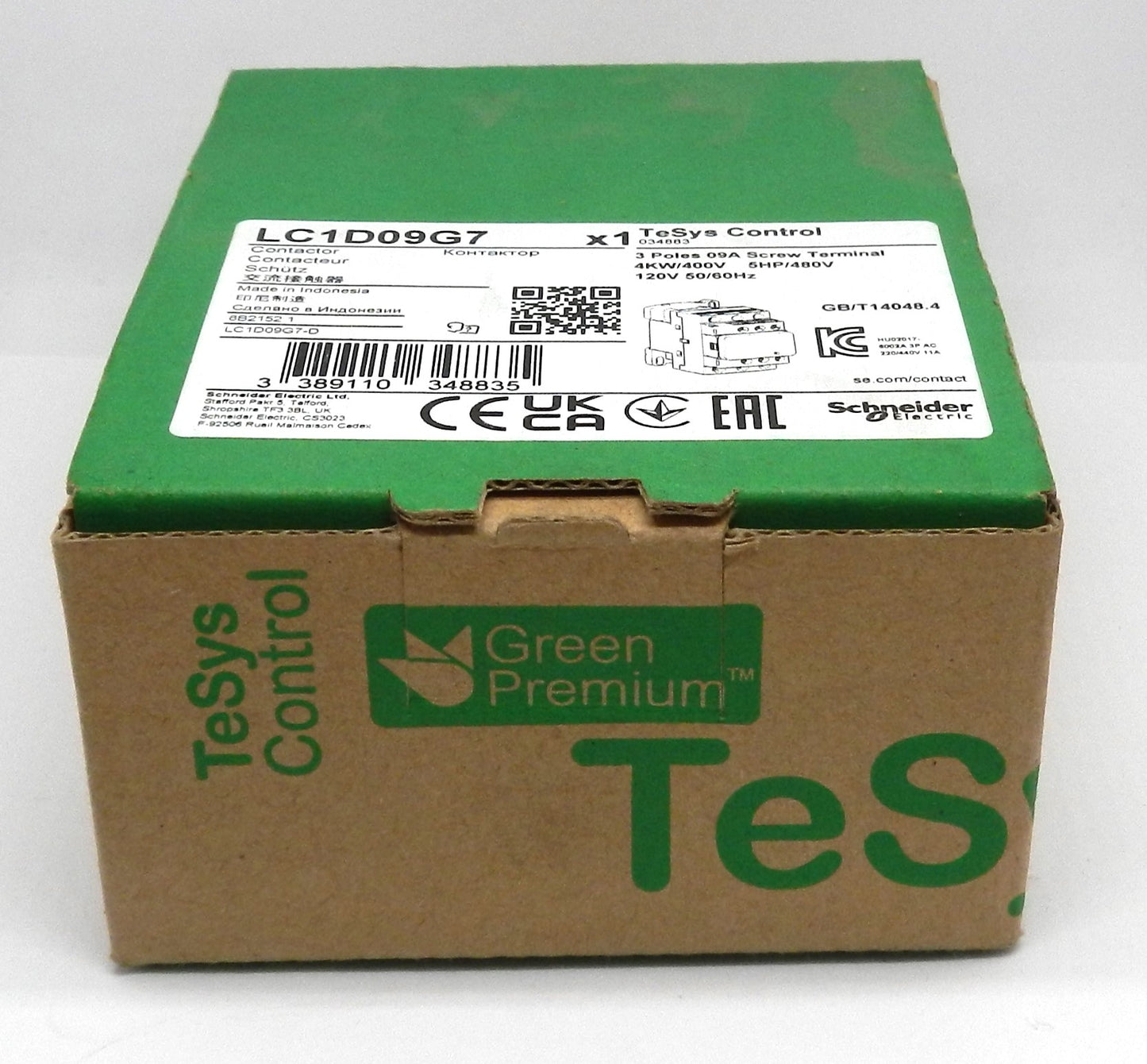

LC1D09G7 Schneider Electric TeSys D Contactor 3-Pole 9A 120V AC Coil 1NO+1NC Auxiliary IP20

$199.99 CAD

Sale Sold out

STYLE New

Description:

Genuine Schneider Electric TeSys D non-reversing contactor for industrial motor control and automation applications
Rated for 9A AC-3 motor loads and 25A AC-1 resistive loads
3-pole (3 NO) main contacts with 1 Normally Open + 1 Normally Closed built-in auxiliary contacts
120 VAC 50/60 Hz coil for reliable switching performance
Rated for 5 HP @ 460/480 VAC and 7.5 HP @ 575/600 VAC three-phase motors
Compact DIN rail or panel mount design with screw clamp terminals for easy installation
IP20 finger-safe protection with integrated protective cover
High short-circuit current rating of 100 kA SCCR when used with the appropriate protective device
Ideal for motor starters, pumps, compressors, conveyors, HVAC equipment, packaging machinery, and industrial control panels
Manufactured by Schneider Electric for dependable industrial motor control.

Manufacturer Name: Schneider Electric
Part Number (MPN): LC1D09G7
Product Series: TeSys D (TeSys Deca)
Product Type: IEC Magnetic Contactor
Contactor Type: Non-Reversing
Number of Poles: 3-Pole (3 NO)
Auxiliary Contacts: 1 NO + 1 NC
Rated Operational Current (AC-3): 9 A
Rated Thermal Current (AC-1): 25 A
Coil Voltage: 120 VAC, 50/60 Hz
Rated Operational Voltage: Up to 690 VAC
Motor Rating:
- 2 HP @ 200/208 VAC, 3-Phase
- 2 HP @ 230/240 VAC, 3-Phase
- 5 HP @ 460/480 VAC, 3-Phase
- 7.5 HP @ 575/600 VAC, 3-Phase
Control Circuit: AC
Terminal Type: Screw Clamp
Mounting Type: DIN Rail or Panel Mount
Protection Rating: IP20
SCCR: 100 kA
Operating Temperature: -40°C to +60°C
Certifications: UL Listed, CSA Certified, CE, IEC 60947
Application: Motor Starters, Pumps, Compressors, Conveyors, HVAC Systems, Industrial Machinery, OEM Equipment, Industrial Automation.
