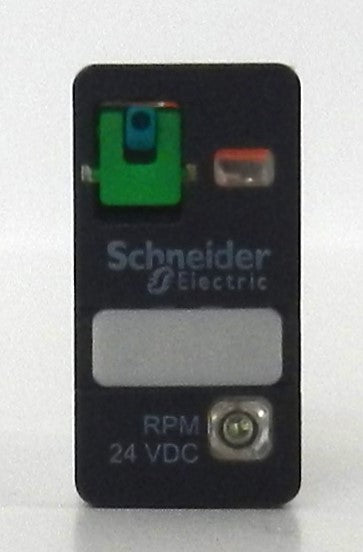

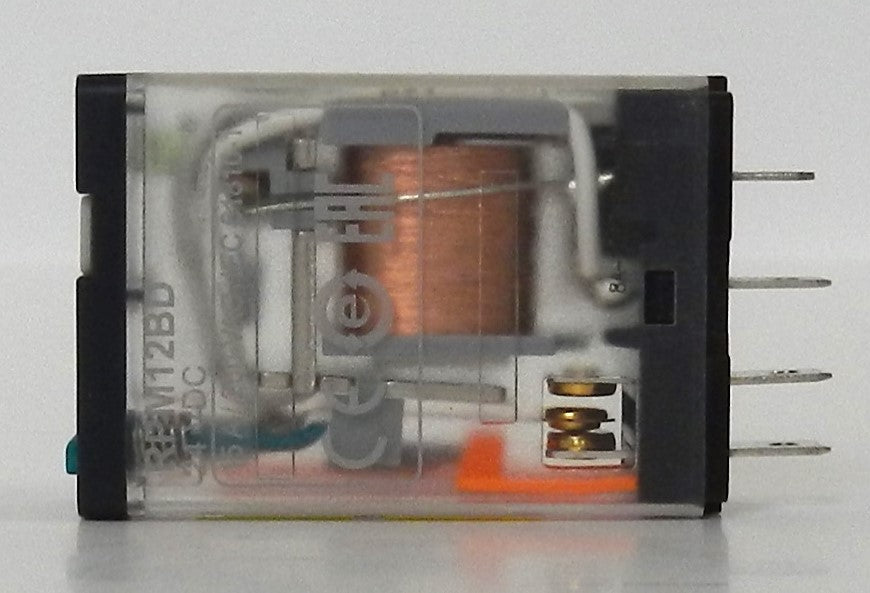

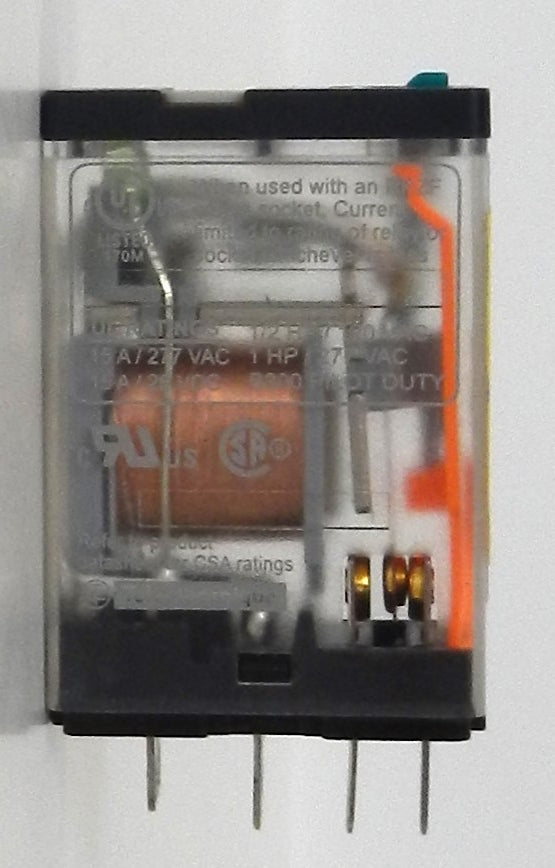

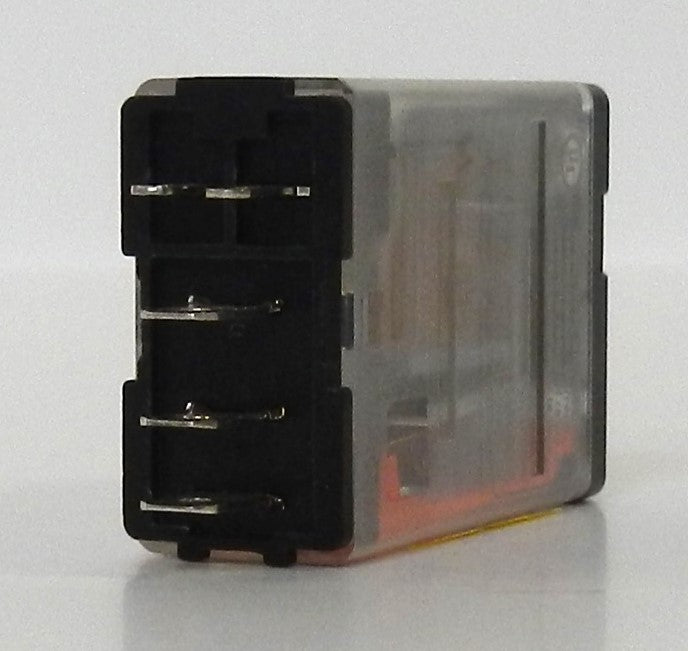

RPM12BD Schneider Electric Zelio Plug-In Relay 24VDC Coil SPDT 15A with LED & Test Button

$14.99 CAD

Sale Sold out

Style NEW

Description:

Genuine Schneider Electric Zelio plug-in electromechanical relay for industrial control and automation applications
Features 1 Changeover Contact (SPDT / 1CO) rated at 15A
24 VDC coil with built-in LED status indicator for easy visual monitoring
Equipped with a lockable test button for manual testing and maintenance without energizing the coil
Plug-in design enables fast installation and simple replacement using compatible Zelio relay sockets
Silver Nickel (AgNi) contacts provide reliable switching performance and long electrical life
Compact industrial design saves panel space while delivering dependable switching capability
Suitable for industrial automation, PLC systems, HVAC, OEM machinery, process control, motor control, and electrical control panels
Part of the Schneider Electric Harmony Zelio RPM relay family.

Manufacturer Name: Schneider Electric
Part Number (MPN): RPM12BD
Product Series: Harmony Zelio RPM
Product Type: Plug-In Electromechanical Relay
Contact Configuration: 1 Changeover (SPDT / 1CO)
Coil Voltage: 24 VDC
Contact Rating:
- 15 A @ 250 VAC (NO)
- 15 A @ 28 VDC (NO)
- 7.5 A @ 250 VAC (NC)
- 7.5 A @ 28 VDC (NC)
Maximum Switching Voltage:
- 250 VAC
- 28 VDC
Contact Material: Silver Nickel (AgNi)
Conventional Thermal Current: 15 A
Coil Power Consumption: 700 mW
Coil Resistance: 450 Ω
Operate Time: 20 ms
Release Time: 20 ms
Status Indicator: LED
Test Button: Lockable
Mounting Type: Plug-In Socket
Protection Rating: IP40
Operating Temperature: -40°C to +55°C
Rated Insulation Voltage:
- 250 V (IEC)
- 300 V (UL/CSA)
Rated Impulse Withstand Voltage: 4 kV
Applications:
- PLC Systems
- Industrial Automation
- Process Control
- HVAC Systems
- Motor Control
- OEM Equipment
- Control Panels
