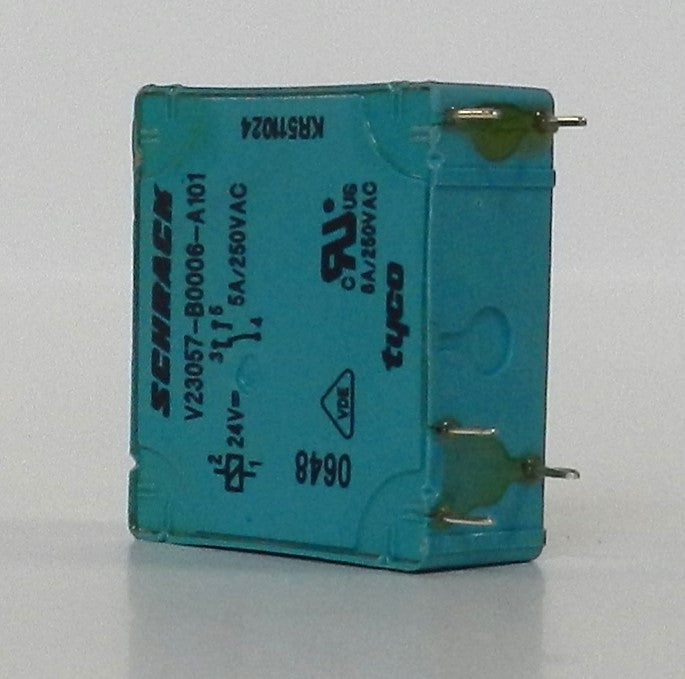

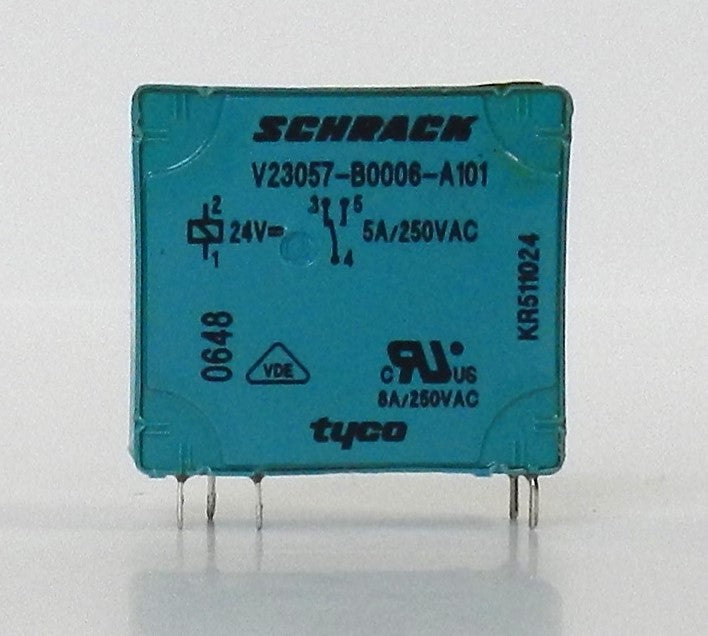

V23057-B0006-A101 Schrack PCB Power Relay SPDT 24VDC 5A Through-Hole

Description:

• Genuine Schrack / TE Connectivity general-purpose PCB power relay for industrial control and electronic switching applications
• Features SPDT (1 Form C) contact configuration with 5A switching capacity
• Operates with a 24 VDC non-latching coil
• Through-hole PCB mounting for secure installation on printed circuit boards
• Silver nickel (AgNi) contacts provide reliable switching performance and long service life
• Suitable for switching resistive and inductive loads in industrial automation, HVAC, power supplies, instrumentation, and control systems
• Compact sealed relay design with fast operate and release times
• Maximum switching voltage up to 400 VAC
• Obsolete / Pending Obsolescence; commonly used for maintenance and replacement of legacy equipment.

Specifications:

• Manufacturer Name: Schrack / TE Connectivity
• Part Number (MPN): V23057-B0006-A101
• Product Series: V23057 (Schrack)
• Product Type: PCB Power Relay
• Contact Configuration: SPDT (1 Form C)
• Number of Poles: 1
• Contact Rating: 5 A
• Coil Voltage: 24 VDC
• Coil Type: Non-Latching
• Coil Resistance: 1.2 kΩ
• Coil Current: 20 mA
• Coil Power Consumption: 480 mW
• Contact Material: Silver Nickel (AgNi)
• Maximum Switching Voltage: 400 VAC
• Maximum Contact Voltage: 250 VAC
• Mounting Type: Through Hole (PCB)
• Termination Style: PC Pins
• Operate Time: 7 ms
• Release Time: 3 ms
• Operating Temperature: -40°C to +70°C
• Environmental Protection: RT III (Wash Tight)
• Certifications:
  • cURus
  • VDE
  • RoHS Compliant
• Applications:
  • Industrial Automation
  • PLC Systems
  • HVAC Controls
  • Power Supplies
  • Instrumentation
  • Process Control
  • Electronic Equipment

Dimensions:

• Compact PCB relay form factor
• Pin Spacing: 2.5 mm
• Through-hole mounting configuration.

Weight:

• Approximate Weight: 14 g (0.49 oz).
