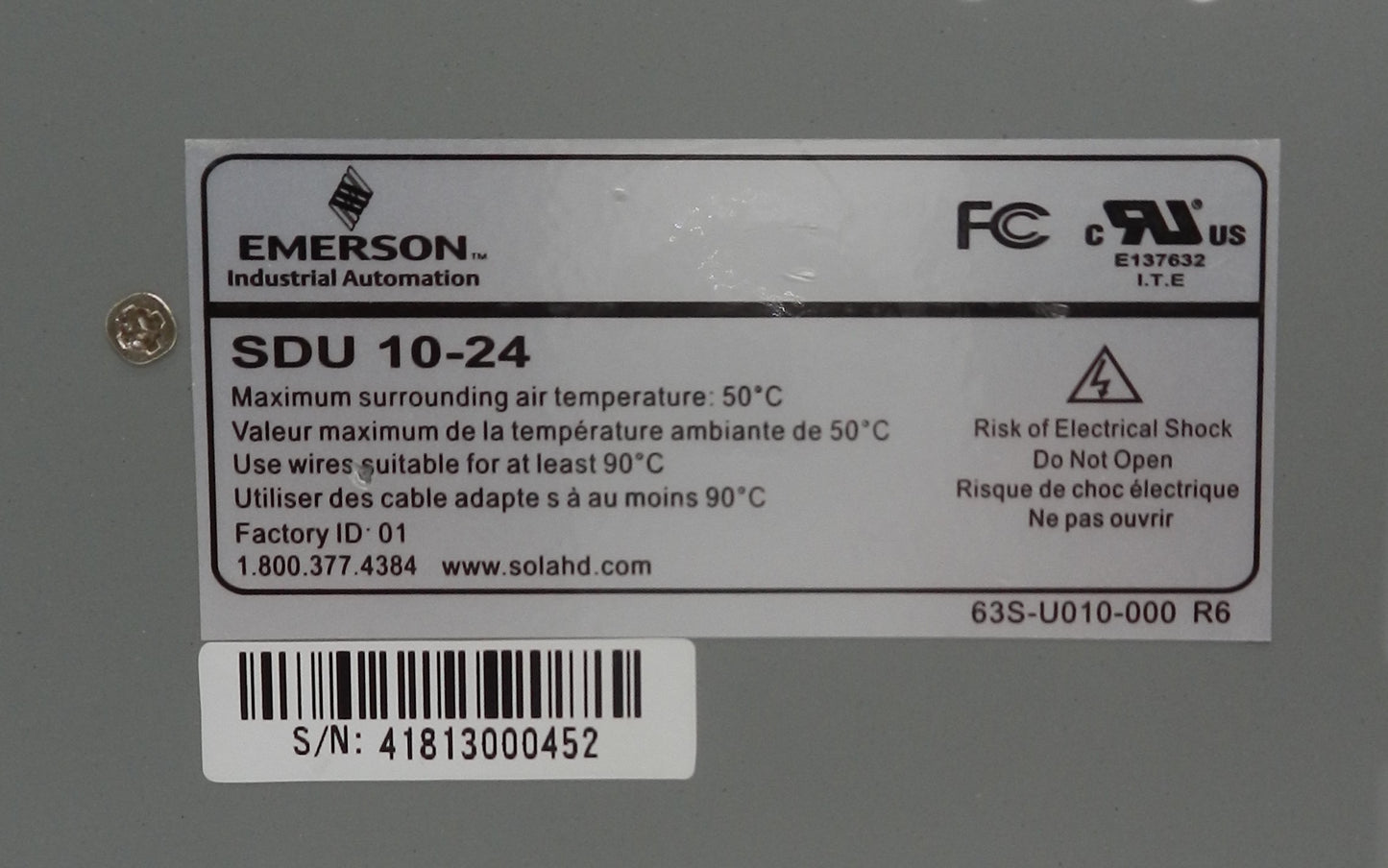

SDU 10-24 Emerson SolaHD 24VDC 10A DIN Rail DC UPS Power Module 240W (Battery Required)

Description:

• Genuine Emerson SolaHD industrial DC Uninterruptible Power Supply (UPS) power module
• Provides reliable 24 VDC backup power for PLCs, HMIs, industrial PCs, communication equipment, and control systems during power interruptions
• Delivers 10A continuous output with 240W maximum output power
• Designed for 24 VDC DIN rail industrial control systems
• Battery module required for UPS operation (compatible with SDU 24-BAT or SDU 24-BATEM battery modules)
• Microprocessor-controlled design with intelligent battery management and automatic self-test
• High efficiency operation (greater than 95% in normal mode)
• LED status indicators and dry-contact relay outputs provide remote monitoring and diagnostics
• User-expandable battery capability allows extended backup runtime
• Rugged fanless design with DIN rail or chassis mounting for industrial environments
• Ideal for PLC systems, industrial automation, packaging machinery, material handling, water treatment, manufacturing, and OEM equipment.

Specifications:

• Manufacturer Name: Emerson SolaHD
• Part Number (MPN): SDU 10-24
• Product Series: SDU DC UPS
• Product Type: Industrial DC UPS Power Module
• Nominal Input Voltage: 24 VDC
• Input Voltage Range: 22.5–30 VDC
• Nominal Output Voltage: 24 VDC
• Output Voltage Range: 22.5–30 VDC
• Rated Output Current: 10 A
• Rated Output Power: 240 W (240 VA)
• Current Limit: 12 A
• Efficiency:
  • >95% Normal Mode
  • >93% Battery Mode
• Battery Compatibility:
  • SDU 24-BAT
  • SDU 24-BATEM
• Typical Backup Time (Full Load): 14 minutes (with one compatible battery module)
• Recharge Time: Approximately 8 hours (one battery module)
• Protection Features:
  • Overload Protection
  • Short Circuit Protection
  • Reverse Polarity Protection
  • Battery Overvoltage Protection
  • Overtemperature Protection
• Relay Outputs:
  • On Battery
  • Battery Fault
  • Low Battery
• Status Indicators: LED Indicators
• Mounting Type:
  • 35 mm DIN Rail
  • Chassis Mount
• Operating Temperature: -20°C to +50°C
• Protection Rating: IP20
• Certifications:
  • cULus
  • CE
  • UKCA
• Applications:
  • PLC Systems
  • Industrial Automation
  • Machine Control
  • Process Control
  • Industrial Networking
  • OEM Equipment
  • Packaging Machinery
  • Material Handling

Dimensions:

• Height: 124 mm (4.88 in)
• Width: 35 mm (1.38 in)
• Depth: 122 mm (4.80 in).

Weight:

• Approximate Weight: 0.40 kg (0.88 lb).
