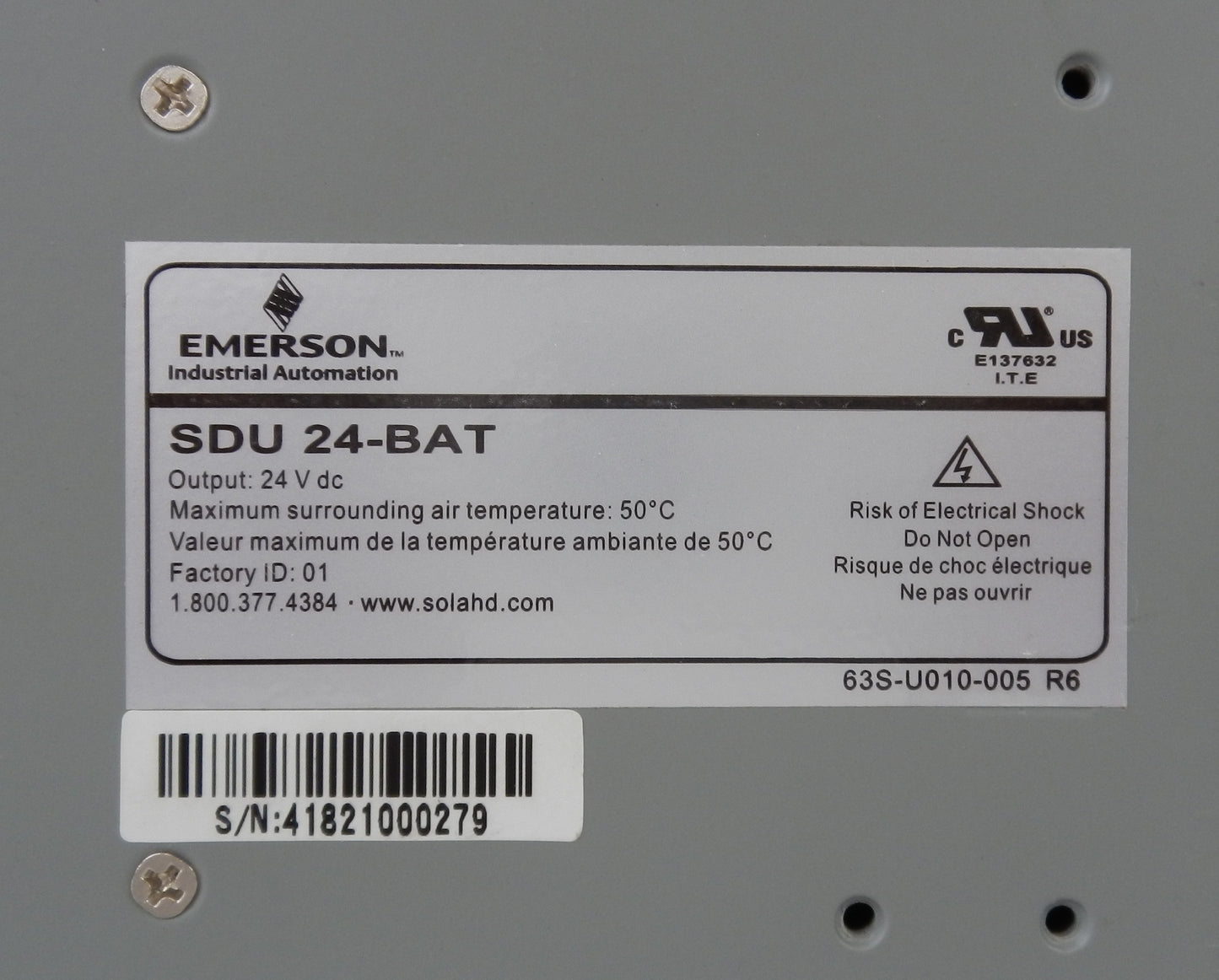

SDU 24-BAT Emerson SolaHD 24VDC External Battery Module for SDU DC UPS

Description:

• Genuine Emerson SolaHD external battery module designed for SDU Series DC Uninterruptible Power Supplies (UPS)
• Provides 24 VDC battery backup to extend runtime during power interruptions
• Compatible with SDU 10-24 and SDU 20-24 industrial DC UPS systems
• Features user-replaceable sealed batteries for simplified maintenance and reduced downtime
• Includes 1 ft polarized battery cable with Powerpole connectors for quick installation
• DIN rail or chassis mount design for flexible industrial control panel installation
• Rugged industrial construction for use in harsh manufacturing and automation environments
• Ideal for PLC systems, industrial control panels, SCADA systems, process automation, machine control, and OEM equipment
• Designed to maintain continuous DC power during outages, brownouts, and voltage disturbances.

Specifications:

• Manufacturer Name: Emerson SolaHD
• Part Number (MPN): SDU 24-BAT
• Product Series: SDU DC UPS
• Product Type: External Battery Module
• Nominal Battery Voltage: 24 VDC
• Protection: 30 A Fuse
• Charging Current: 0.5 A
• Battery Type: Replaceable Sealed Batteries
• Terminal Connector Type: Polarized Powerpole Connectors
• Included Accessory: 1 ft Polarized Battery Cable
• Enclosure Rating: IP20
• Mounting:
  • 35 mm DIN Rail (TS35/7.5 or TS35/15)
  • Chassis Mount
• Operating Temperature: -20°C to +50°C
• Storage Temperature: -20°C to +40°C
• Humidity: 95% Non-Condensing
• Compatible UPS Models:
  • SDU 10-24
  • SDU 20-24
• Applications:
  • Industrial UPS Systems
  • PLC Backup Power
  • Control Panels
  • SCADA Systems
  • Machine Automation
  • Process Control
  • OEM Equipment

Dimensions:

• Height: 124 mm (4.88 in)
• Width: 210 mm (8.27 in)
• Depth: 116 mm (4.55 in)

Weight:

• Approximate Weight: 5.33 kg (12.0 lb).
