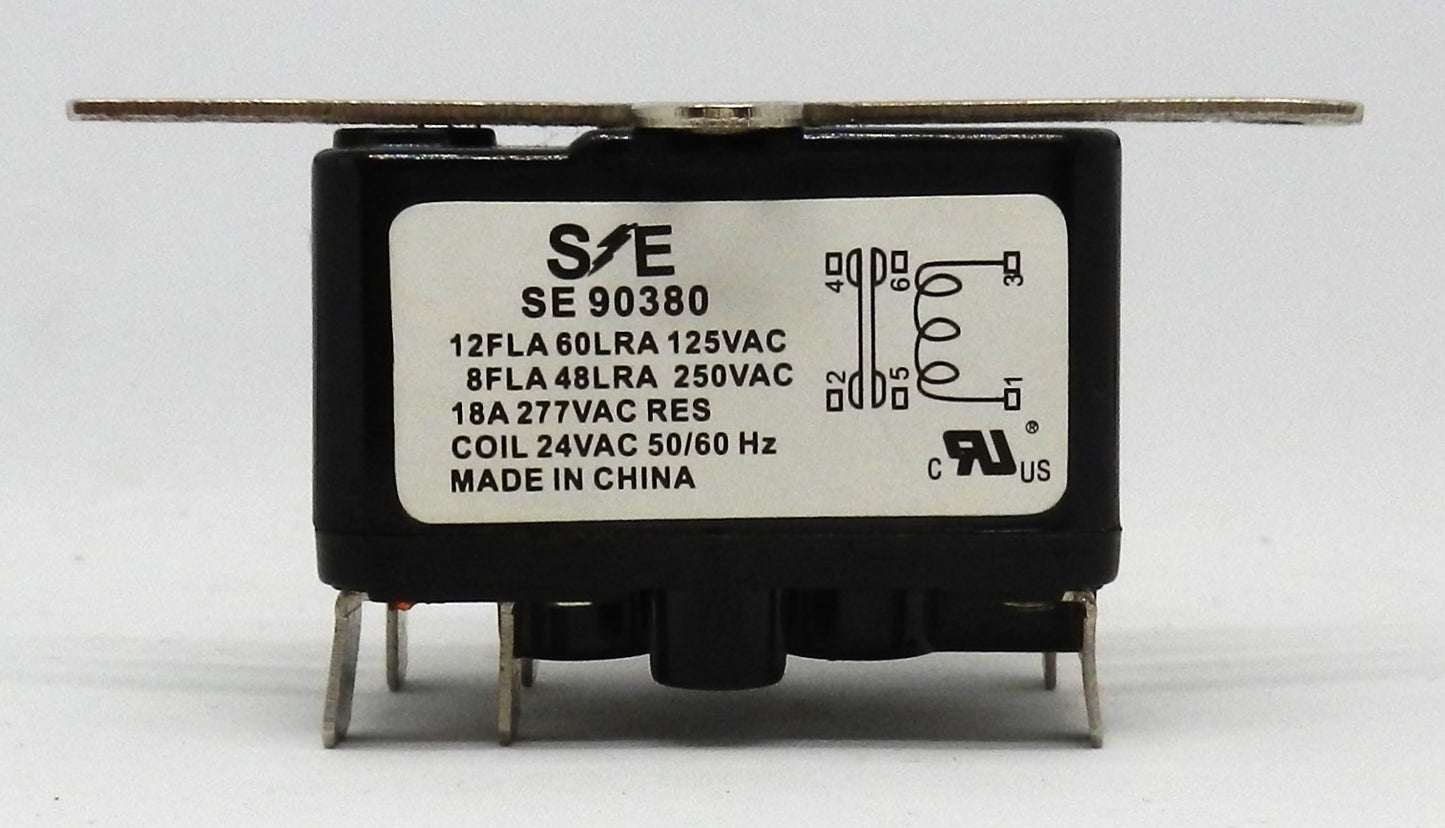

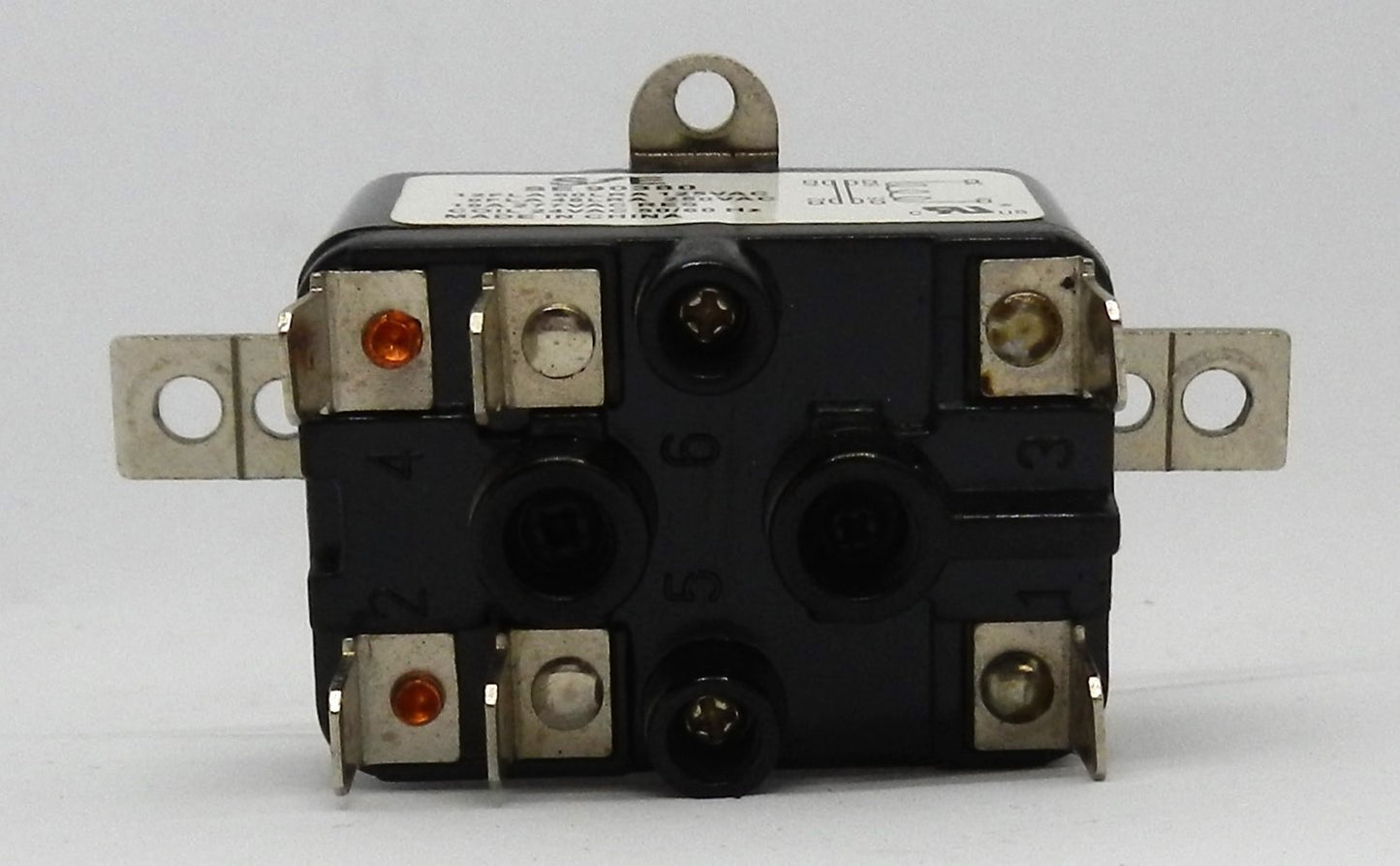

SE90380 SME 90-380 Fan Relay 24VAC SPNO/SPNC Heavy Duty Enclosed Relay

Description:

• Genuine SME heavy-duty fan relay for HVAC, refrigeration, and industrial control applications
• Part Number SE90380, equivalent to the widely used 90-380 fan relay
• Features a 24 VAC, 50/60 Hz control coil
• SPNO/SPNC (Single Pole Normally Open / Single Pole Normally Closed) contact configuration for flexible switching applications
• Totally enclosed design provides reliable performance in demanding environments
• Designed for switching fan motors, compressors, blowers, heating equipment, and general-purpose electrical loads
• Quick-connect terminals simplify installation and replacement
• Heavy-duty construction for dependable long-term operation
• Suitable for HVAC systems, refrigeration equipment, air handlers, furnaces, condensers, and OEM equipment
• Replaced by Lennox 20P88 in certain HVAC applications.

Specifications:

• Manufacturer Name: SME
• Part Number (MPN): SE90380
• Alternate Part Number: 90-380
• Product Type: Fan Relay
• Relay Configuration: SPNO/SPNC
• Coil Voltage: 24 VAC
• Coil Frequency: 50/60 Hz
• Mounting Style: Screw Mounting Bracket
• Terminal Type: 1/4 in Quick Connect
• Contact Ratings:
  • 14 A FLA @ 120 VAC
  • 8 A FLA @ 208/240 VAC
  • 7 A FLA @ 277 VAC
  • 84 A LRA @ 120 VAC
  • 48 A LRA @ 208/240 VAC
  • 42 A LRA @ 277 VAC
• Relay Type: Heavy Duty Totally Enclosed Fan Relay
• Operating Temperature:
  • -20°C to +40°C
• Applications:
  • HVAC Systems
  • Fan Motors
  • Blowers
  • Air Handlers
  • Refrigeration Equipment
  • Heating Equipment
  • General Purpose Switching

Dimensions:

• Compact enclosed relay with screw-mount bracket for standard HVAC control panel installation.

Weight:

• Approximate Weight: 0.16 kg (0.35 lb).
