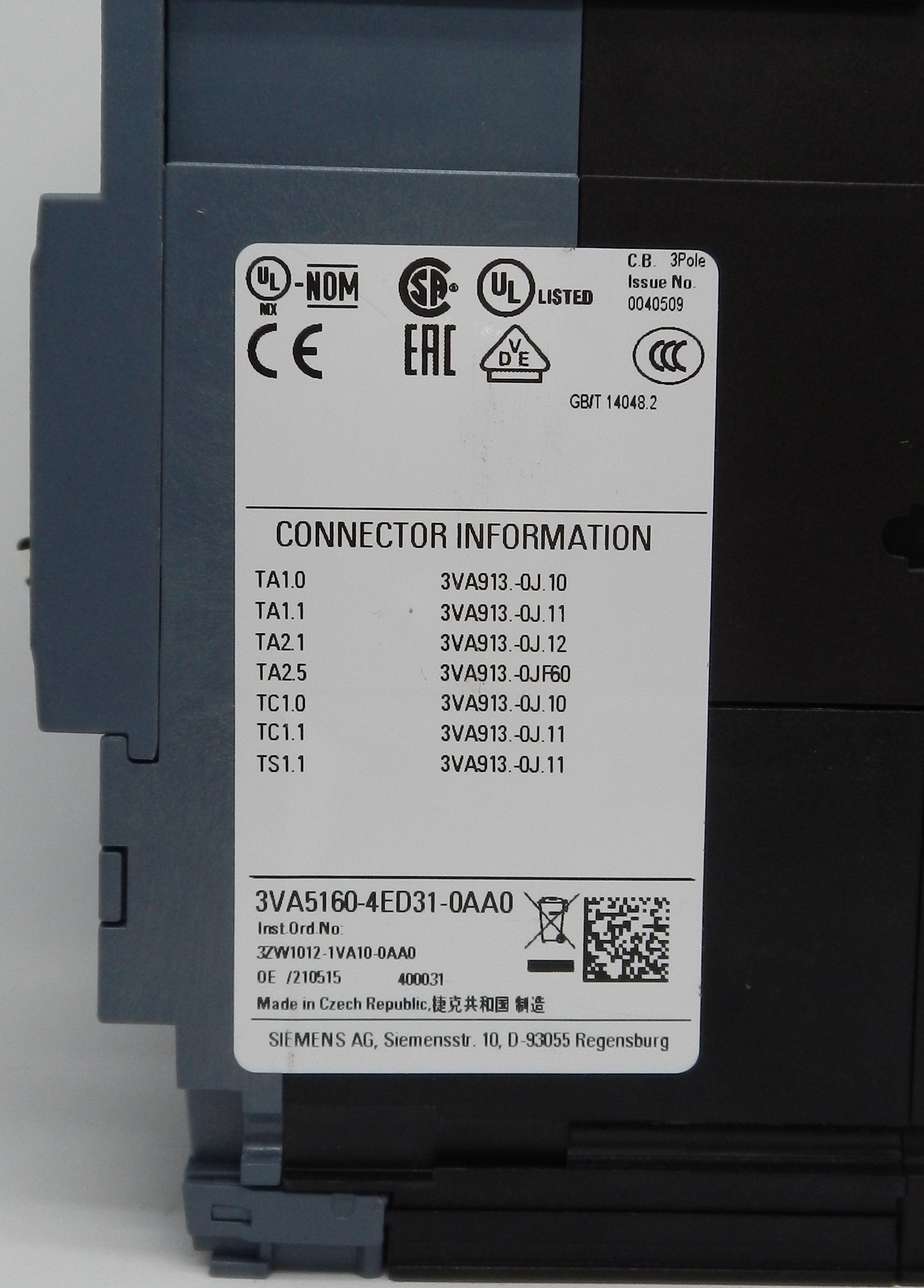

3VA5160-4ED31-0AA0 Siemens SENTRON 60A 3-Pole Molded Case Circuit Breaker TM210 25kA MCCB

Description:

• Genuine Siemens SENTRON 3VA5 molded case circuit breaker (MCCB) for industrial power distribution and equipment protection
• Rated 60 Amp, 3-Pole with thermal-magnetic (TM210) trip unit for dependable overload and short-circuit protection
• Frame Size 125 with Class S breaking capacity of 25 kA @ 480 VAC
• Fixed 60A long-time overload protection (Ir) and instantaneous trip at 10 × In (Ii)
• Designed for line protection in commercial and industrial electrical systems
• Suitable for AC systems up to 690 VAC and DC systems up to 500 VDC
• Compact molded case design with fixed mounting configuration
• HACR rated for heating, air conditioning, and refrigeration applications under UL 489
• Ideal for industrial control panels, switchboards, motor feeders, OEM equipment, machinery, and power distribution systems
• Supplied without lugs/connectors, allowing connection hardware to be selected separately.

Specifications:

• Manufacturer Name: Siemens
• Product Family: SENTRON 3VA5
• Part Number (MPN): 3VA5160-4ED31-0AA0
• UL Designation: SEAS
• Product Type: Molded Case Circuit Breaker (MCCB)
• Frame Size: 125
• Number of Poles: 3
• Rated Current: 60 A
• Trip Unit: TM210 Thermal-Magnetic
• Protection Functions: LI (Long-Time & Instantaneous)
• Long-Time Pickup (Ir): 60 A (Fixed)
• Instantaneous Pickup (Ii): 10 × In (Fixed)
• Interrupt Rating: 25 kA @ 480 VAC
• Rated Operational Voltage:
  • 690 VAC
  • 500 VDC
• Rated Insulation Voltage (Ui): 800 V
• Frequency: 50/60 Hz
• Mounting Type: Fixed
• Connection Style: Without Connection/Lugs
• HACR Rated: Yes
• Mechanical Life: 15,000 Operations
• Enclosure Rating: IP40
• Certifications:
  • UL Listed
  • CSA
  • CE
  • EAC

Dimensions:

• Height: 140 mm (5.51 in)
• Width: 76 mm (3.00 in)
• Depth: 94 mm (3.68 in)

Weight:

• Approximate Weight: 0.94 kg (2.07 lb).
