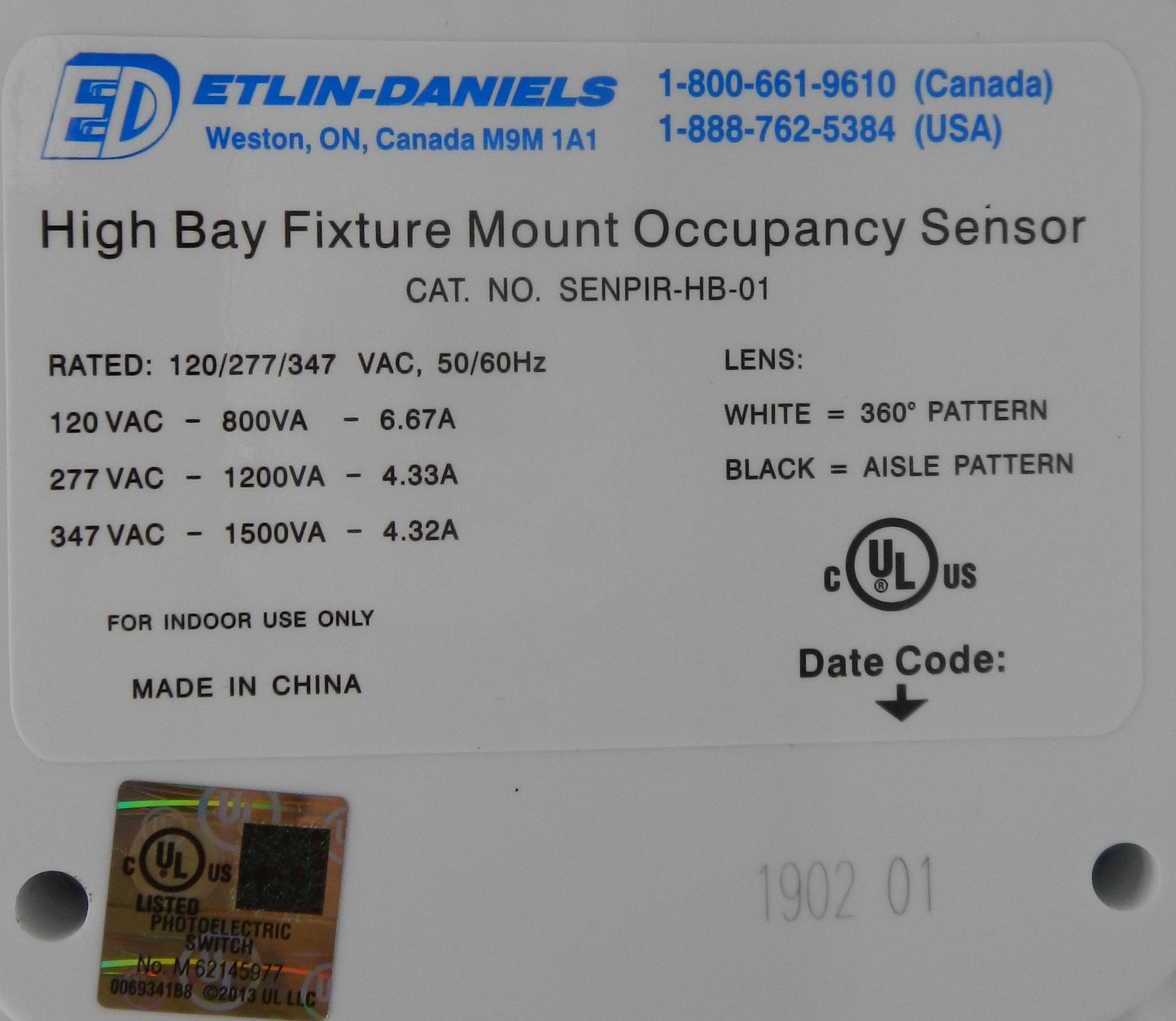

SENPIR-HB-01 Etlin-Daniels High Bay PIR Occupancy Sensor 120-347V 360° Fixture Mount

$54.99 CAD

Sale Sold out

Style NEW

Description:

Genuine Etlin-Daniels high bay PIR occupancy sensor for automatic lighting control in industrial and commercial facilities
Utilizes Passive Infrared (PIR) technology to detect occupancy and automatically switch lighting ON and OFF
Supports 120V, 277V, and 347V AC line voltage applications
360° field of view provides wide-area motion detection for high bay fixtures
Designed for fixture-mounted installation using a standard 1/2 in. knockout
Adjustable time delay from approximately 30 seconds to 25 minutes
Adjustable ambient light (Lux) setting prevents unnecessary operation during daylight conditions
Compatible with LED, fluorescent, halogen, electronic, and magnetic ballast lighting systems
Built-in relay with zero-cross switching extends relay life and improves reliability
Ideal for warehouses, manufacturing facilities, gymnasiums, retail stores, distribution centers, and other high-ceiling applications
cULus and UL Listed, compliant with California Title 24 requirements.

Manufacturer Name: Etlin-Daniels
Part Number (MPN): SENPIR-HB-01
Product Type: High Bay PIR Occupancy Sensor
Sensor Technology: Passive Infrared (PIR)
Mounting Type: Fixture Mount
Mounting Connection: 1/2 in. Knockout
Detection Pattern: 360°
Input Voltage: 120–277–347 VAC
Frequency: 50/60 Hz
Maximum Load Ratings:
- 800 VA (6.67 A) @ 120 VAC
- 1200 VA (4.33 A) @ 277 VAC
- 1500 VA (4.32 A) @ 347 VAC
Horsepower Rating: 1/4 HP
Time Delay Adjustment: 30 Seconds to 25 Minutes
Ambient Light Adjustment: Adjustable Lux Control
Operating Temperature: -10°C to +70°C
Housing Material: High-Impact Polycarbonate
Color: White
Certifications:
- UL Listed
- cULus Listed
- California Title 24 Compliant
Applications:
- High Bay LED Lighting
- Warehouses
- Manufacturing Facilities
- Retail Stores
- Industrial Buildings
- Commercial Lighting Automation
