Siemens

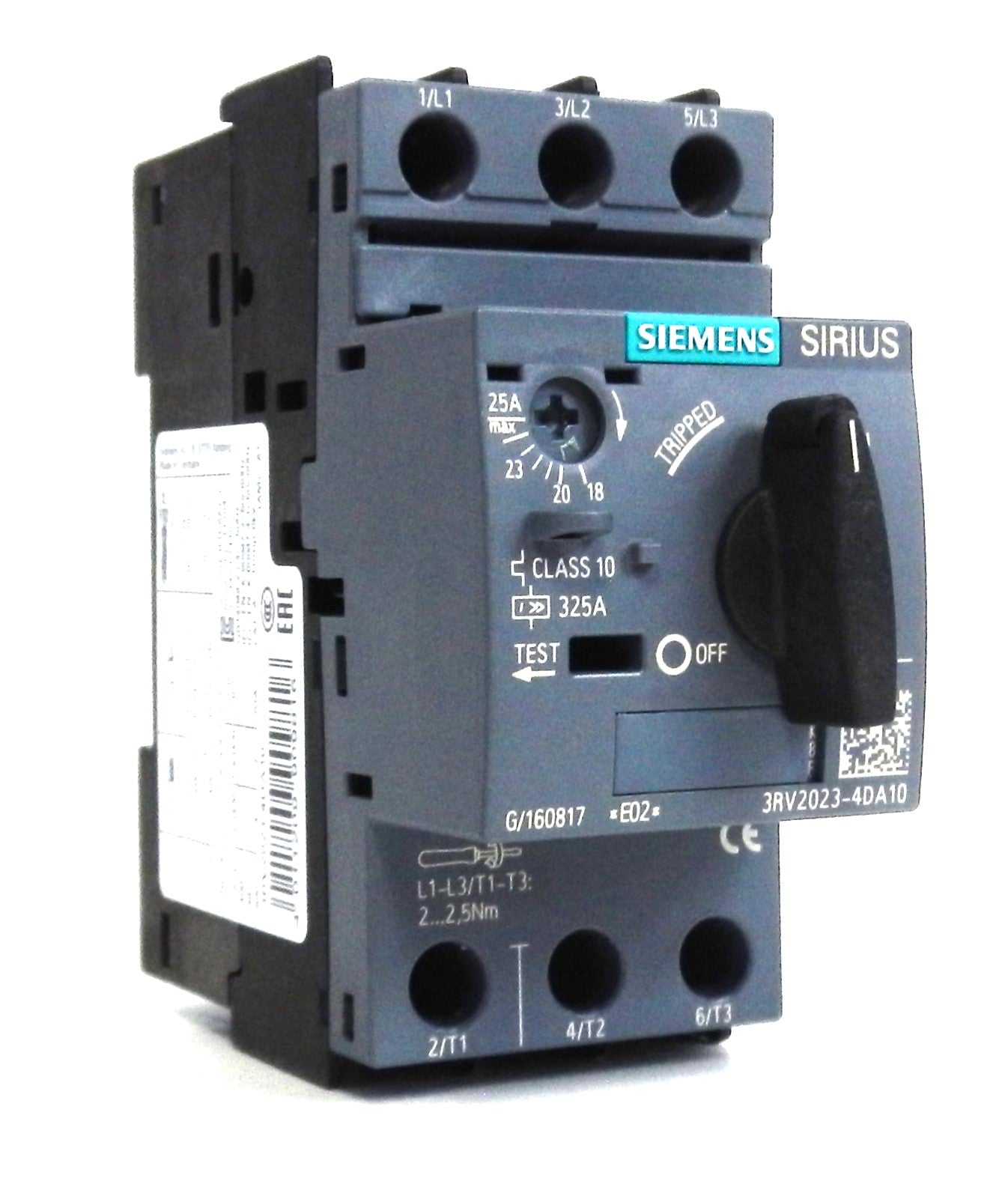

3RV2023-4DA10 Siemens SIRIUS Motor Protection Circuit Breaker 20-25A 3-Pole Size S0 Class 10

$89.99 CAD

Sale Sold out

STYLE REFURBISH

Description:

Genuine Siemens SIRIUS 3RV2 motor protection circuit breaker for reliable motor overload and short-circuit protection
Adjustable thermal overload setting from 20–25A with Class 10 tripping characteristics
3-pole manual motor protector designed for three-phase motor applications
High 325A magnetic short-circuit trip for dependable fault protection
Compact S0 frame size saves panel space while providing robust motor protection
Screw terminal connections ensure secure and reliable wiring
Rated for 690 VAC operation with 30 kA interrupting capacity at 600 VAC (UL/CSA)
DIN rail or panel mount installation for flexible control panel integration
Compatible with Siemens SIRIUS contactors and accessories for motor starter assemblies
Ideal for motor control centers, pumps, compressors, conveyors, HVAC systems, machine tools, OEM equipment, and industrial automation.

Manufacturer Name: Siemens
Part Number (MPN): 3RV2023-4DA10
Product Series: SIRIUS 3RV2
Product Type: Motor Protection Circuit Breaker
Frame Size: S0
Number of Poles: 3
Adjustable Overload Current: 20–25 A
Rated Operational Current (Ie): 25 A
Tripping Class: Class 10
Instantaneous Magnetic Trip: 325 A
Rated Operational Voltage: 20–690 VAC
Rated Frequency: 50/60 Hz
Interrupting Capacity: 30 kA @ 600 VAC (UL/CSA)
Rated Insulation Voltage (Ui): 690 V
Impulse Withstand Voltage (Uimp): 6 kV
Connection Type: Screw Terminals
Mounting Type: DIN Rail or Panel Mount
Degree of Protection: IP20
Mechanical Endurance: 100,000 Operations
Operating Temperature: -20°C to +60°C
Application: Motor Protection, Industrial Control Panels, Motor Starters, Pumps, Compressors, Conveyors, HVAC Equipment, OEM Machinery, Factory Automation.
