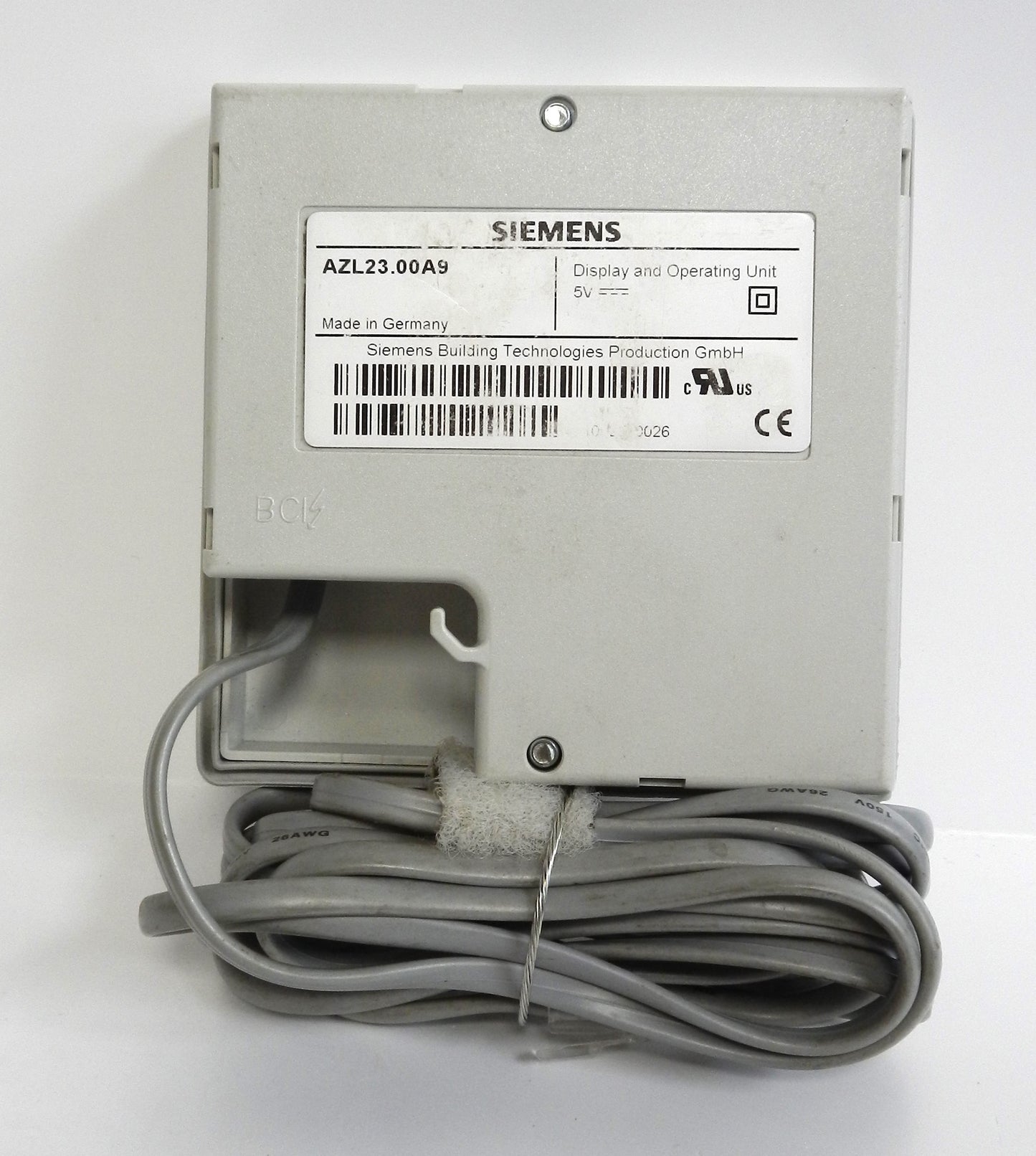

AZL23.00A9 Siemens Operator Display Unit for LMV2 LMV3 LME Burner Control IP54

Description:

• Genuine Siemens operator display unit for commissioning, programming, and diagnostics of compatible burner management systems
• Designed for use with Siemens LMV2, LMV3, LME39, LME7, and selected LFS1 burner control systems
• Provides display, operation, and parameterization of safety-related and non-safety-related burner functions
• Displays operating status, program phases, fault codes, alarms, and system parameters for simplified troubleshooting
• Features a backlit LCD display with 5 multifunction keys, including Reset, navigation, and parameter adjustment
• Communicates with compatible burner controls through the BCI interface (RJ11 connection)
• Flush-panel mounting design with IP54 front protection when properly installed
• Compact, rugged construction for industrial burner, boiler, and HVAC applications
• Ideal for industrial burners, commercial boilers, combustion systems, HVAC equipment, and OEM burner control panels.

Specifications:

• Manufacturer Name: Siemens
• Part Number (MPN): AZL23.00A9
• Product Type: Operator Display Unit
• Mounting Style: Flush Panel Mount
• Compatible Systems:
  • Siemens LMV2 Burner Management System
  • Siemens LMV3 Burner Management System
  • Siemens LME39 Burner Controls
  • Siemens LME7 Burner Controls
  • Siemens LFS1 Flame Safeguards
• Display Type: Backlit LCD
• User Interface:
  • 5 Multifunction Buttons
  • Reset Function
  • Parameter Programming
  • Service & Diagnostic Navigation
• Communication Interface: BCI (RJ11)
• Operating Voltage: 5 VDC
• Typical Power Consumption: <50 mW
• Degree of Protection:
  • Front: IP54 (Mounted)
  • Rear: IP40
• Safety Class: Class II
• Operating Temperature: -20°C to +60°C
• Storage Temperature: -20°C to +60°C
• Installation Altitude: Up to 2,000 m
• Housing Material: PC / PC-ABS
• Housing Color: RAL 7035 Light Grey
• Applications:
  • Industrial Burners
  • Boiler Controls
  • Combustion Management
  • HVAC Systems
  • OEM Burner Equipment
  • Industrial Heating Systems

Dimensions:

• Flush-panel mounting design for Siemens burner management control panels.
• Front protection rated IP54 when correctly mounted.

Weight:

• Approximate Weight: 0.12 kg (0.26 lb).
