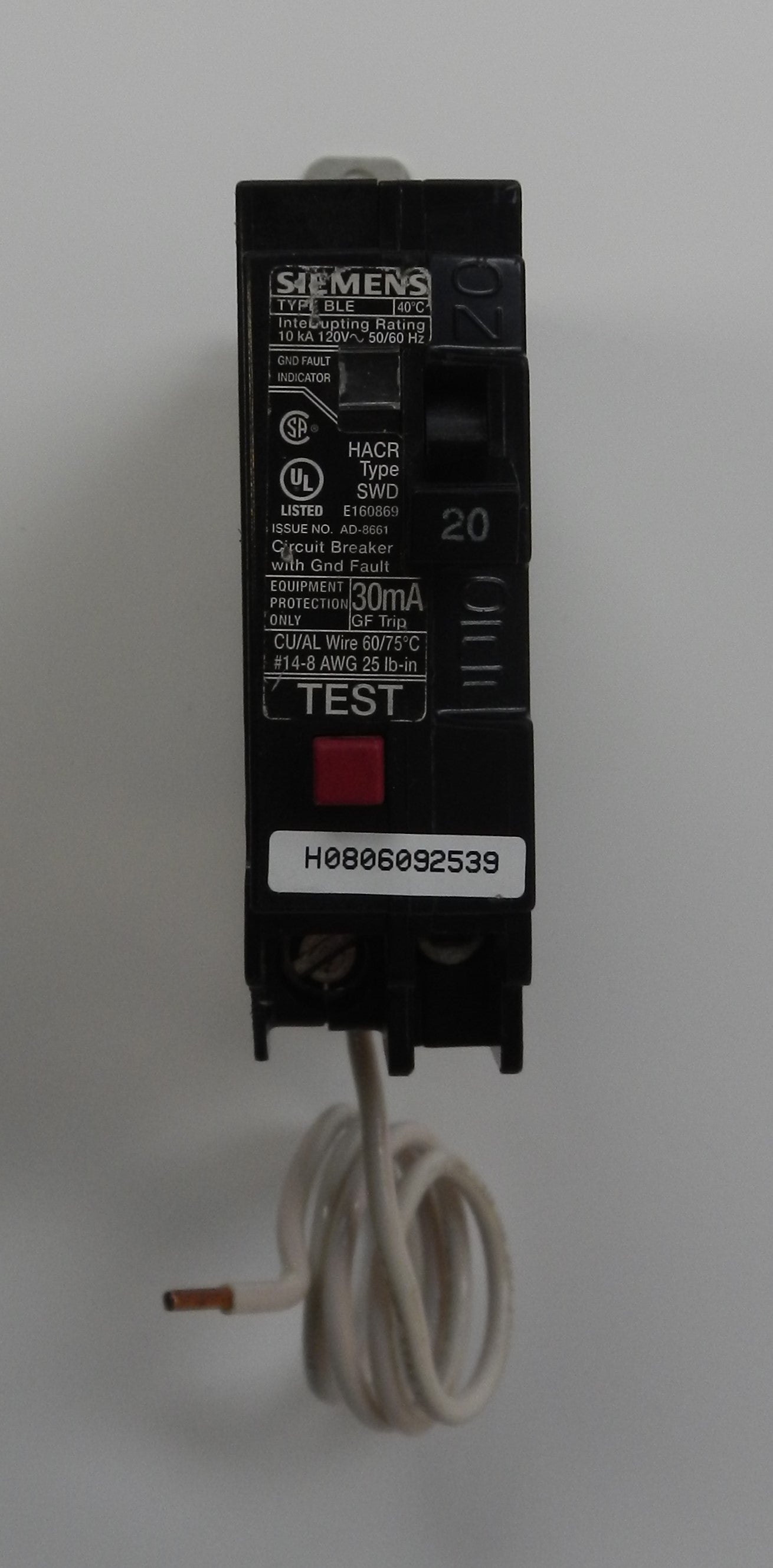

BE120 Siemens ITE 20A 1-Pole GFEP Circuit Breaker 120V Bolt-On 30mA Ground Fault Protection

Description:

• Genuine Siemens / ITE Ground Fault Equipment Protection (GFEP) circuit breaker for industrial and commercial electrical systems
• Provides 1-pole, 20 Amp overcurrent and 30 mA ground fault equipment protection
• Designed for 120 VAC single-phase applications
• Bolt-On mounting configuration for compatible Siemens panelboards
• Combines thermal-magnetic overcurrent protection with equipment ground fault protection to reduce damage caused by line-to-ground faults
• Ideal for heat tracing systems, industrial equipment, commercial buildings, and electrical distribution panels
• Rated with a 10 kA interrupting capacity for dependable fault protection
• Factory-assembled Siemens Type BE breaker for reliable long-term performance
• UL Listed and CSA Approved for commercial and industrial installations.

Specifications:

• Manufacturer Name: Siemens / ITE
• Part Number (MPN): BE120
• Product Series: Type BE
• Product Type: Ground Fault Equipment Protection (GFEP) Circuit Breaker
• Number of Poles: 1
• Rated Current: 20 A
• Rated Voltage: 120 VAC
• Frequency: 50/60 Hz
• Ground Fault Trip Sensitivity: 30 mA
• Interrupt Rating: 10 kA
• Mounting Type: Bolt-On
• Protection Type:
  • Thermal-Magnetic Overcurrent Protection
  • Ground Fault Equipment Protection (GFEP)
• Phase: Single Phase
• Certifications:
  • UL Listed
  • CSA Approved
• Applications:
  • Heat Trace Systems
  • Commercial Electrical Panels
  • Industrial Control Panels
  • Equipment Protection
  • Electrical Distribution Systems
  • Ground Fault Equipment Protection

Dimensions:

• Height: 3.5 in (88.9 mm)
• Width: 1.0 in (25.4 mm)
• Depth: 3.0 in (76.2 mm).

Weight:

• Approximate Weight: 0.23 kg (0.51 lb).
