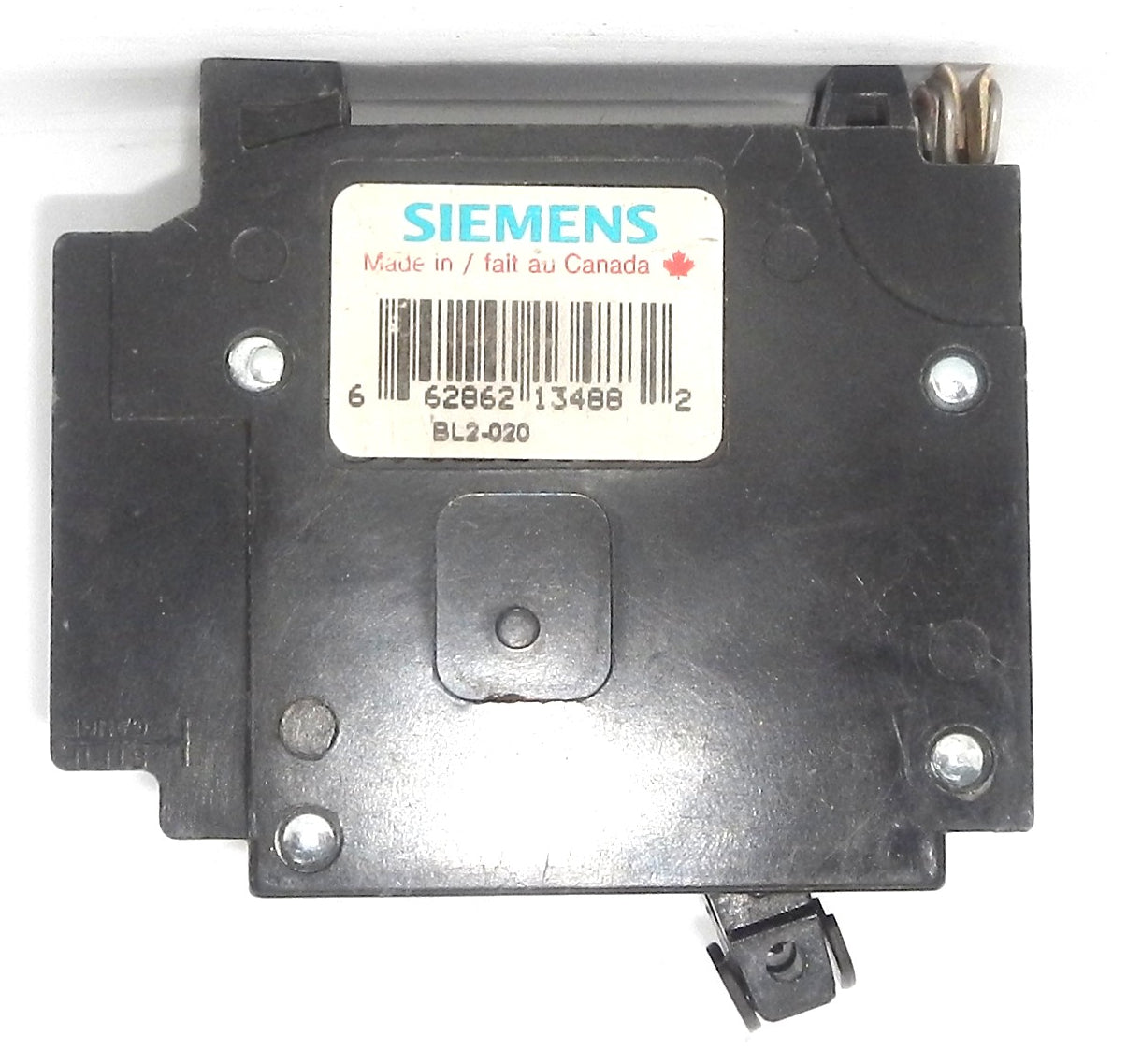

BL2020 Siemens Type BL 20A 2-Pole Circuit Breaker 120/240VAC 10kA Plug-In

Description:

• Thermal-magnetic circuit breaker designed for reliable overload and short-circuit protection
• Rated at 20 Amps with a two-pole configuration for 120/240 VAC branch circuits
• Type BL plug-in design for Siemens and ITE Blue Line load centers
• 10 kAIC interrupting rating for dependable residential and light commercial protection
• Common internal trip mechanism disconnects both poles simultaneously for enhanced safety
• Compact design allows quick installation and efficient use of panel space
• Durable molded-case construction for long service life
• UL Listed and CSA Approved for safe and code-compliant installation
• Ideal for HVAC equipment, water heaters, air compressors, subpanels, and other 240V branch circuits
• Manufactured to Siemens quality standards for reliable electrical distribution.

Specifications:

• Manufacturer Name: Siemens
• Part Number (MPN): BL2020
• Series: Type BL (Blue Line)
• Product Type: Thermal-Magnetic Circuit Breaker
• Current Rating: 20 A
• Number of Poles: 2 Pole
• Rated Voltage: 120/240 VAC
• Interrupt Rating: 10 kAIC
• Circuit Breaker Type: Thermal-Magnetic
• Mounting Type: Plug-In
• Compatible Panels: Siemens / ITE Blue Line Load Centers
• Certifications: UL Listed, CSA Approved
• Application: Residential and Light Commercial Electrical Distribution

Dimensions:

• Width: 1 in
• Height: 3.25 in
• Depth: 3 in

Weight:

• Approximate Weight: 0.35 lb (0.16 kg)
