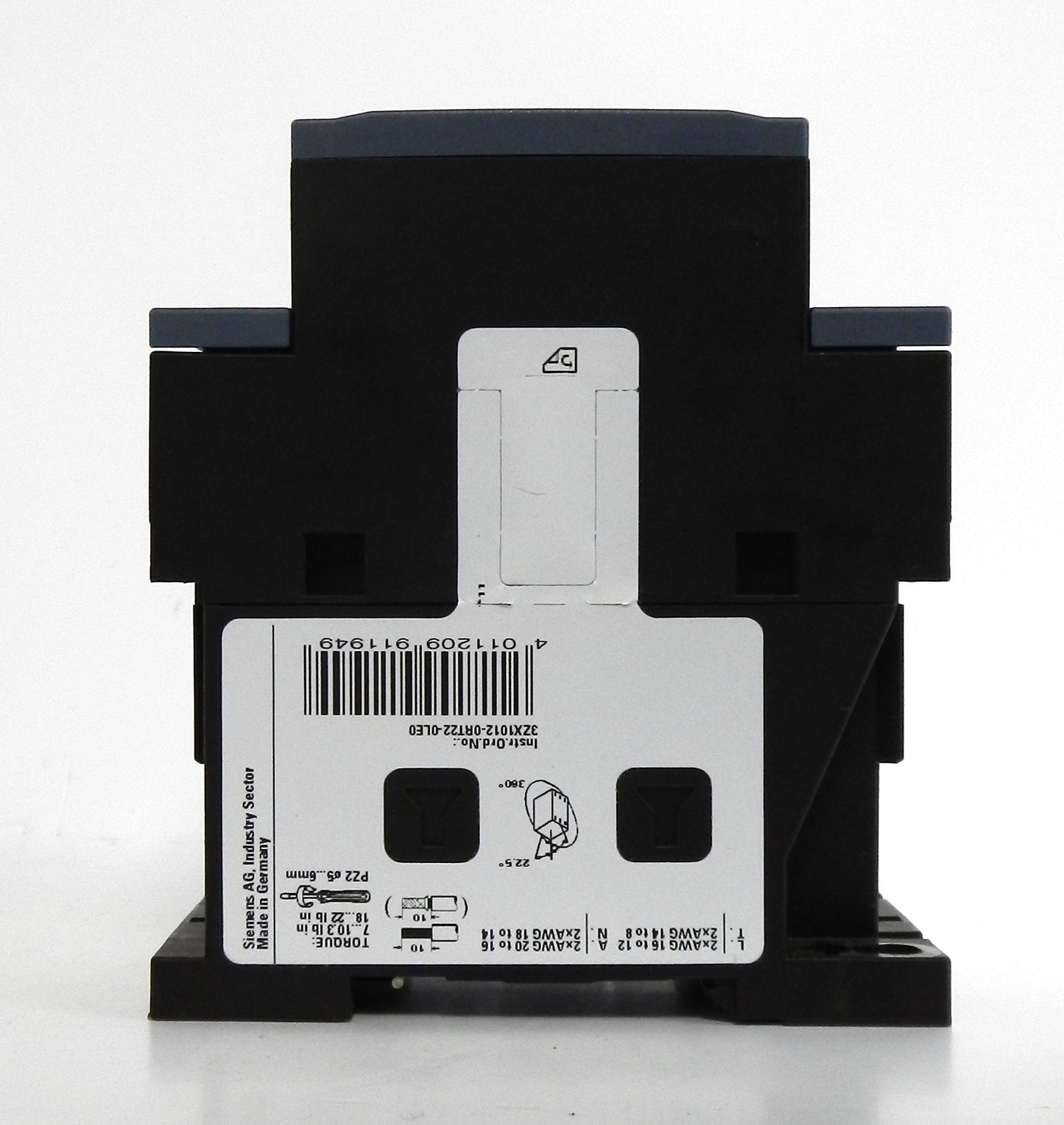

LEN00C003120B Siemens 30A 3-Pole Electrically Held Lighting Contactor 120VAC Open Type

Description:

• Genuine Siemens electrically held lighting contactor for commercial and industrial lighting control applications
• Rated for 30 Amps with 3 Normally Open (3 NO) main power contacts
• Features a 110 VAC 50 Hz / 120 VAC 60 Hz control coil
• Electrically held design keeps contacts energized while coil voltage is applied
• Open (NEMA Type 1) construction for installation inside suitable electrical enclosures
• Non-combination contactor with no disconnect switch
• Screw terminal connections provide secure and reliable field wiring
• Rated for switching loads up to 600 VAC
• Ideal for lighting control panels, commercial buildings, schools, warehouses, parking lots, industrial facilities, and energy management systems
• Part of the Siemens Class LE Electrically Held Lighting Contactor family and remains an active product.

Specifications:

• Manufacturer Name: Siemens
• Part Number (MPN): LEN00C003120B
• Product Family: Class LE Electrically Held Lighting Contactors
• Product Type: Electrically Held Lighting Contactor
• Rated Current: 30 A
• Number of Poles: 3
• Main Contacts: 3 Normally Open (3 NO)
• Auxiliary Contacts: 0 Normally Closed (0 NC)
• Coil Voltage:
  • 110 VAC @ 50 Hz
  • 120 VAC @ 60 Hz
• Maximum Switching Voltage: 600 VAC
• Coil Power: 87 VA
• Mounting Type: Surface / Chassis Mount
• Terminal Type: Screw Terminals
• Enclosure Type: Open (No Enclosure)
• Mechanical Life: 10,000,000 Operations
• Operating Temperature: 0°C to +40°C
• Protection:
  • Finger-safe Main Circuit
  • Finger-safe Control Circuit
• Country of Origin: Germany
• Product Lifecycle: Active
• Certifications:
  • UL 508
  • CSA C22.2 No. 14
  • NEMA ICS 2

Dimensions:

• Height: 88 mm (3.47 in)
• Width: 47 mm (1.84 in)
• Depth: 101 mm (3.96 in)

Weight:

• Approximate Weight: 0.46 kg (1.01 lb).
