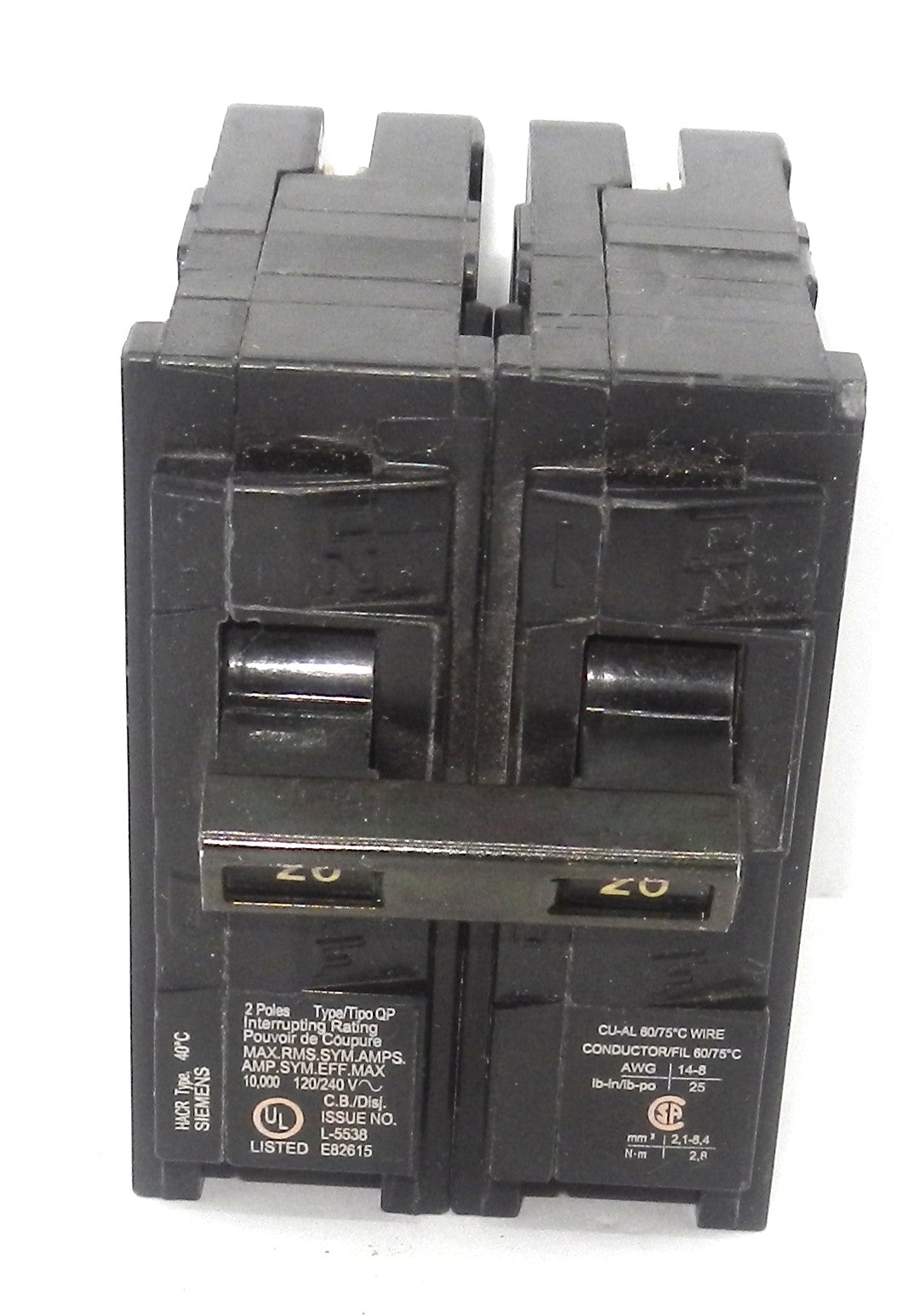

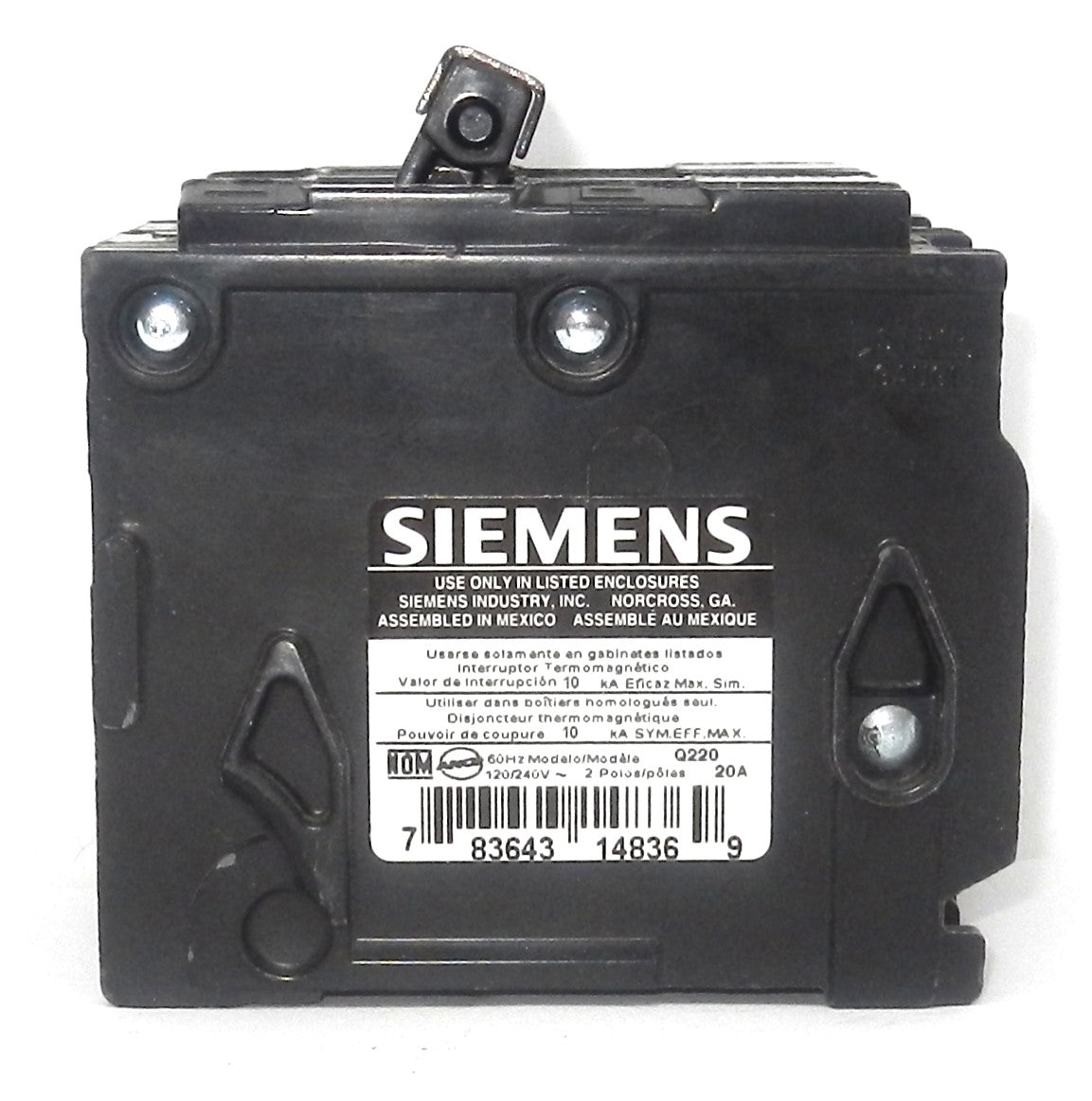

Q220 Siemens 20A 2-Pole Type QP Circuit Breaker 120/240VAC 10kA Plug-In

Description:

• Thermal-magnetic circuit breaker designed for reliable overload and short-circuit protection
• Rated at 20 Amps with a two-pole configuration for 120/240 VAC branch circuits
• Type QP plug-in design for quick installation in compatible Siemens load centers
• 10 kAIC interrupting rating provides dependable protection for residential and light commercial electrical systems
• Common internal trip mechanism disconnects both poles simultaneously for enhanced safety
• Insta-Wire™ terminals simplify wiring and reduce installation time
• Compact 2-inch-wide design maximizes available panel space
• Compatible with Siemens Type QP, EQ, EQL, SEQ, EQG, and select Murray load centers
• UL Listed and CSA Certified for safety and code compliance
• Ideal for air conditioners, electric water heaters, compressors, subpanels, and other 240V branch circuits.

Specifications:

• Manufacturer Name: Siemens
• Part Number (MPN): Q220
• Series: Type QP
• Product Type: Thermal-Magnetic Circuit Breaker
• Current Rating: 20 A
• Number of Poles: 2 Pole
• Rated Voltage: 120/240 VAC
• Interrupt Rating: 10 kAIC
• Circuit Breaker Type: Standard Thermal-Magnetic
• Mounting Type: Plug-In
• Terminal Type: Insta-Wire™
• Standard: UL 489
• Compatible Load Centers: Siemens Type QP, EQ, EQL, SEQ, EQG, and select Murray Panels
• Certifications: UL Listed, CSA Certified
• Application: Residential and Light Commercial Electrical Distribution

Dimensions:

• Height: 3 in
• Width: 2 in
• Depth: 3 in

Weight:

• Approximate Weight: 0.55 lb (0.25 kg)
