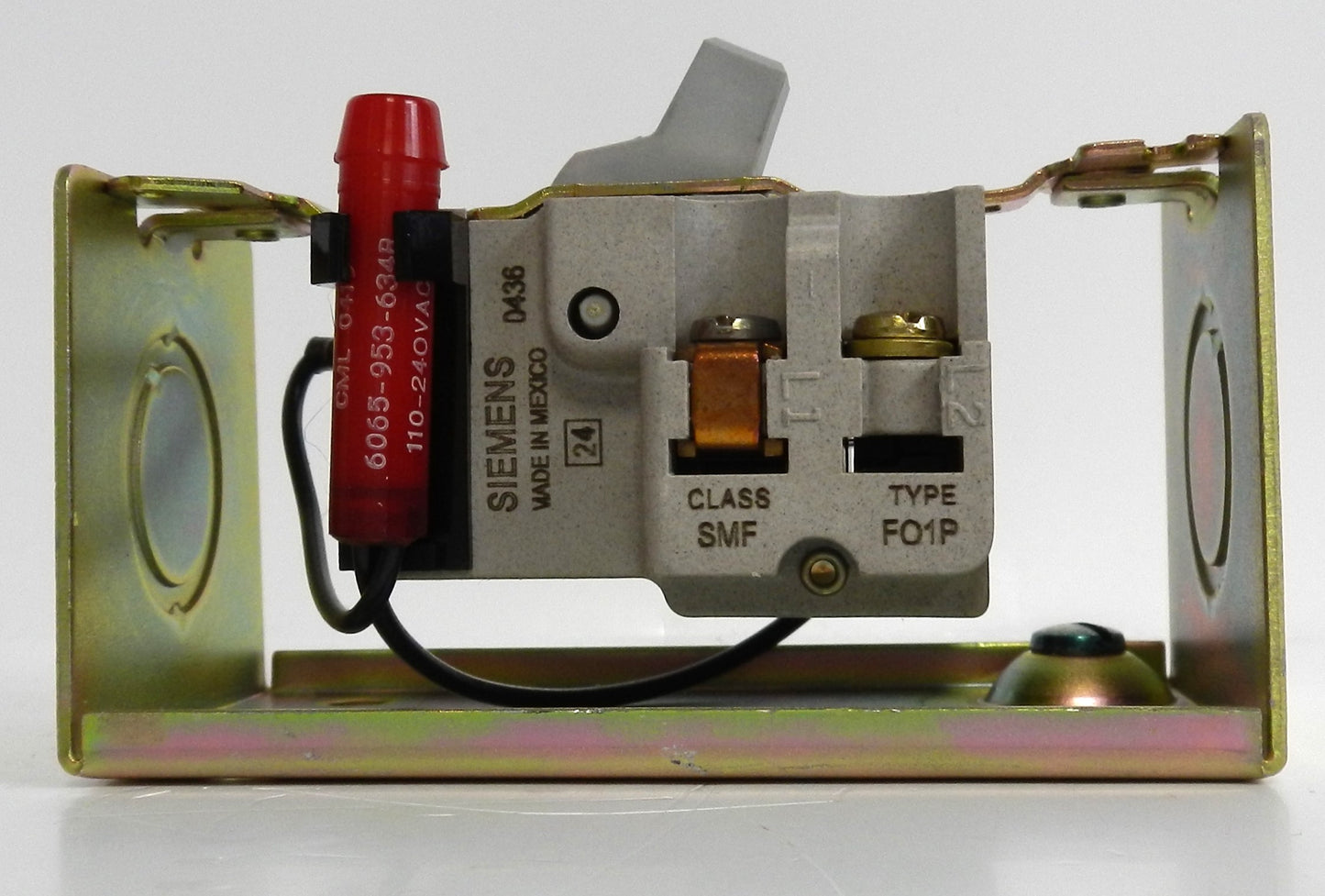

SMFFG1P Siemens Class SMF Manual Motor Starter 16A 1-Pole NEMA 1 Surface Mount with Pilot Light

Description:

• Genuine Siemens Class SMF manual motor starter for fractional horsepower motor control applications
• Provides manual ON/OFF motor control with integrated thermal overload protection
• Rated for 16 Amps, 1-pole, single-phase operation
• Suitable for motors up to 1 HP at 115–230/277 VAC
• Features a toggle operator with an integrated red pilot light for visual indication of power status
• Factory-installed in a NEMA 1 surface-mount enclosure for indoor applications
• Includes a manual reset overload mechanism to protect motors from overload conditions
• Screw terminal connections provide secure and reliable field wiring
• Ideal for fans, pumps, conveyors, compressors, small machine tools, and other fractional horsepower motor applications
• UL Listed for industrial and commercial motor control applications.

Specifications:

• Manufacturer Name: Siemens
• Part Number (MPN): SMFFG1P
• Product Series: Class SMF
• Product Type: Manual Motor Starter
• Starter Type: Fractional Horsepower Manual Starter
• Rated Current: 16 A
• Number of Poles: 1
• Phase: Single Phase
• Horsepower Rating:
  • 1 HP @ 115 VAC
  • 1 HP @ 230/277 VAC
• Voltage Rating: 115–230/277 VAC
• Operator Type: Toggle
• Indicator: Red Pilot Light
• Overload Protection: Thermal (Melting Alloy)
• Reset Type: Manual Reset
• Mounting Type: Surface Mount
• Enclosure Rating: NEMA 1
• Degree of Protection: IP10
• Terminal Type: Binding Head Screw
• Enclosure Material: Sheet Steel with Thermoplastic Cover
• Certifications:
  • UL Listed
• Applications:
  • Fans
  • Pumps
  • Conveyors
  • Small Machine Tools
  • Fractional Horsepower Motors
  • General Industrial Motor Control

Dimensions:

• Height: 4.25 in (108 mm)
• Width: 2.44 in (62 mm)
• Depth: 2.75 in (70 mm)

Weight:

• Approximate Weight: 0.73 kg (1.6 lb).
