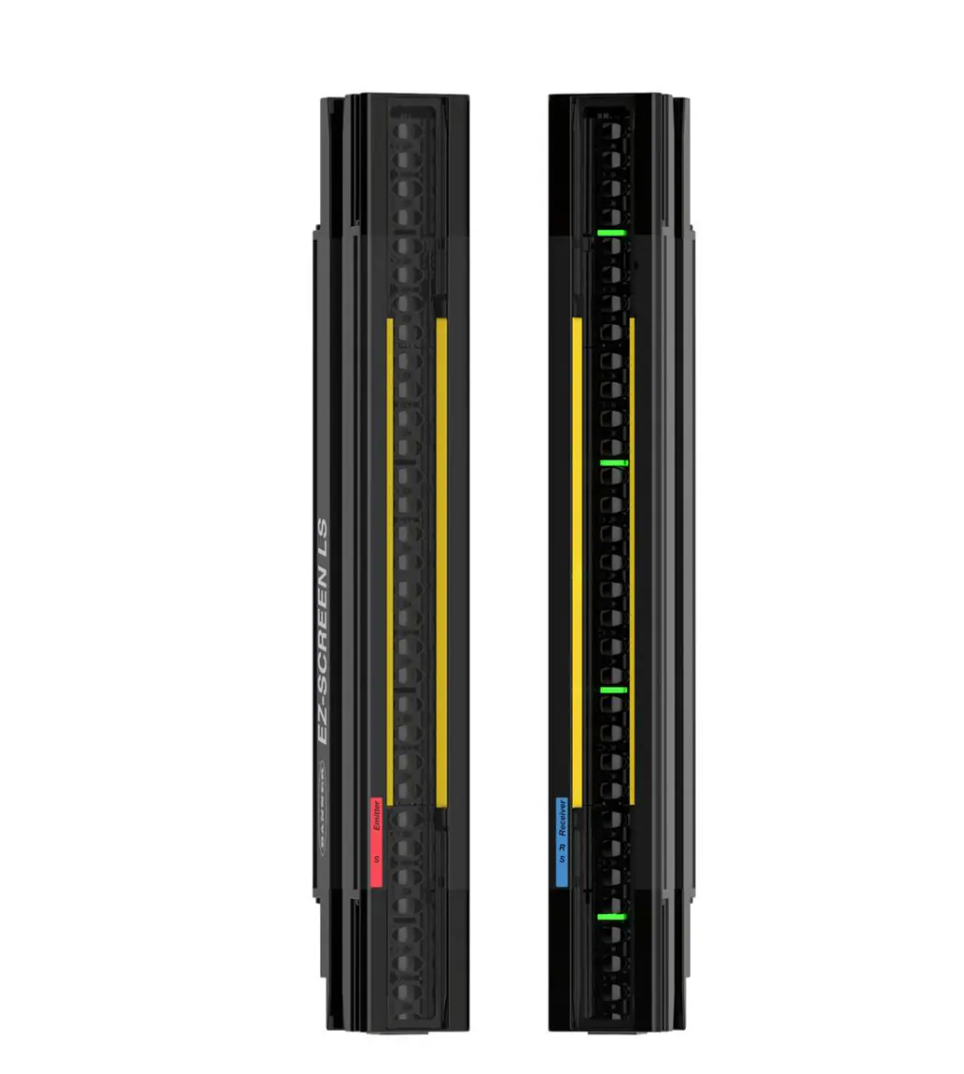

SLLCP23-700P88 Banner Engineering EZ-SCREEN LS Type 4 Safety Light Curtain Kit 700mm 23mm Resolution

$2,999.99 CAD

Sale Sold out

STYLE NEW

Description:

Genuine Banner Engineering EZ-SCREEN LS Cascade safety light curtain kit for industrial machine safeguarding
Complete emitter and receiver pair with 700 mm protected height and 23 mm hand-detection resolution
Type 4 safety light curtain certified to IEC 61496-1/-2, suitable for safeguarding hazardous machine access points
Maximum operating range of 12 m (40 ft) for flexible installation
Features 2 OSSD safety outputs, EDM (External Device Monitoring), and Fault Output
Supports cascade connection for protecting larger or irregular machine openings
Rugged IP65/IP67 aluminum housing designed for harsh industrial environments
Equipped with 8-pin M12, 300 mm pigtail connectors for fast installation
Ideal for robotics, automated manufacturing, packaging machinery, conveyor systems, presses, CNC equipment, and industrial automation
Compatible with Banner EZ-SCREEN LS accessories and mounting hardware.

Manufacturer Name: Banner Engineering
Part Number (MPN): SLLCP23-700P88
Product Series: EZ-SCREEN LS Cascade
Product Type: Safety Light Curtain Kit
System Type: Emitter / Receiver Pair
Safety Rating:
- Type 4 (IEC 61496-1/-2)
- PLe (ISO 13849-1)
- SIL3 / CL3 (IEC 61508)
Resolution: 23 mm
Protected Height: 700 mm (27.6 in)
Overall Length: 704 mm
Operating Range: 0.1 to 12 m (0.3 to 40 ft)
Supply Voltage: 24 VDC
OSSD Outputs: 2 × 24 VDC, 0.5 A
Response Time: 13.3 ms
Recovery Time: 55 / 186 ms
Connector Type: 8-pin M12, 300 mm Pigtail
Housing Material:
- Aluminum
- Zinc
- Acrylic
Housing Finish: Black Anodized
Protection Rating: IP65 / IP67
Operating Temperature: -20°C to +55°C
Feature Highlights:
- Cascade Capability
- Fixed Blanking
- End-to-End Sensing
- EDM
- Fault Output
Applications:
- Machine Guarding
- Robotics
- Packaging Equipment
- Material Handling
- CNC Machinery
- Automated Production Lines
- Industrial Safety Systems
