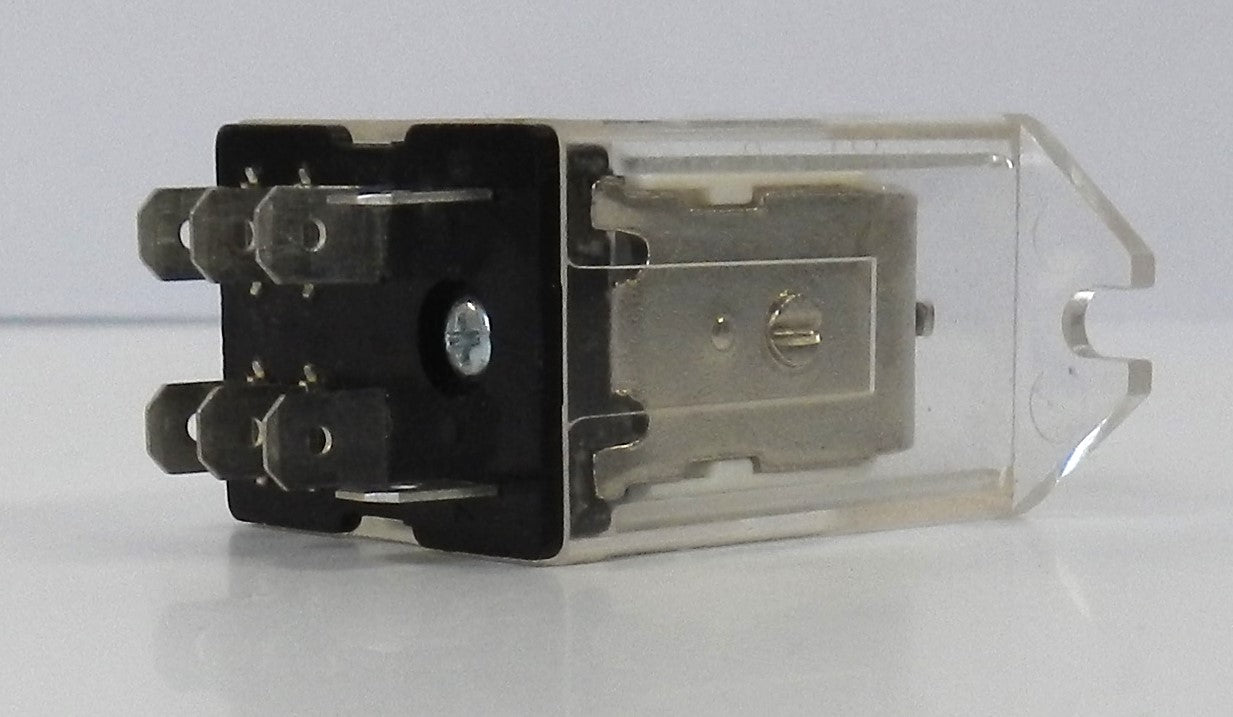

SCL-DPDT-C1-24VAC Song Chuan General Purpose Power Relay DPDT 24VAC Coil 10A Plug-In

Description:

• Genuine Song Chuan general purpose power relay for industrial control, automation, HVAC, and electrical switching applications
• Features DPDT (Double Pole Double Throw / 2 Form C) contact configuration for versatile switching of AC and DC loads
• Operates with a 24 VAC non-latching coil
• Rated for 10A switching capacity, making it suitable for motors, contactors, lighting, pumps, and control circuits
• Quick-connect terminals provide fast installation and easy replacement
• Flange-mount housing simplifies panel installation in industrial environments
• Silver tin oxide (AgSnO) contacts provide excellent durability and reliable switching performance
• Ideal for industrial automation, HVAC systems, OEM equipment, control panels, machine controls, and power distribution
• Manufacturer scheduled for obsolescence, making it a suitable replacement part for maintaining existing equipment.

Specifications:

• Manufacturer Name: Song Chuan
• Part Number (MPN): SCL-DPDT-C1-24VAC
• Product Series: SCL
• Product Type: General Purpose Power Relay
• Contact Configuration: DPDT (2 Form C)
• Contact Rating: 10 A
• Coil Voltage: 24 VAC
• Coil Type: Non-Latching
• Coil Resistance: 160 Ω
• Coil Power Consumption: 900 mW
• Contact Material: Silver Tin Oxide (AgSnO)
• Switching Voltage:
  • 240 VAC
  • 28 VDC
• Mounting Style: Flange Mount
• Terminal Type: Quick Connect
• RoHS Compliant: Yes
• Applications:
  • Industrial Automation
  • HVAC Equipment
  • Control Panels
  • Machine Controls
  • Motor Control
  • Lighting Control
  • OEM Equipment

Dimensions:

• Length: 27.5 mm (1.08 in)
• Width: 21.5 mm (0.85 in)
• Height: 35.2 mm (1.39 in)

Weight:

• Approximate Weight: 35 g (1.23 oz).
