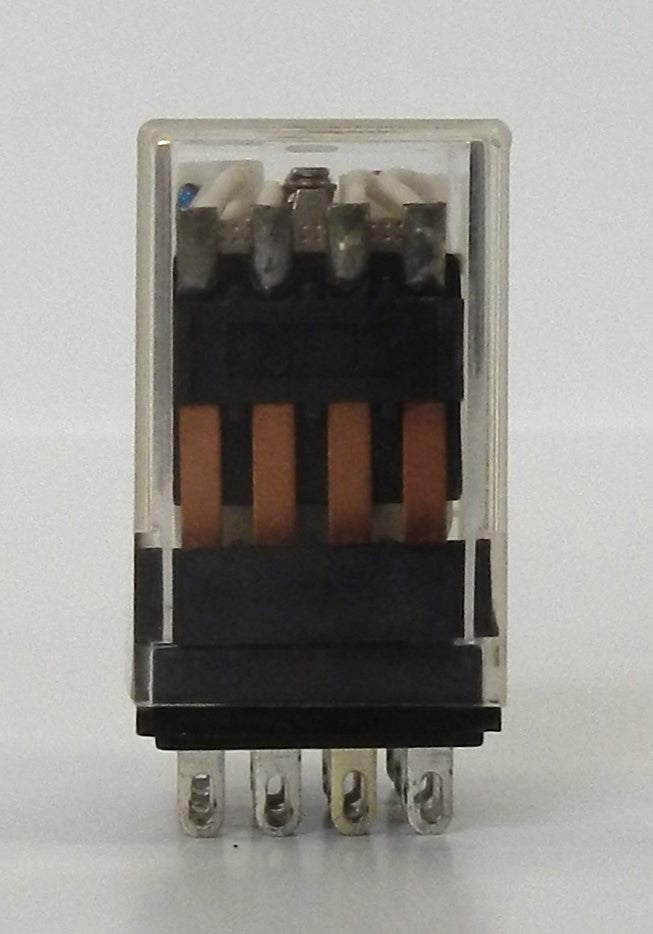

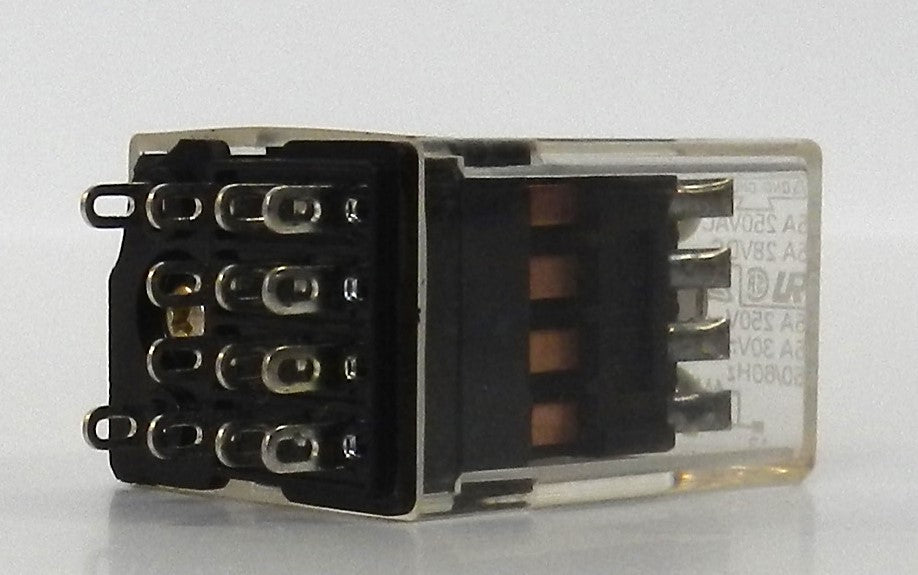

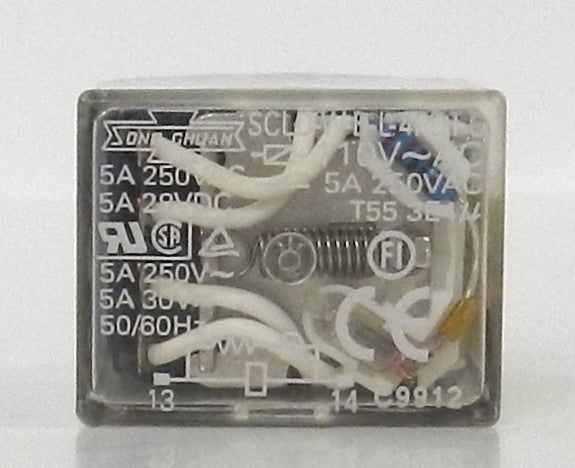

SCLD-W-B-L-4PDT-C 120VAC Song Chuan 4PDT General Purpose Power Relay 5A 120VAC Coil

Description:

• Genuine Song Chuan general-purpose power relay for industrial control, automation, and electrical switching applications
• Features 4PDT (4 Form C) contact configuration with 5A switching capacity
• Equipped with a 120 VAC non-latching coil for reliable AC control circuits
• Includes an integrated pilot light (L designation) for visual indication of coil energization
• Quick-connect terminal design simplifies installation and maintenance
• Straight cover enclosure provides protection for industrial environments
• Silver nickel (AgNi) contacts deliver reliable switching performance and long service life
• Ideal for industrial control panels, HVAC systems, machine automation, OEM equipment, power distribution, and relay control circuits
• Part of the Song Chuan SCLD Series of industrial general-purpose relays.

Specifications:

• Manufacturer Name: Song Chuan
• Part Number (MPN): SCLD-W-B-L-4PDT-C 120VAC
• Product Series: SCLD
• Product Type: General Purpose Power Relay
• Contact Configuration: 4PDT (4 Form C)
• Contact Rating:
  • 5A @ 250 VAC (Resistive)
  • 5A @ 28 VDC (Resistive)
• Coil Voltage: 120 VAC
• Coil Type: Non-Latching AC
• Coil Power Consumption: Approx. 1.2 VA
• Coil Resistance: 3.4 kΩ
• Contact Material: Silver Nickel (AgNi)
• Terminal Style: Quick Connect
• Indicator: Built-in Pilot Light
• Enclosure: Straight Cover
• Dielectric Strength:
  • Contact to Coil: 1500 VAC
  • Between Contact Circuits: 1500 VAC
  • Open Contacts: 500 VAC
• Mechanical Life: 10 Million Operations (Minimum)
• Electrical Life: 100,000 Operations (Minimum)
• Certifications:
  • RoHS Compliant
• Applications:
  • Industrial Automation
  • Control Panels
  • HVAC Systems
  • Machine Control
  • OEM Equipment
  • Power Distribution
  • Relay Logic Circuits

Dimensions:

• Length: 27.5 mm (1.08 in)
• Width: 21.5 mm (0.85 in)
• Height: 36 mm (1.42 in)

Weight:

• Approximate Weight: 35 g (0.08 lb)
