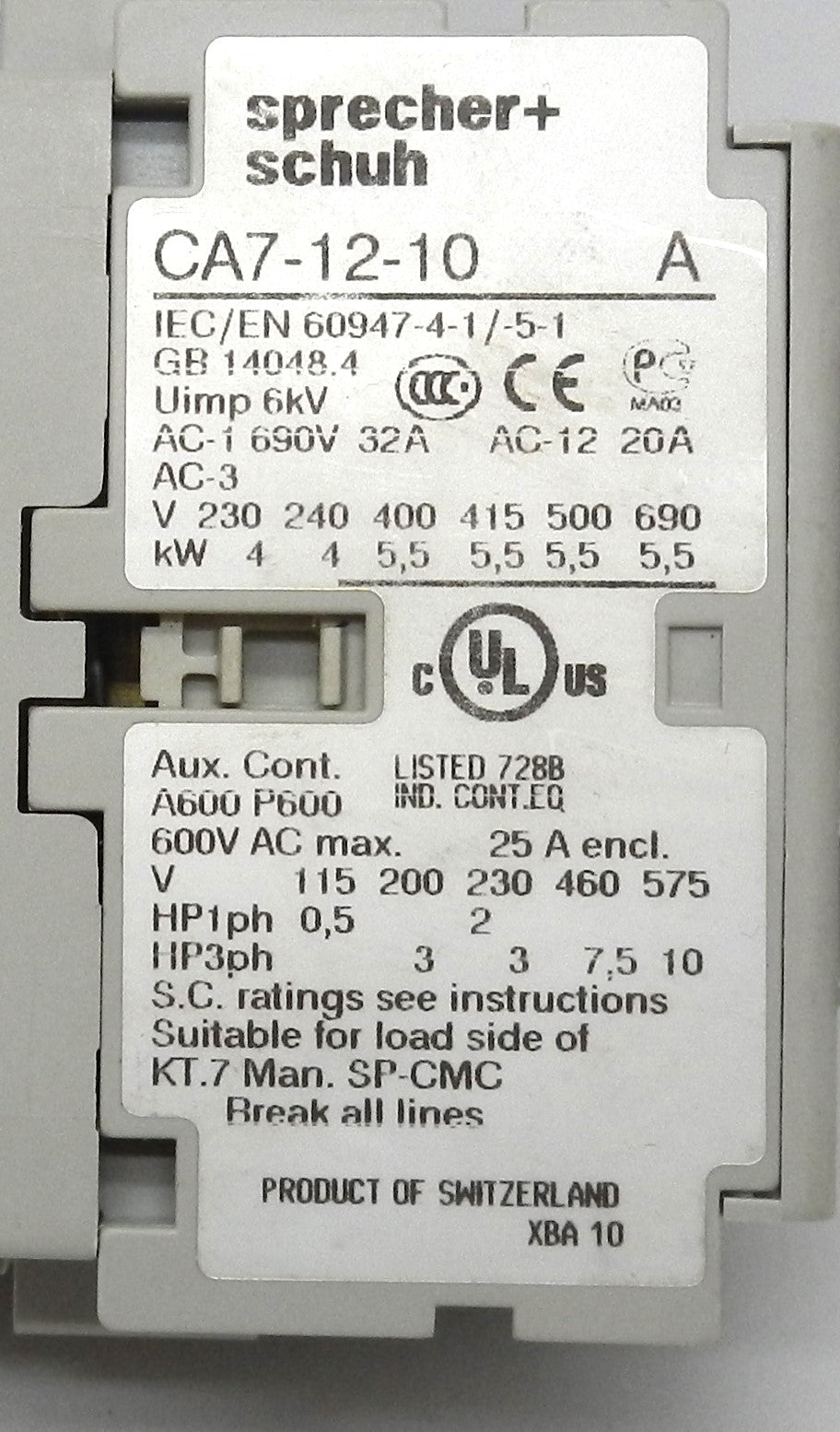

CA7121024Z Sprecher + Schuh IEC Miniature Contactor 12A 3-Pole 24VAC 1NO Auxiliary

Description:

• Genuine Sprecher + Schuh IEC contactor for industrial motor control and automation applications
• Rated for 12A AC-3 motor switching and 32A AC-1 general-purpose switching
• Features 3 Normally Open (3 NO) main power contacts and 1 Normally Open (1 NO) auxiliary contact
• Equipped with a 24 VAC 50/60 Hz control coil
• Compact 45 mm wide design saves panel space while providing high-performance switching
• Screw terminal connections ensure secure and reliable wiring
• Designed for switching motors, pumps, compressors, conveyors, HVAC equipment, and industrial machinery
• Compatible with a wide range of CA7 series accessories including overload relays, auxiliary contacts, timers, surge suppressors, and mechanical interlocks
• Meets IEC, UL, and CSA standards for industrial motor control applications
• Ideal for OEM equipment, industrial automation, machine control, manufacturing, and control panel installations.

Specifications:

• Manufacturer Name: Sprecher + Schuh
• Part Number (MPN): CA7121024Z
• Catalog Number: CA7-12-10-24Z
• Product Series: CA7
• Product Type: IEC Contactor
• Rated Operational Current (AC-3): 12 A
• Rated Operational Current (AC-1): 32 A
• Number of Poles: 3
• Main Contacts: 3 Normally Open (3 NO)
• Auxiliary Contacts: 1 Normally Open (1 NO)
• Coil Voltage: 24 VAC, 50/60 Hz
• Coil Code: 24Z
• Terminal Type: Screw Terminals
• Mounting: DIN Rail or Panel Mount
• Horsepower Ratings:
  • 3 HP @ 200V
  • 3 HP @ 230V
  • 7.5 HP @ 460V
  • 10 HP @ 575V
• Standards:
  • UL Listed
  • CSA Certified
  • IEC Compliant
• Applications:
  • Motor Control
  • Industrial Automation
  • HVAC Systems
  • Pumps
  • Compressors
  • Conveyors
  • OEM Equipment
  • Machine Control

Dimensions:

• Width: 45 mm (1.77 in)
• Compact IEC contactor designed for DIN rail or panel mounting.

Weight:

• Approximate Weight: 0.32 kg (0.71 lb).
