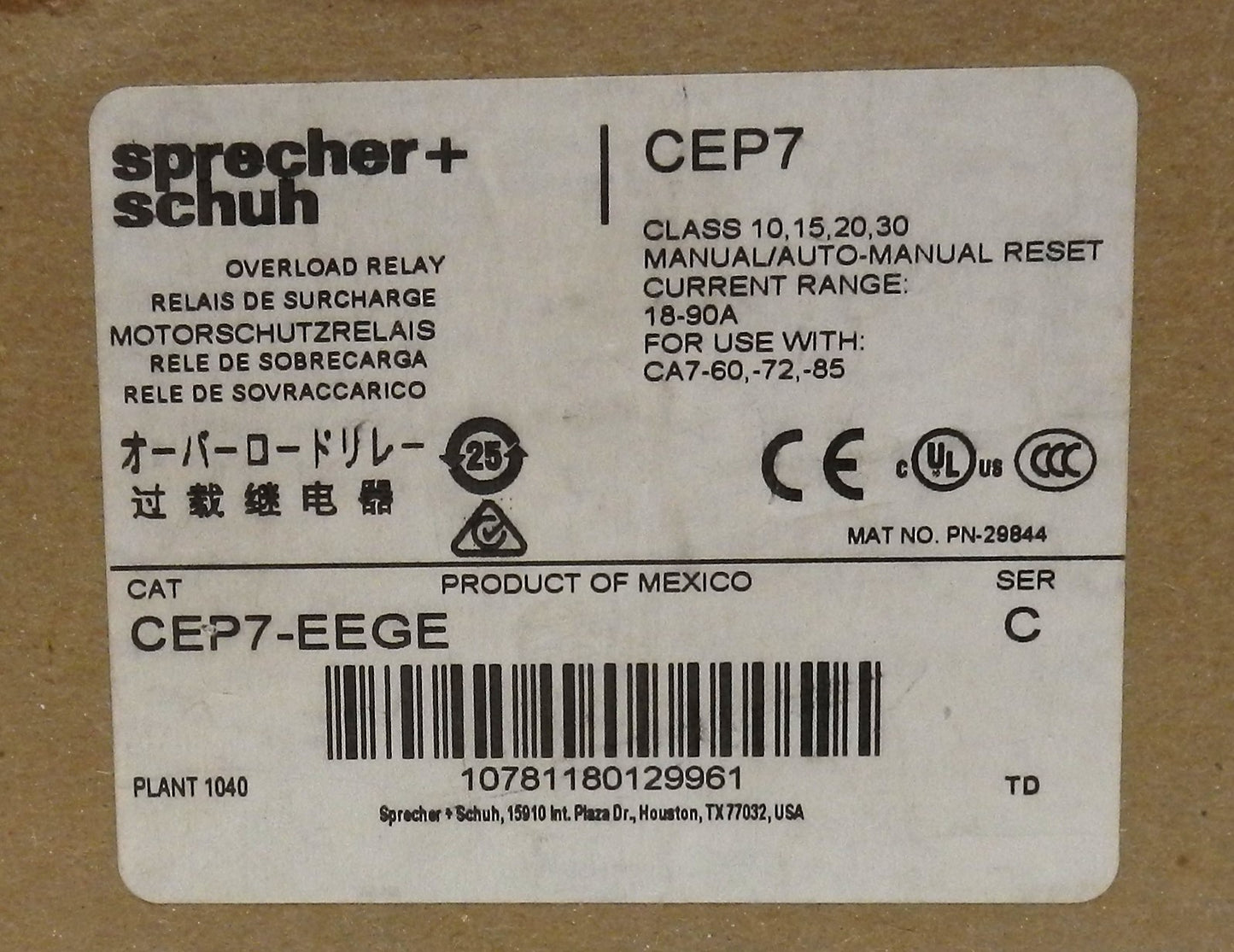

CEP7-EEGE Sprecher + Schuh Electronic Overload Relay 18–90A 3-Phase Adjustable Trip Class

Description:

• Genuine Sprecher + Schuh electronic overload relay for advanced motor protection applications
• Adjustable 18–90 Amp current range with a wide 5:1 adjustment ratio, reducing inventory requirements
• Designed for direct mounting on CA7-60 through CA7-97 contactors
• Self-powered operation eliminates the need for an external control power supply
• Adjustable Trip Class 10, 15, 20, and 30 for flexible motor protection
• Features automatic or manual reset selection to suit application requirements
• Provides advanced phase loss detection (typically within 3 seconds) to help prevent motor damage
• Includes 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts for trip and alarm signaling
• Low-voltage compatible contacts (17V, 5mA) make it suitable for PLC and automation systems
• Built-in test function and visible trip indicator simplify commissioning and troubleshooting
• Ideal for industrial motor starters, conveyors, pumps, compressors, HVAC equipment, manufacturing machinery, and OEM control panels.

Specifications:

• Manufacturer Name: Sprecher + Schuh
• Part Number (MPN): CEP7-EEGE
• Product Series: CEP7-E
• Product Type: Electronic Overload Relay
• Current Adjustment Range: 18–90 A
• Adjustment Ratio: 5:1
• Number of Phases: 3
• Compatible Contactors:
  • CA7-60
  • CA7-72
  • CA7-85
  • CA7-97
• Trip Class:
  • 10
  • 15
  • 20
  • 30
• Reset Type:
  • Automatic
  • Manual
• Auxiliary Contacts:
  • 1 NO
  • 1 NC
• Test Button: Yes
• Visible Trip Indicator: Yes
• Rated Operational Voltage: 690 VAC
• Approximate Motor Rating:
  • 11–45 kW @ 415 VAC
• Phase Failure Detection: Advanced Electronic Detection
• Mounting: Direct Mount to Compatible CA7 Contactors
• Applications:
  • Motor Protection
  • Motor Starters
  • Industrial Automation
  • Pump Control
  • HVAC Systems
  • Conveyors
  • Compressors
  • OEM Machinery

Dimensions:

• Compact direct-mount design for CA7-60 to CA7-97 contactors.
• Designed to mount directly to compatible Sprecher + Schuh contactors without additional adapters.

Weight:

• Approximate Weight: 0.64 kg (1.40 lb).
