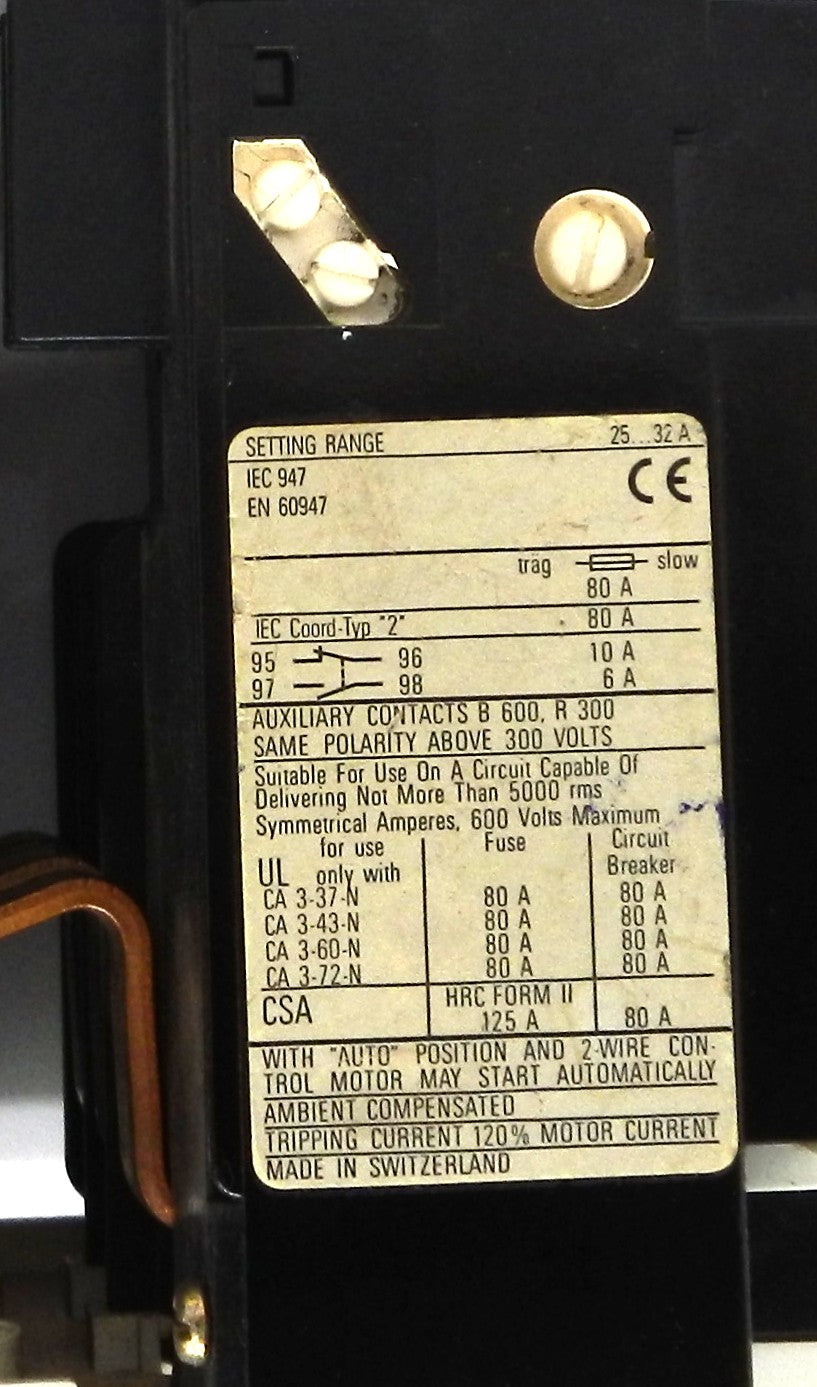

CA3-37-N-11 Sprecher + Schuh 37A 3-Pole IEC Contactor 1NO+1NC Auxiliary No Coil

Description:

• Sprecher + Schuh CA3 Series non-reversing IEC contactor designed for industrial motor control and automation applications
• Rated at 37 Amps (AC-3) with 3 Normally Open (3 NO) main power contacts
• Factory-installed 1 Normally Open (1 NO) and 1 Normally Closed (1 NC) auxiliary contacts for control and interlocking circuits
• No coil included, allowing the appropriate AC or DC coil to be selected separately
• Compact DIN rail or panel mount design for easy installation in industrial control cabinets
• Screw terminal connections provide secure and vibration-resistant wiring
• Suitable for switching motors, pumps, compressors, conveyors, HVAC equipment, and industrial machinery
• Compatible with Sprecher + Schuh CA3 Series coils, overload relays, and auxiliary accessories
• Rugged industrial construction provides long electrical and mechanical service life
• Discontinued by the manufacturer, making it an ideal replacement or spare for existing systems.

Specifications:

• Manufacturer Name: Sprecher + Schuh
• Part Number (MPN): CA3-37-N-11
• Product Series: CA3
• Product Type: IEC Contactor
• Rated Operational Current (AC-3): 37 A
• Main Contacts: 3 Normally Open (3 NO)
• Auxiliary Contacts: 1 Normally Open (1 NO) + 1 Normally Closed (1 NC)
• Coil: No Coil Installed
• Rated Operational Voltage: Up to 690 VAC
• Terminal Type: Screw Terminals
• Mounting Type: 35 mm DIN Rail or Panel Mount
• Standards: IEC 60947, UL Listed, CSA Certified
• Application: Motor Control, Industrial Automation, Conveyors, Pumps, Compressors, HVAC Equipment, OEM Machinery, Control Panels.

Dimensions:

• Compact IEC contactor design
• DIN rail and panel mounting compatible
• Space-saving construction for industrial control panels.

Weight:

• Approximate Weight: 1.0 kg (2.2 lb).
