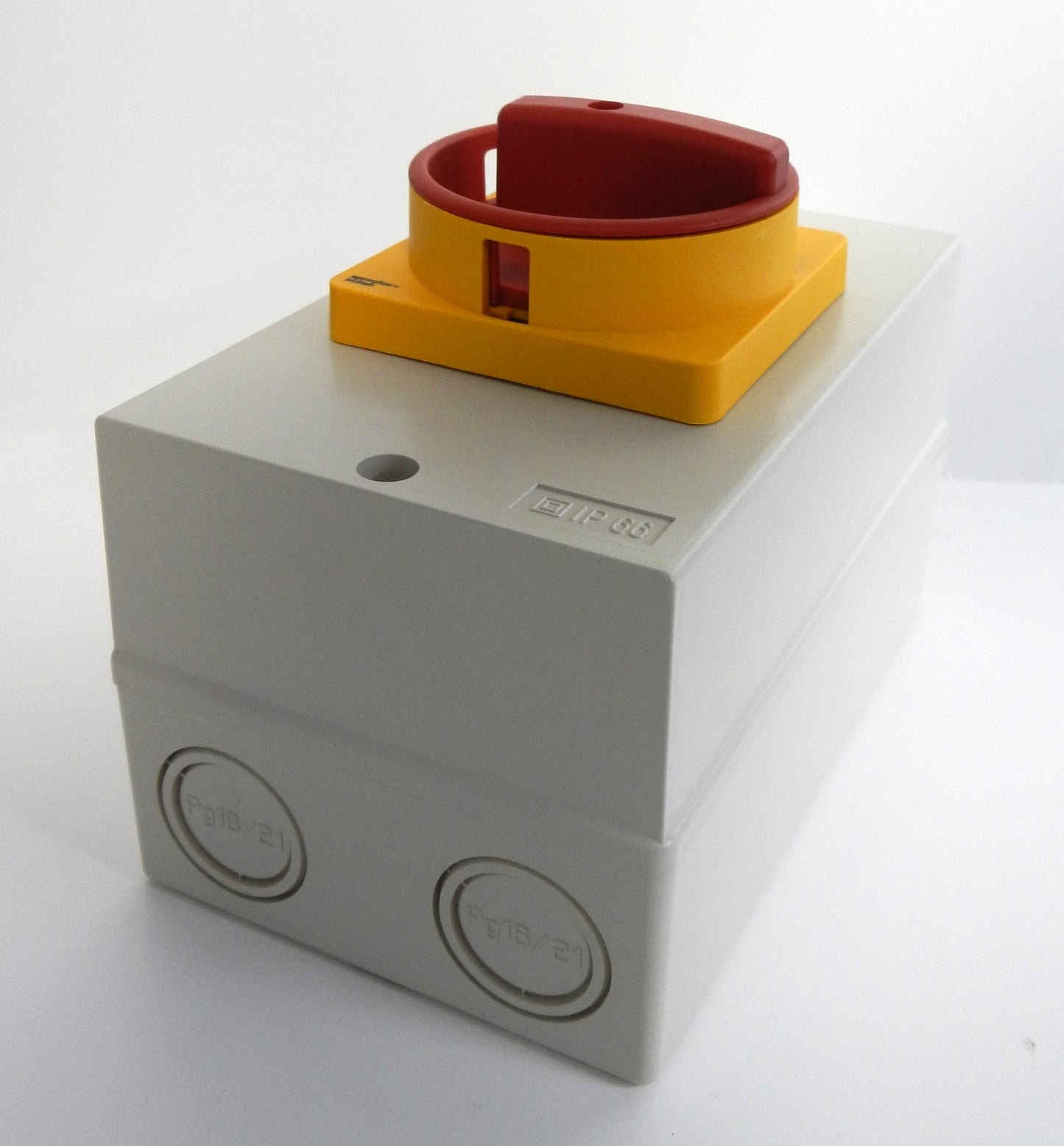

LA7251753N6N Sprecher + Schuh 25A 3-Pole Motor Disconnect Switch IP66 Base Mounted

Description:

• Genuine Sprecher + Schuh motor disconnect switch for industrial motor isolation and machine safety applications
• Rated 25 Amps with 3 poles for reliable three-phase motor disconnect and isolation
• Base-mounted design with 90° ON/OFF operation for convenient installation in industrial control panels
• IP66-rated enclosure protection helps prevent dust ingress and protects against powerful water jets
• Suitable for safely disconnecting motors, machinery, HVAC equipment, pumps, conveyors, compressors, and industrial equipment
• UL 508 motor disconnect switch designed for industrial control and motor applications
• Compact, heavy-duty construction provides long service life in demanding environments
• Compatible with optional auxiliary contacts, fourth-pole accessories, shaft extensions, and external operating handles
• Ideal for OEM machinery, manufacturing facilities, industrial automation, and electrical control panels

Specifications:

• Manufacturer Name: Sprecher + Schuh
• Part Number (MPN): LA7251753N6N
• Product Series: LA7
• Product Type: Motor Disconnect Switch
• Rated Current: 25 A
• Number of Poles: 3
• Switch Operation: 90° ON/OFF
• Mounting Type: Base Mounted
• Protection Rating: IP66
• Utilization Category: UL 508 Motor Disconnect
• Horsepower Rating:
  • 5 HP @ 240 VAC (3Ø)
  • 10 HP @ 480 VAC (3Ø)
  • 10 HP @ 600 VAC (3Ø)
  • 1 HP @ 120 VAC (1Ø)
  • 2 HP @ 240 VAC (1Ø)
• Compatible Accessories:
  • Fourth Pole Add-On
  • Auxiliary Contact Blocks
  • Mechanical Interlock
  • Shaft Extensions
  • External Handles
• Applications:
  • Motor Isolation
  • Industrial Control Panels
  • Machine Safety
  • HVAC Systems
  • Conveyor Systems
  • Pumps
  • Compressors
  • OEM Equipment
  • Industrial Automation

Dimensions:

• Height: 63 mm (2.48 in)
• Width: 45 mm (1.77 in)
• Depth: 60 mm (2.36 in)

Weight:

• Approximate Weight: 0.45 kg (0.99 lb).
