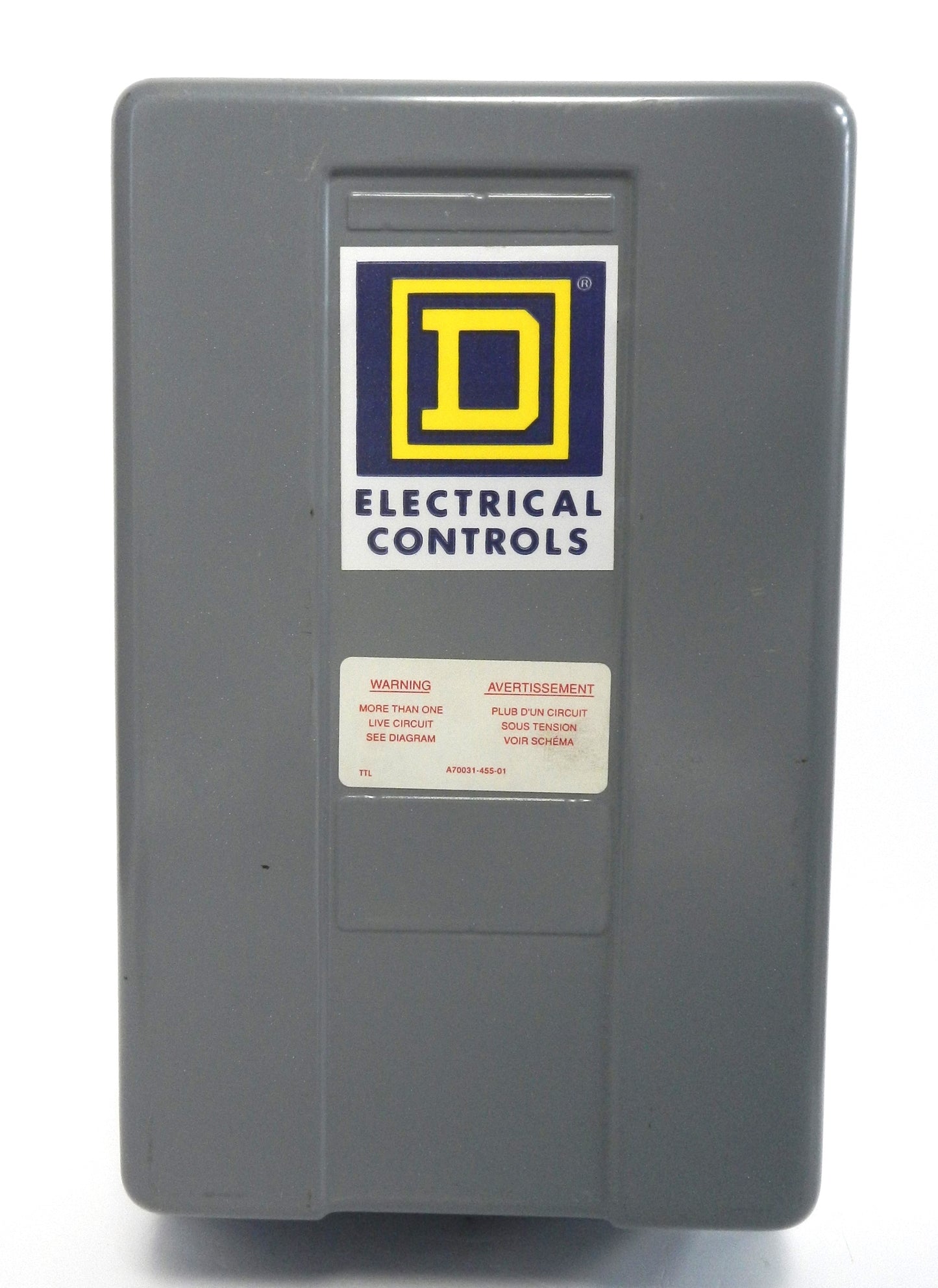

8903LG40V02 Square D 30A 4-Pole Lighting Contactor 120V Coil NEMA 1 Enclosed

Description:

• Genuine Square D by Schneider Electric electrically held lighting contactor for commercial and industrial lighting control
• Rated for 30 Amp fluorescent and 20 Amp tungsten lighting loads
• Equipped with a 110V AC 50 Hz / 120V AC 60 Hz operating coil
• Features 4 Normally Open (4 NO) power poles for multi-circuit lighting control
• Factory-installed in a NEMA 1 painted steel enclosure for indoor applications
• Screw-clamp terminals provide secure and reliable field wiring
• Field-convertible contacts allow NO/NC configuration changes with compatible conversion kits
• Replaceable coil and contact assemblies simplify maintenance and extend service life
• Ideal for warehouses, parking lots, schools, office buildings, commercial facilities, and industrial lighting control systems
• UL Listed and CSA Certified for dependable commercial and industrial applications.

Specifications:

• Manufacturer Name: Square D (Schneider Electric)
• Part Number (MPN): 8903LG40V02
• Product Series: 8903L
• Product Type: Electrically Held Lighting Contactor
• Current Rating:
  • 30 A Fluorescent
  • 20 A Tungsten
• Number of Poles: 4
• Contact Configuration: 4 Normally Open (4 NO)
• Coil Voltage:
  • 110 VAC, 50 Hz
  • 120 VAC, 60 Hz
• Maximum Voltage: 600 VAC
• Enclosure Type: NEMA 1 Painted Steel
• Electrical Connection: Screw-Clamp Terminals
• Hold-In Power Consumption:
  • 30 VA @ 50/60 Hz
• Inrush Power:
  • 140 VA @ 50 Hz
  • 150 VA @ 60 Hz
• Certifications:
  • UL Listed
  • CSA Certified
• Applications:
  • Commercial Lighting Control
  • Industrial Lighting Systems
  • Parking Lot Lighting
  • Warehouse Lighting
  • Building Automation
  • HVAC Control
  • Industrial Automation

Dimensions:

• Height: 322 mm (12.68 in)
• Width: 198 mm (7.80 in)
• Depth: 153 mm (6.02 in)

Weight:

• Approximate Weight: 4.58 kg (10.1 lb).
