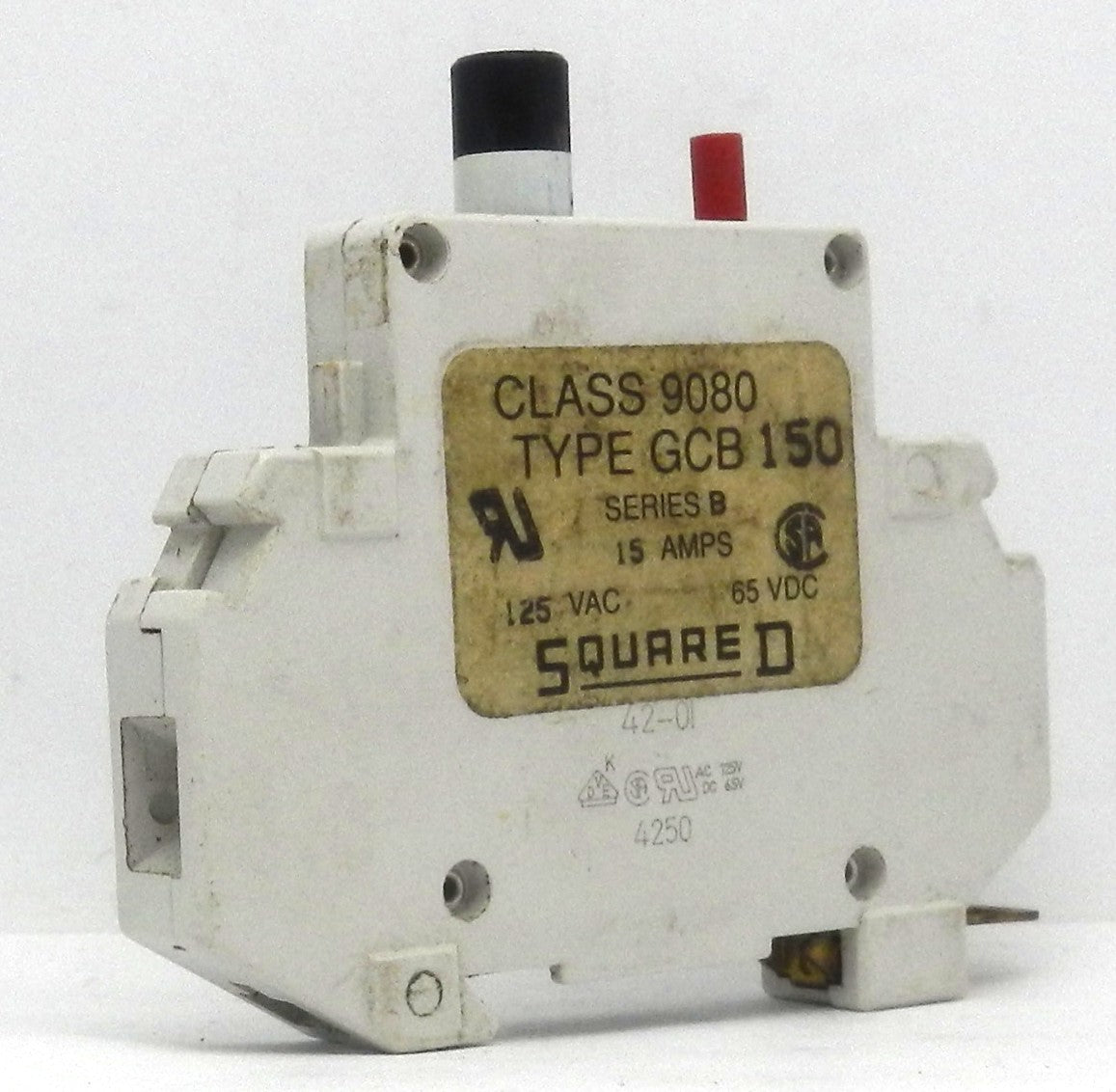

9080GCB150 Square D Thermal-Magnetic Circuit Breaker 15A 1 Pole 125VAC 65VDC Track Mount

Description:

• Thermal-magnetic circuit breaker designed for industrial control panel overcurrent protection
• Rated at 15A with a single-pole configuration
• Supports 125 VAC and 65 VDC control circuits
• Track-mount and 35 mm DIN rail compatible for flexible installation
• Trip-free thermal-magnetic mechanism protects against overloads and short circuits
• Visual trip indication for quick fault identification
• Compact design allows high-density panel installations
• Box lug terminals accept 16–10 AWG copper conductors
• UL Recognized, CSA Certified, and CE marked for industrial applications
• Ideal for material handling, packaging, conveyors, building automation, and process equipment.

Specifications:

• Manufacturer Name: Square D (Schneider Electric)
• Part Number (MPN): 9080GCB150
• Product Series: 9080 GCB
• Product Type: Thermal-Magnetic Circuit Breaker / Circuit Protector
• Current Rating: 15 A
• Number of Poles: 1 Pole
• Voltage Rating: 125 VAC / 65 VDC
• Trip Type: Thermal-Magnetic
• Mounting Type: 35 mm DIN Rail / Square D GH Track
• Terminal Type: Box Lug
• Wire Size: 16–10 AWG Copper
• Standards: UL 1077, CSA C22.2 No. 235, DIN 57470
• Certifications: UL Recognized, CSA, CE
• Application: Industrial Control Panels, Automation Equipment, Material Handling, Packaging, and Process Control.

Dimensions:

• Height: 87.6 mm (3.45 in)
• Width: 80 mm (3.15 in)
• Depth: 12.7 mm (0.5 in).

Weight:

• Approximate Weight: 72.6 g (2.56 oz)
• Compact industrial circuit protector construction.
