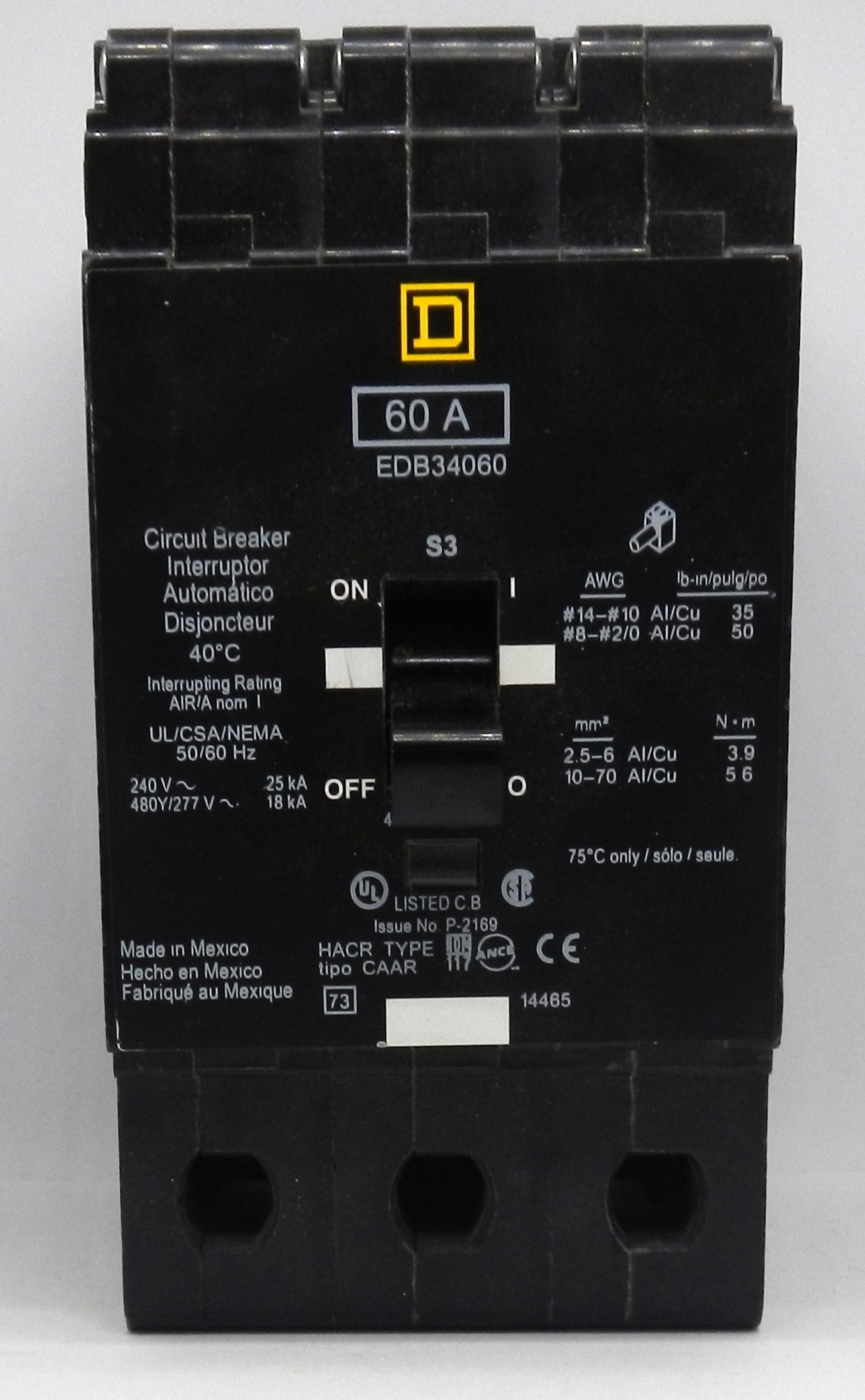

EDB34060 Square D 60A 3-Pole Molded Case Circuit Breaker 480Y/277VAC Bolt-On Thermal Magnetic

Description:

• Genuine Square D by Schneider Electric molded case circuit breaker for industrial and commercial electrical distribution systems
• Provides 3-pole, 60 Amp overcurrent and short-circuit protection
• Rated for 480Y/277 VAC three-phase applications
• Bolt-on mounting design for installation in compatible Square D NF panelboards
• Thermal-magnetic trip unit provides reliable overload and instantaneous short-circuit protection
• Standard interrupting capacity with 18 kA @ 480Y/277 VAC and 25 kA @ 240 VAC
• Features a built-in trip indicator for quick status identification
• HACR-rated for HVAC equipment and suitable for lighting and distribution panel applications
• Ideal for industrial automation, manufacturing facilities, commercial buildings, motor control, and electrical distribution systems.

Specifications:

• Manufacturer Name: Square D by Schneider Electric
• Part Number (MPN): EDB34060
• Product Series: EDB Series
• Product Type: Molded Case Circuit Breaker
• Frame Size: E-Frame
• Number of Poles: 3
• Rated Current: 60 A
• Maximum Operating Voltage: 480Y/277 VAC
• Frequency: 50/60 Hz
• Trip Unit: Thermal-Magnetic
• Mounting Type: Bolt-On
• Breaking Capacity:
  • 18 kA @ 480Y/277 VAC
  • 18 kA @ 277 VAC
  • 25 kA @ 240 VAC
  • 25 kA @ 120/240 VAC
• Electrical Connections:
  • AWG 14–2/0 Copper
  • AWG 12–2/0 Aluminum
• Protection:
  • Overload
  • Short-Circuit
• Application:
  • NF Panelboards
  • HACR Rated
• Certifications:
  • cULus Listed

Dimensions:

• Height: 5.66 in (143.8 mm)
• Width: 2.94 in (74.7 mm)
• Depth: 4.05 in (102.9 mm)

Weight:

• Approximate Weight: 1.81 kg (4.0 lb).
