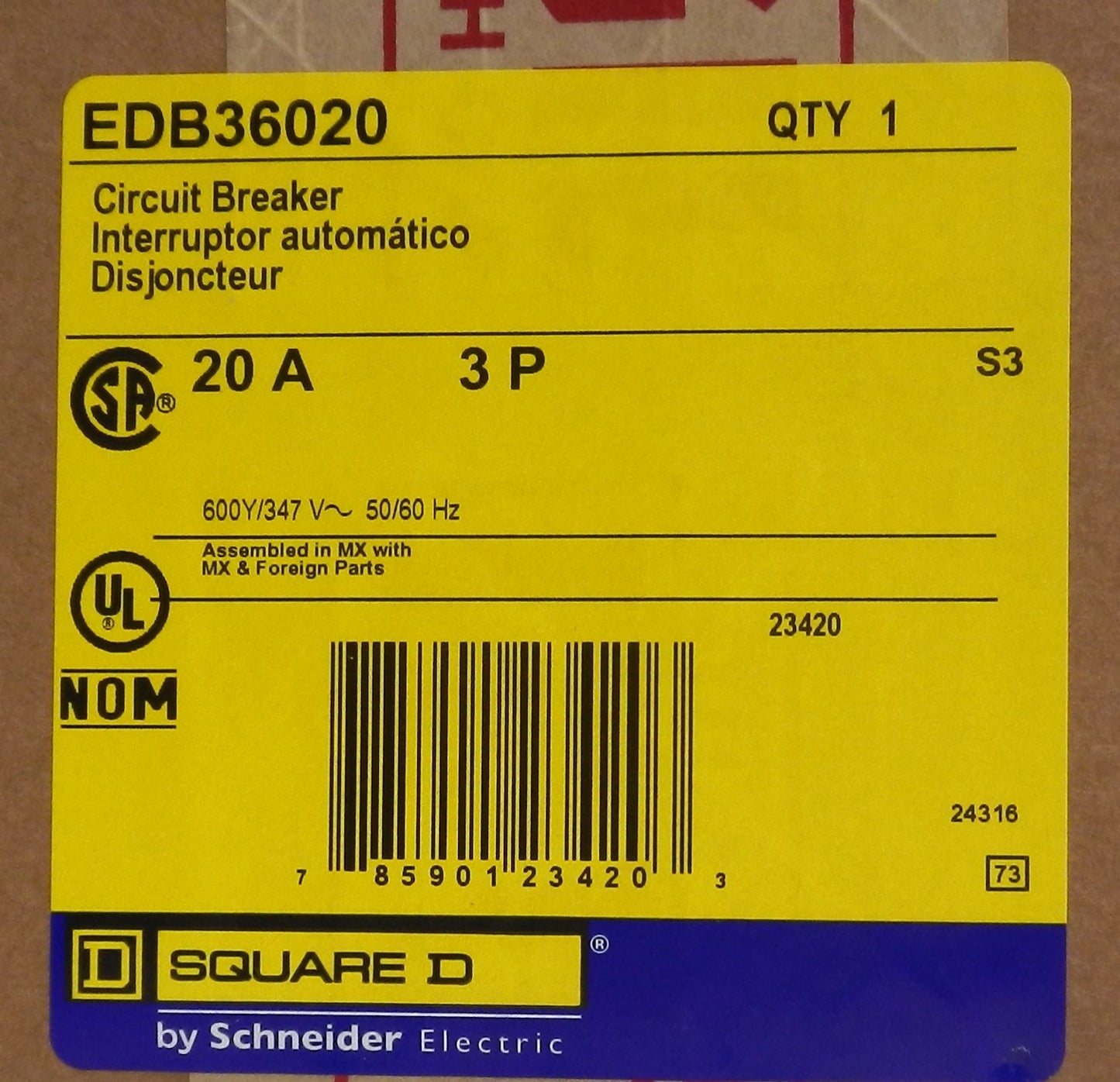

EDB36020 Square D Molded Case Circuit Breaker 20A 3-Pole 600Y/347VAC Thermal Magnetic Bolt-On

Description:

• Genuine Square D by Schneider Electric molded case circuit breaker for industrial electrical distribution and branch circuit protection
• Provides 20 Amp, 3-pole overcurrent and short-circuit protection
• Rated for 600Y/347 VAC three-phase electrical systems
• Thermal-magnetic trip unit delivers dependable overload and instantaneous short-circuit protection
• Bolt-on mounting design for secure installation in compatible Square D NF panelboards
• Compact E-Frame construction suitable for commercial and industrial applications
• HACR-rated and HID-rated for HVAC equipment and high-intensity discharge lighting circuits
• Trip indicator simplifies troubleshooting after breaker operation
• Ideal for industrial automation, commercial buildings, OEM equipment, motor control, and electrical distribution systems
• Compatible with copper or aluminum conductors from 14 AWG to 6 AWG.

Specifications:

• Manufacturer Name: Square D (Schneider Electric)
• Part Number (MPN): EDB36020
• Product Series: EDB
• Product Type: Molded Case Circuit Breaker
• Number of Poles: 3
• Rated Current: 20 A
• Rated Voltage: 600Y/347 VAC
• Trip Unit: Thermal-Magnetic
• Breaking Capacity: 14 kA @ 600Y/347 VAC
• Frame Size: E-Frame
• Mounting Type: Bolt-On
• Connection Type: Bolt-On
• Compatible Panelboards: Square D NF Series
• Wire Size:
  • 14–6 AWG Copper
  • 14–6 AWG Aluminum
• Calibration Temperature: 40°C
• Applications:
  • Branch Circuit Protection
  • Industrial Control Panels
  • Commercial Electrical Distribution
  • HVAC Equipment
  • HID Lighting Systems
  • Motor Protection
  • OEM Equipment

Dimensions:

• Height: 5.66 in (143.8 mm)
• Width: 2.94 in (74.7 mm)
• Depth: 4.05 in (102.9 mm)

Weight:

• Approximate Weight: 1.81 kg (4.0 lb).
