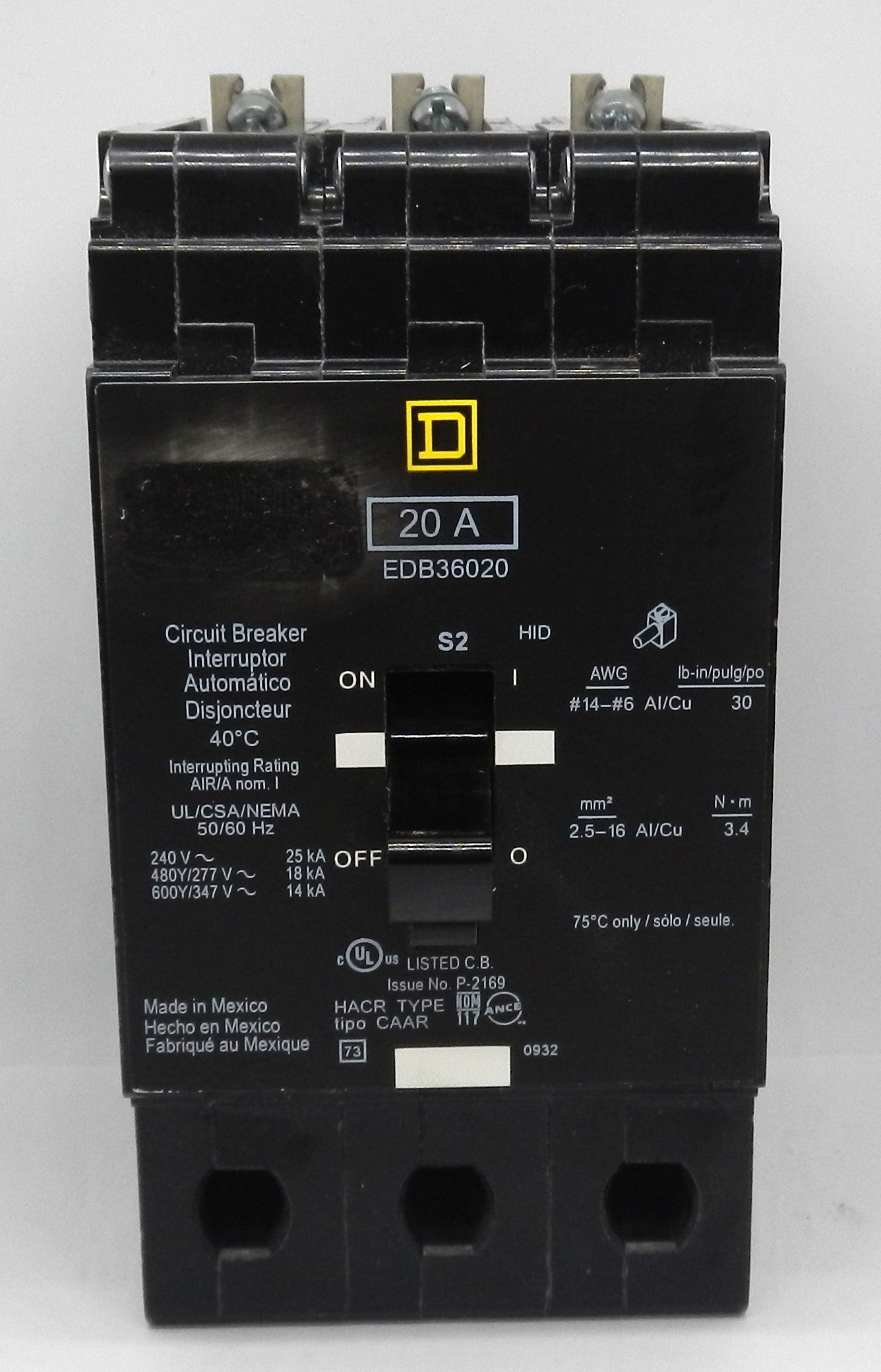

EDB36020 Square D Molded Case Circuit Breaker 20A 3-Pole 600Y/347VAC E-Frame Bolt-On

Description:

• Genuine Square D by Schneider Electric molded case circuit breaker for industrial power distribution and panelboard protection
• Provides 3-pole, 20 Amp overcurrent protection for commercial and industrial electrical systems
• Designed for 600Y/347 VAC three-phase applications
• Features a thermal-magnetic trip unit for dependable overload and short-circuit protection
• Bolt-on mounting for secure installation in compatible Square D NF panelboards
• E-Frame design engineered for lighting and distribution panel applications
• Includes a trip indicator for quick identification of breaker status after a fault
• Suitable for HID-rated and HACR-rated applications
• Ideal for industrial automation, electrical distribution, commercial buildings, OEM equipment, manufacturing facilities, and control panels.

Specifications:

• Manufacturer Name: Square D by Schneider Electric
• Part Number (MPN): EDB36020
• Product Series: EDB
• Product Type: Molded Case Circuit Breaker
• Frame Size: E-Frame
• Number of Poles: 3
• Rated Current: 20 A
• Rated Voltage: 600Y/347 VAC
• Mounting Type: Bolt-On
• Trip Unit: Thermal-Magnetic
• Breaking Capacity:
  • 14 kA @ 600Y/347 VAC
  • 18 kA @ 480Y/277 VAC
  • 25 kA @ 240 VAC
• Interrupting Rating: 14 kA @ 600Y/347 VAC
• Connection Type: Aluminum/Copper Lugs
• Wire Range:
  • Copper: AWG 14–6
  • Aluminum: AWG 12–6
• Panelboard Compatibility: Square D NF Panelboards
• Standards:
  • UL Listed
  • CSA Certified
  • RoHS Compliant
• Applications:
  • Branch Circuit Protection
  • Industrial Control Panels
  • Commercial Buildings
  • Manufacturing Equipment
  • Electrical Distribution
  • Lighting Panelboards
  • HVAC Systems

Dimensions:

• Height: 5.66 in (144 mm)
• Width: 2.94 in (75 mm)
• Depth: 4.05 in (103 mm)

Weight:

• Approximate Weight: 1.36 kg (3.0 lb).
