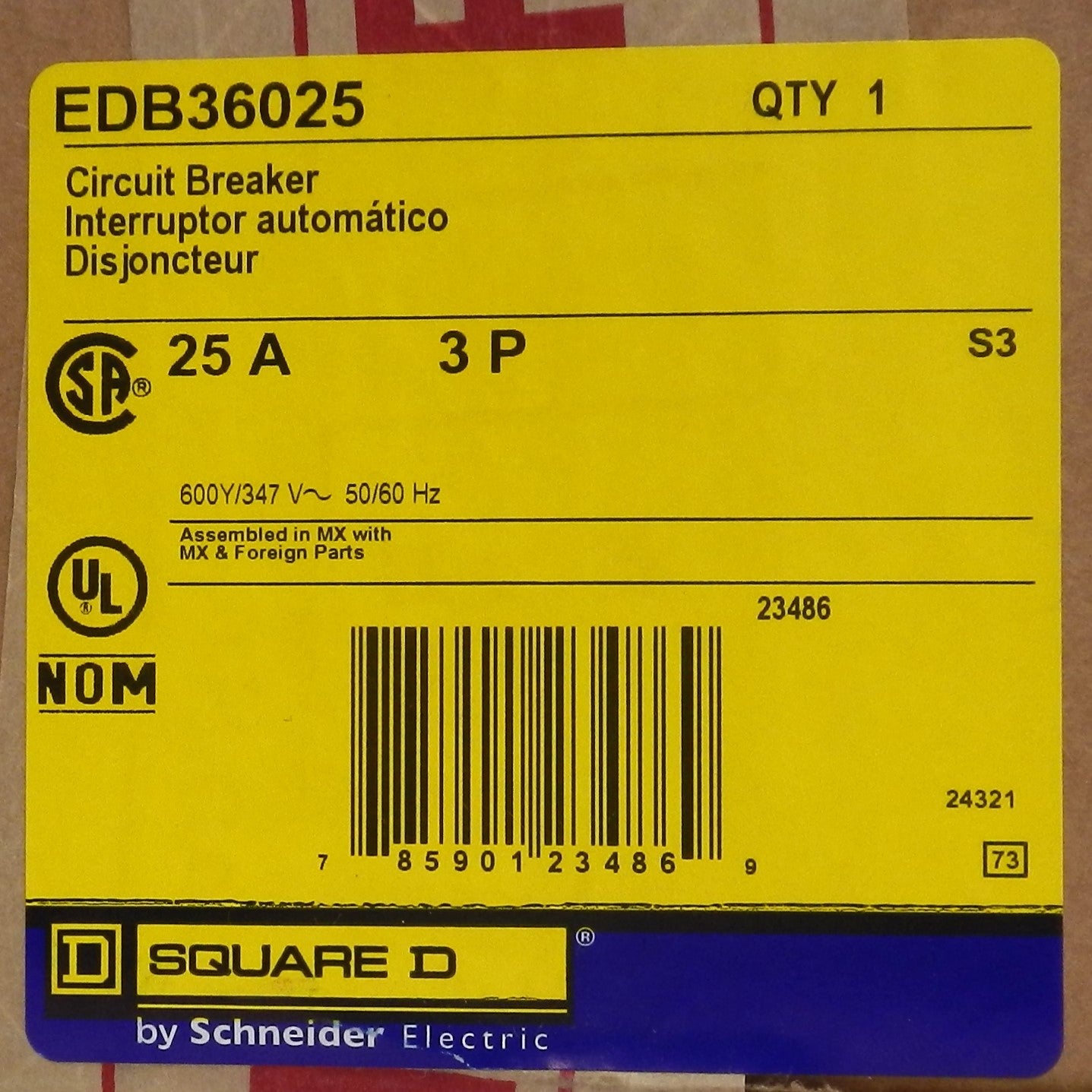

EDB36025 Square D by Schneider Electric 25A 3-Pole 600Y/347VAC Molded Case Circuit Breaker E-Frame Bolt-On

Description:

• Genuine Square D by Schneider Electric molded case circuit breaker for commercial and industrial power distribution
• Provides 25 Amp, 3-pole protection for three-phase electrical systems
• Rated for 600Y/347 VAC applications
• Thermal-magnetic trip unit provides reliable overload and short-circuit protection
• Bolt-on mounting design for secure installation in compatible Square D NF lighting panelboards
• E-Frame breaker with compact footprint for panelboard applications
• Integrated Visi-Trip™ indicator quickly identifies a tripped breaker for faster troubleshooting
• HACR rated and suitable for lighting panelboard installations
• Ideal for commercial buildings, industrial facilities, electrical distribution systems, motor loads, and OEM equipment
• Designed for dependable long-term performance in demanding electrical applications.

Specifications:

• Manufacturer Name: Schneider Electric (Square D)
• Part Number (MPN): EDB36025
• Product Series: EDB
• Product Type: Molded Case Circuit Breaker
• Frame Size: E-Frame
• Number of Poles: 3
• Rated Current: 25 A
• Rated Voltage: 600Y/347 VAC
• Mounting Type: Bolt-On
• Trip Unit: Thermal-Magnetic
• Interrupting Rating:
  • 25 kA @ 240 VAC
  • 18 kA @ 480Y/277 VAC
  • 14 kA @ 600Y/347 VAC
• Connection:
  • Line Side: Screw Terminal
  • Load Side: Lugs
• Operating Temperature Calibration: 40°C
• Local Indication: Visi-Trip™ Trip Indicator
• Certifications:
  • UL Listed
  • CSA Certified
  • HACR Rated
• Typical Applications:
  • NF Lighting Panelboards
  • Commercial Buildings
  • Industrial Facilities
  • Power Distribution
  • Motor Protection
  • OEM Equipment

Dimensions:

• Height: 5.66 in (143.8 mm)
• Width: 2.94 in (74.7 mm)
• Depth: 4.05 in (102.9 mm)

Weight:

• Approximate Weight: 4.0 lb (1.81 kg).
