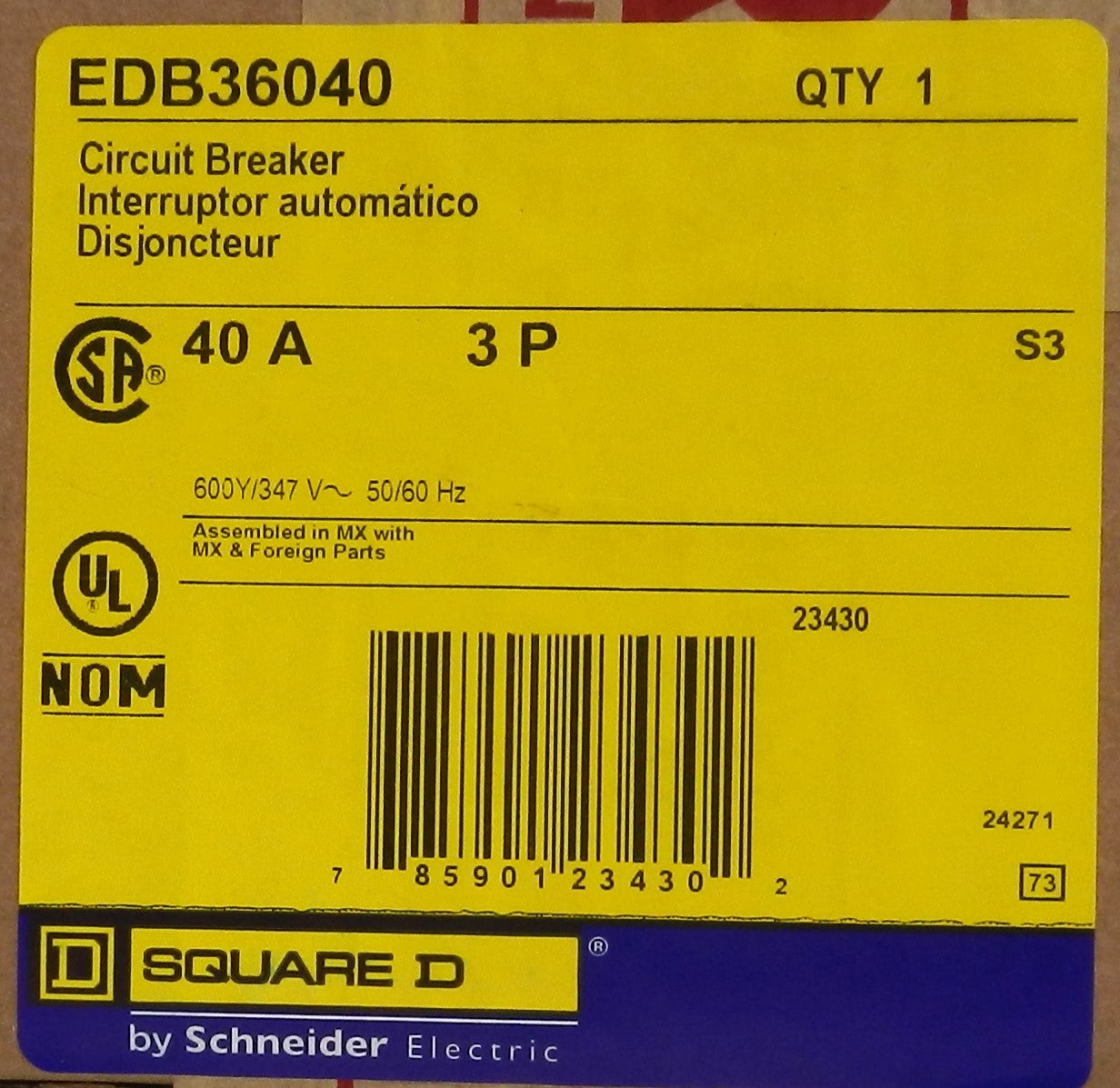

EDB36040 Square D Molded Case Circuit Breaker 40A 3-Pole 600Y/347VAC Bolt-On E-Frame

Description:

• Genuine Square D by Schneider Electric molded case circuit breaker for industrial and commercial power distribution
• Provides 40 Amp, 3-pole overcurrent and short-circuit protection
• Rated for 600Y/347 VAC three-phase electrical systems
• Bolt-on mounting design for secure installation in Square D NF panelboards
• Thermal-magnetic trip unit provides dependable overload and instantaneous short-circuit protection
• E-Frame molded case breaker with trip indication for simplified maintenance and diagnostics
• Suitable for HACR and HID applications
• Designed for industrial control panels, commercial buildings, OEM equipment, manufacturing facilities, and electrical distribution systems
• Compatible with copper and aluminum conductors using factory-installed lugs.

Specifications:

• Manufacturer Name: Schneider Electric / Square D
• Part Number (MPN): EDB36040
• Product Series: EDB Series
• Product Type: Molded Case Circuit Breaker (MCCB)
• Frame Size: E-Frame
• Number of Poles: 3
• Rated Current: 40 A
• Maximum Operating Voltage: 600Y/347 VAC
• Trip Unit: Thermal-Magnetic
• Mounting Type: Bolt-On
• Breaking Capacity:
  • 25 kA @ 240 VAC
  • 18 kA @ 480Y/277 VAC
  • 14 kA @ 600Y/347 VAC
• Protection:
  • Overload Protection
  • Short-Circuit Protection
• Product Destination: Square D NF Panelboards
• Electrical Connections:
  • Copper: AWG 14–2/0
  • Aluminum: AWG 12–2/0
• Tightening Torque:
  • 34.5 lbf·in (AWG 14–10)
  • 49.6 lbf·in (AWG 8–2/0)
• Certifications:
  • UL Listed
  • CSA Certified
• Applications:
  • Commercial Electrical Distribution
  • Industrial Control Panels
  • Manufacturing Facilities
  • HVAC Equipment
  • OEM Machinery
  • Power Distribution Systems

Dimensions:

• Height: 143.8 mm (5.66 in)
• Width: 74.7 mm (2.94 in)
• Depth: 102.9 mm (4.05 in)

Weight:

• Approximate Weight: 1.8 kg (4.0 lb).
