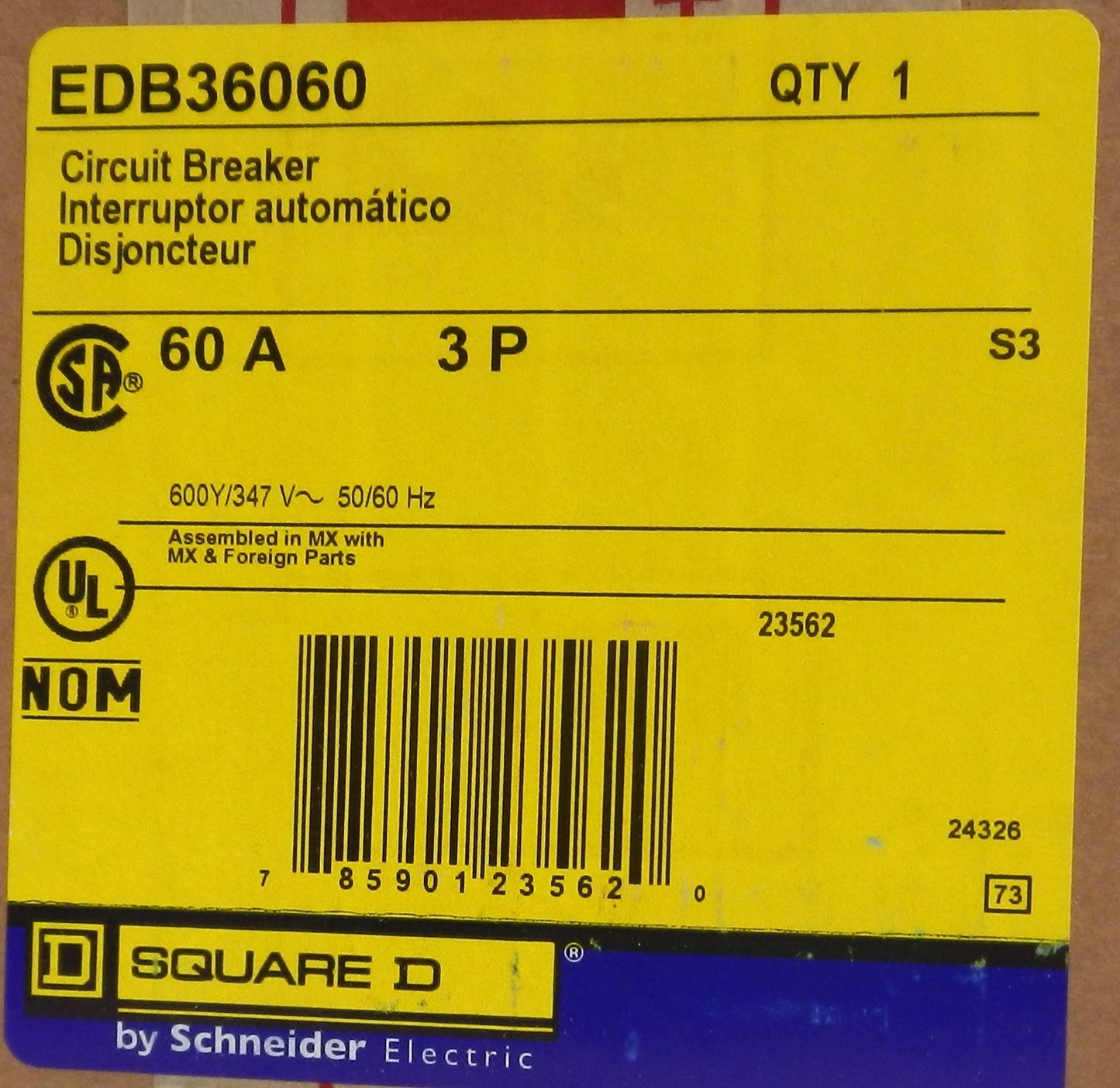

EDB36060 Square D Molded Case Circuit Breaker 60A 3-Pole 600V Thermal Magnetic Bolt-On

Description:

• Genuine Square D by Schneider Electric molded case circuit breaker for industrial and commercial electrical distribution systems
• Provides 3-pole, 60 Amp overcurrent and short-circuit protection
• Rated for 600Y/347 VAC applications with thermal-magnetic trip protection
• Bolt-on mounting design for installation in compatible Square D NF panelboards
• Features long-time and instantaneous (LI) trip characteristics for dependable circuit protection
• Suitable for protecting feeders, branch circuits, motor loads, HVAC systems, lighting panels, and industrial equipment
• Compact E-Frame design with high interrupting capacity for demanding applications
• UL 489 listed and CSA certified for commercial and industrial use
• Ideal for manufacturing facilities, commercial buildings, OEM equipment, control panels, and electrical distribution systems.

Specifications:

• Manufacturer Name: Square D by Schneider Electric
• Part Number (MPN): EDB36060
• Product Series: EDB Series / PowerPact B
• Product Type: Molded Case Circuit Breaker (MCCB)
• Rated Current: 60 A
• Number of Poles: 3
• Rated Voltage:
  • 600Y/347 VAC
  • 250 VDC
• Frequency: 50/60 Hz
• Trip Unit: Thermal-Magnetic
• Mounting Type: Bolt-On
• Frame Size: E-Frame
• Interrupting Rating (UL 489):
  • 25 kA @ 208Y/120 VAC
  • 25 kA @ 240 VAC
  • 18 kA @ 480Y/277 VAC
  • 14 kA @ 600Y/347 VAC
  • 10 kA @ 250 VDC
• Rated Insulation Voltage: 800 V IEC
• Impulse Withstand Voltage: 8 kV
• Mechanical Endurance: 20,000 Operations
• Applications:
  • Industrial Distribution
  • Commercial Electrical Systems
  • Lighting Panelboards
  • Motor Protection
  • HVAC Equipment
  • OEM Machinery
  • Electrical Control Panels

Dimensions:

• Height: 5.66 in (144 mm)
• Width: 2.94 in (75 mm)
• Depth: 4.05 in (103 mm).

Weight:

• Approximate Weight: 1.81 kg (4.0 lb).
