EGB16020 Square D 20A 1-Pole Miniature Circuit Breaker 600Y/347VAC Bolt-On Thermal Magnetic

Description:

• Genuine Square D by Schneider Electric miniature circuit breaker for industrial panelboard and branch circuit protection
• Provides 1-pole, 20 Amp overcurrent protection for commercial and industrial electrical systems
• Rated for 600Y/347 VAC operation with a thermal-magnetic trip unit
• Bolt-on mounting designed for installation in compatible Square D NF panelboards
• Delivers reliable overload and short-circuit protection for lighting and power distribution circuits
• Features a trip indicator for quick identification of tripped breakers
• Suitable for HACR and HID applications

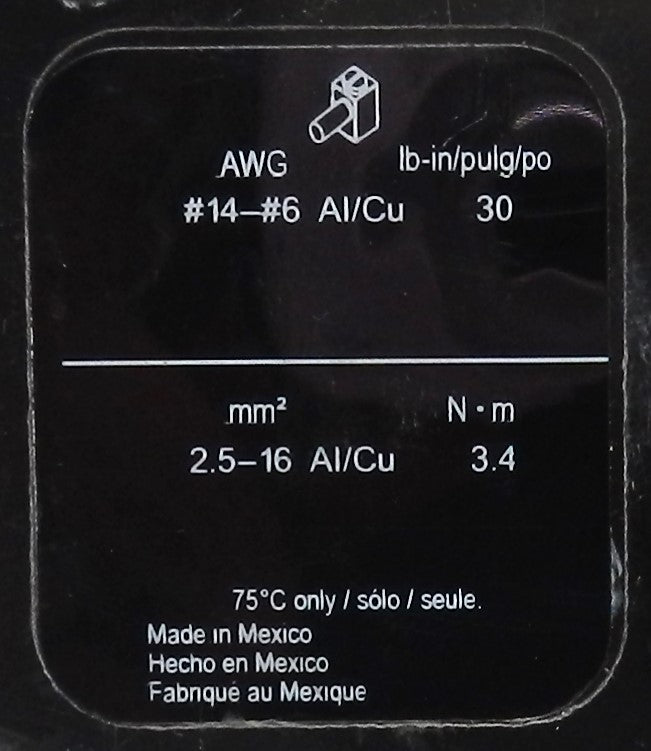

• Accepts AWG 14–6 copper or AWG 12–6 aluminum conductors
• Ideal for commercial buildings, industrial facilities, OEM equipment, control panels, and electrical distribution systems

Specifications:

• Manufacturer Name: Square D by Schneider Electric
• Part Number (MPN): EGB16020
• Product Series: EGB (E-Frame)
• Product Type: Miniature Circuit Breaker
• Number of Poles: 1
• Rated Current: 20 A
• Maximum Operating Voltage: 600Y/347 VAC
• Mounting Type: Bolt-On
• Trip Unit: Thermal-Magnetic
• Breaking Capacity:
  • 18 kA @ 600Y/347 VAC (EGB Series)
• Protection:
  • Overload Protection
  • Short-Circuit Protection
• Circuit Breaker Application:
  • HACR Rated
  • HID Rated
• Electrical Connections:
  • AWG 14–6 Copper
  • AWG 12–6 Aluminum
• Terminal Type: Lug Connection
• Product Destination: Square D NF Panelboards
• Local Indication: Trip Indicator
• Country of Origin: Mexico
• Certifications:
  • UL Listed
  • cULus
  • IEC Certified
• Applications:
  • Industrial Control Panels
  • Commercial Lighting Panels
  • Electrical Distribution
  • OEM Equipment
  • Branch Circuit Protection
  • Manufacturing Facilities

Dimensions:

• Height: 143.8 mm (5.66 in)
• Width: 24.9 mm (0.98 in)
• Depth: 102.9 mm (4.05 in)

Weight:

• Approximate Weight: 0.91 kg (2.0 lb).
