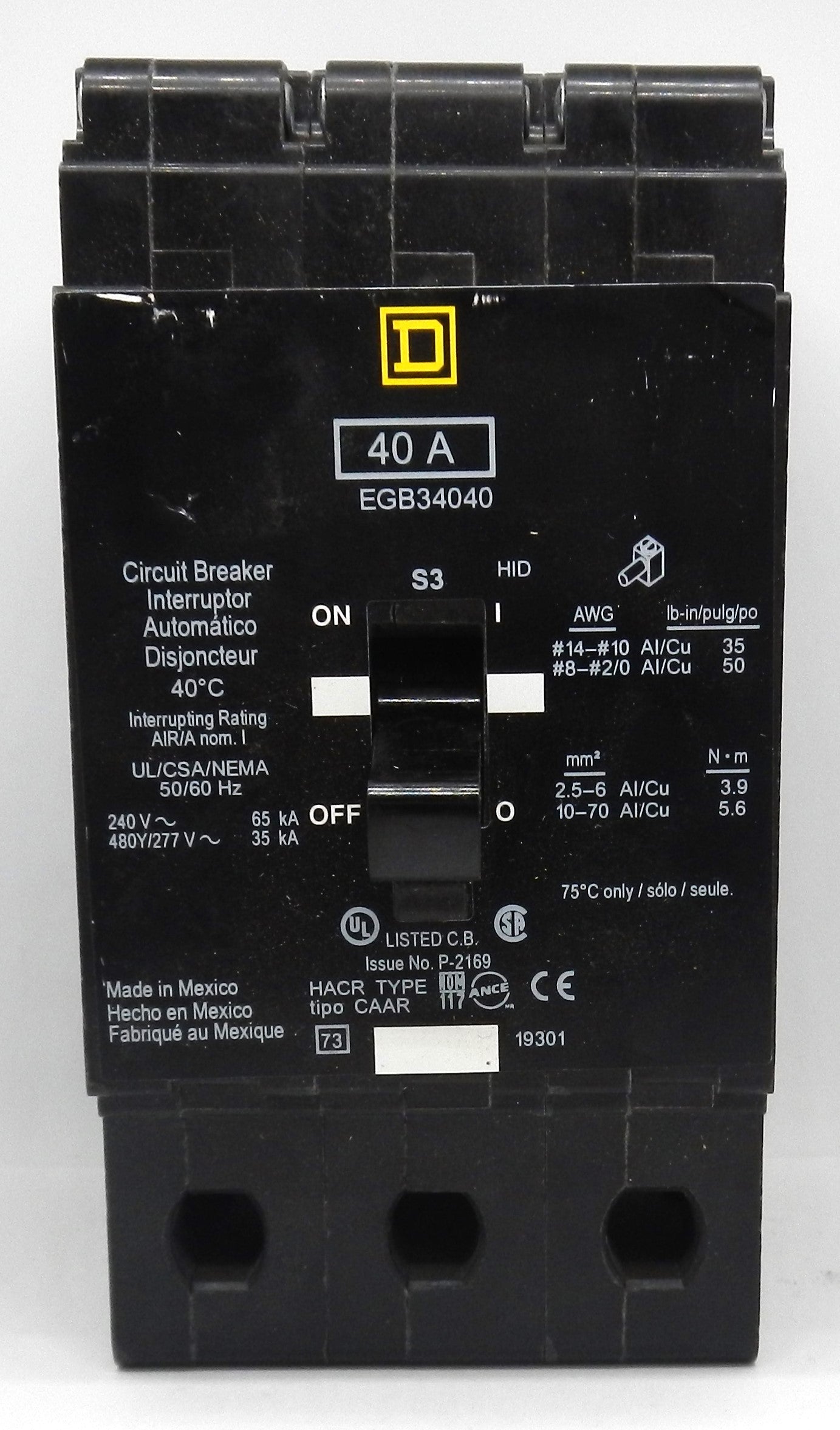

EGB34040 Square D 40A 3-Pole Molded Case Circuit Breaker 480Y/277VAC Bolt-On Thermal Magnetic

Description:

• Genuine Square D by Schneider Electric molded case circuit breaker for commercial and industrial electrical distribution systems
• Provides 3-pole, 40 Amp overcurrent and short-circuit protection for three-phase applications
• Designed for 480Y/277 VAC systems with bolt-on mounting for Square D NF panelboards
• Features a thermal-magnetic trip unit with long-time and instantaneous protection for dependable circuit protection
• Rated 35 kAIC @ 480Y/277 VAC and 65 kAIC @ 120/240 VAC
• Suitable for branch circuit protection, lighting panelboards, HVAC equipment, motor loads, and industrial control systems
• HID and HACR rated for lighting and HVAC applications
• Includes trip indication for simplified troubleshooting and maintenance
• Ideal for commercial buildings, industrial facilities, OEM equipment, and electrical distribution panels.

Specifications:

• Manufacturer Name: Square D by Schneider Electric
• Part Number (MPN): EGB34040
• Product Series: EGB E-Frame
• Product Type: Molded Case Circuit Breaker
• Number of Poles: 3
• Rated Current: 40 A
• Rated Voltage: 480Y/277 VAC
• Mounting Type: Bolt-On
• Trip Unit: Thermal-Magnetic
• Protection Functions:
  • Long-Time Protection
  • Instantaneous Protection
• Interrupt Rating:
  • 35 kAIC @ 480Y/277 VAC
  • 65 kAIC @ 120/240 VAC
• Frame Type: E-Frame
• Connection Type: Bolt-On
• Compatible Panelboards: Square D NF Panelboards
• Terminal Wire Size:
  • AWG 14–6 Copper
  • AWG 12–6 Aluminum
• Certifications:
  • UL Listed
  • CSA Approved
  • HACR Rated
  • HID Rated
• Applications:
  • Commercial Electrical Distribution
  • Industrial Control Panels
  • Motor Protection
  • HVAC Equipment
  • Lighting Panelboards
  • OEM Equipment
  • Three-Phase Power Distribution

Dimensions:

• Height: 5.66 in (143.8 mm)
• Width: 2.94 in (74.7 mm)
• Depth: 4.05 in (102.9 mm).

Weight:

• Approximate Weight: 1.81 kg (4.0 lb).
