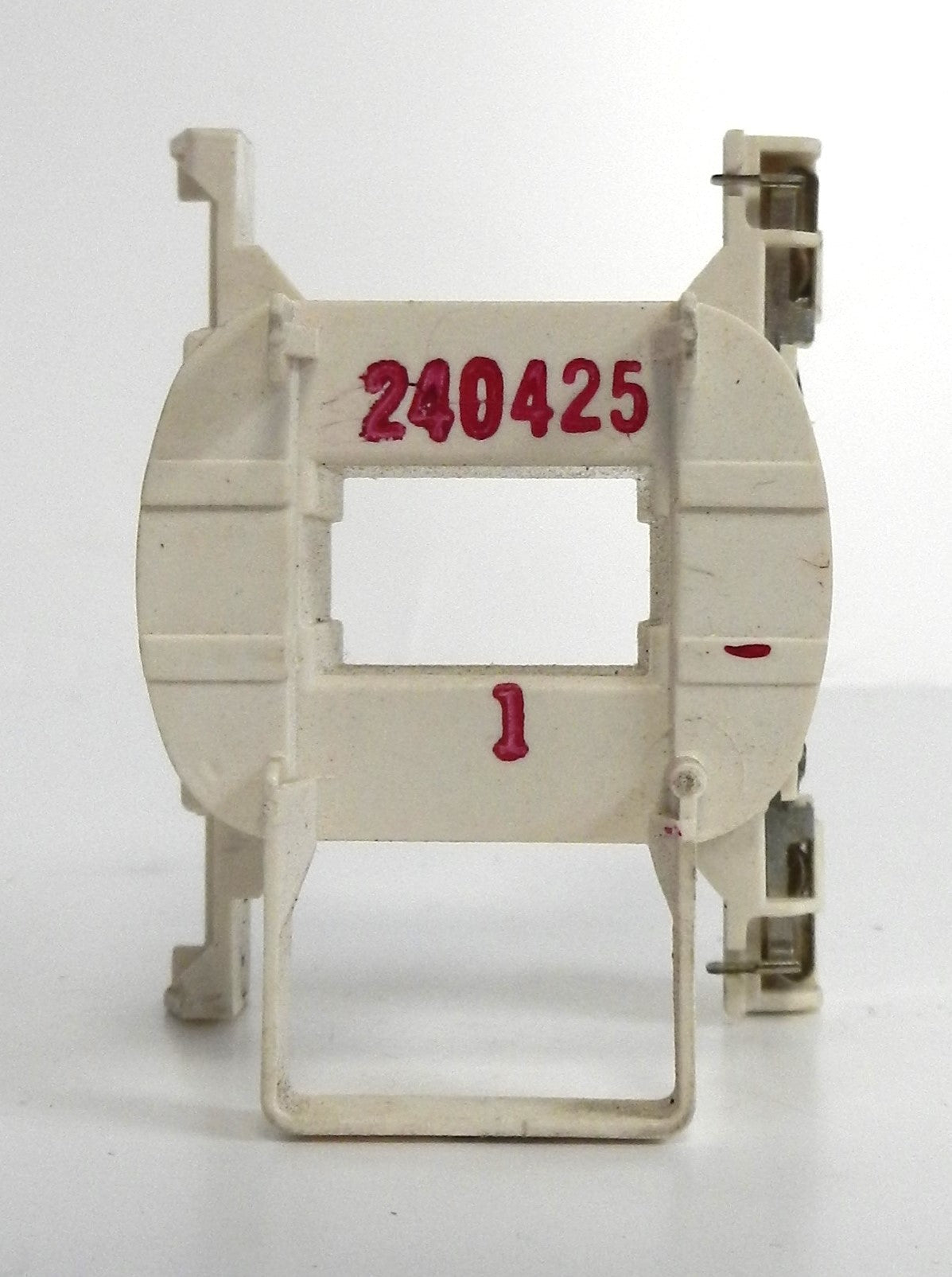

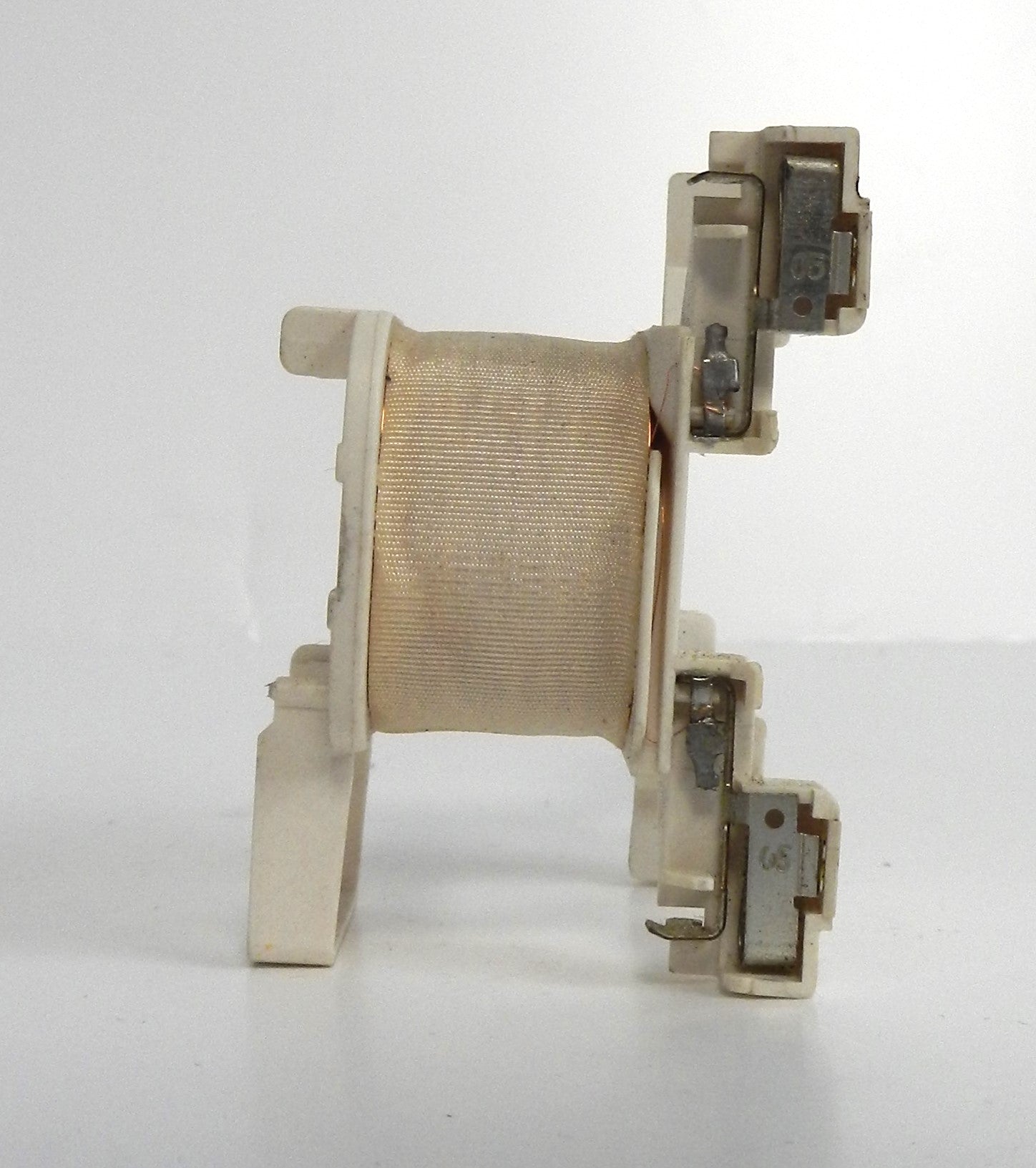

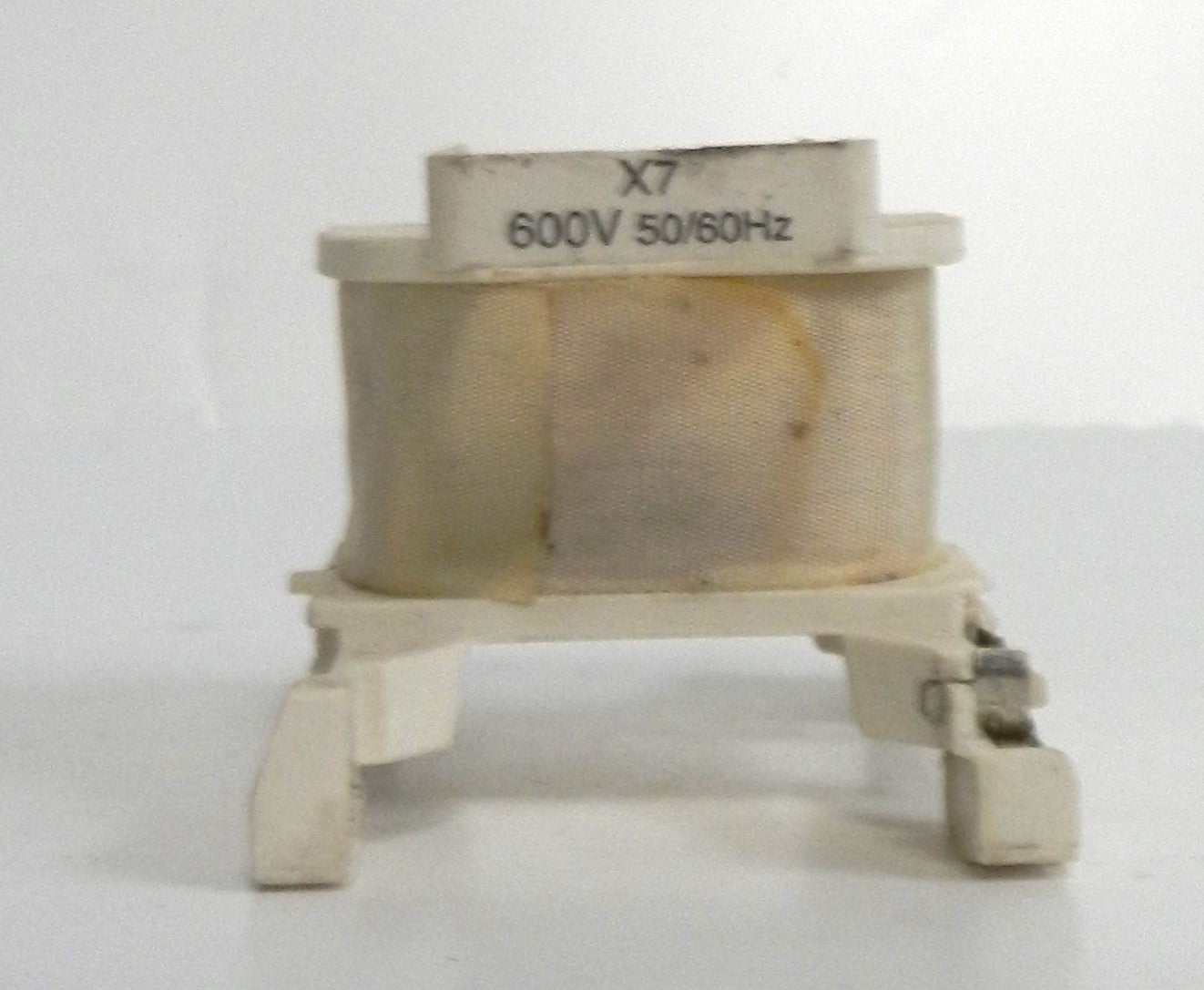

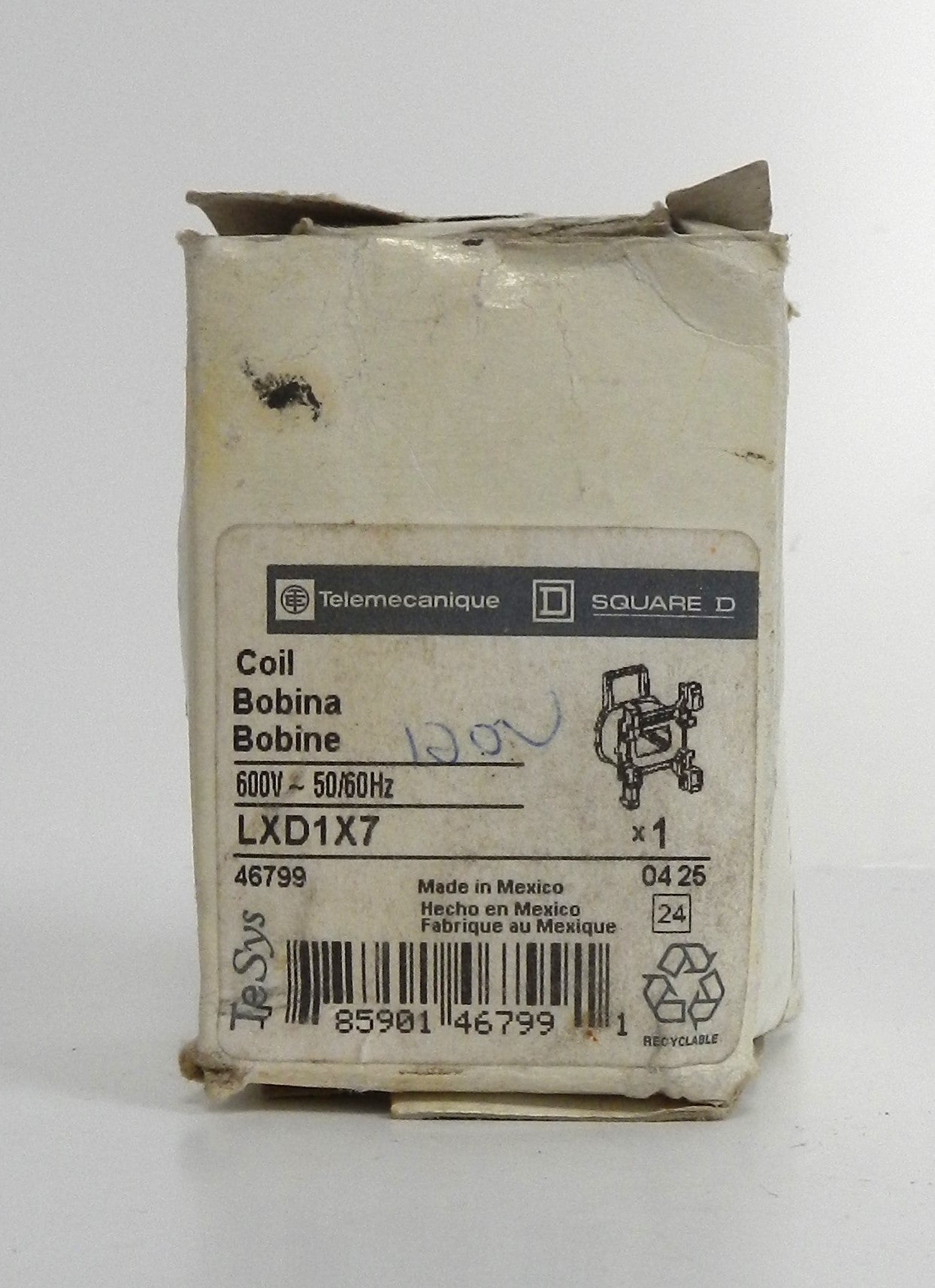

LXD1X7 Square D / Schneider Electric TeSys D Contactor Coil 600VAC 50/60Hz Replacement Coil

Description:

• Genuine Square D / Schneider Electric replacement contactor coil for TeSys D contactors
• Designed for LC1D09 through LC1D38 and LC1DT20 through LC1DT40 TeSys D contactors
• Rated for 600 VAC, 50/60 Hz control voltage
• Quick replacement design minimizes downtime and simplifies maintenance
• Manufactured without an integrated surge suppressor for standard control circuit applications
• Provides reliable operation with high mechanical durability for industrial automation environments
• Ideal for motor starters, HVAC systems, machine automation, industrial control panels, OEM equipment, and process control
• Genuine Schneider Electric replacement part ensures proper fit and performance with compatible TeSys D contactors.

Specifications:

• Manufacturer Name: Square D / Schneider Electric
• Part Number (MPN): LXD1X7
• Product Series: TeSys Deca
• Product Family: LXD1
• Product Type: Contactor Coil
• Control Circuit Type: AC 50/60 Hz
• Control Voltage: 600 VAC
• Compatible Contactors:
  • LC1D09 to LC1D38
  • LC1DT20 to LC1DT40
• Coil Technology: Without Built-In Suppressor Module
• Average Resistance: 3810 Ω @ 20°C
• Closed Circuit Inductance: 136 H
• Inrush Power Consumption:
  • 70 VA @ 50 Hz
  • 70 VA @ 60 Hz
• Holding Power Consumption:
  • 7 VA @ 50 Hz
  • 7.5 VA @ 60 Hz
• Heat Dissipation: 2–3 W
• Mechanical Durability: 15 Million Operations
• Maximum Operating Rate: 3600 Cycles/Hour
• Operating Temperature: -5°C to +60°C
• Applications:
  • Motor Starters
  • Industrial Automation
  • Machine Control
  • HVAC Equipment
  • Control Panels
  • OEM Machinery
  • Process Control

Dimensions:

• Compact replacement coil designed specifically for TeSys D LC1D09–LC1D38 contactors.
• Direct-fit replacement with no modifications required.

Weight:

• Approximate Weight: 0.09 kg (0.20 lb).
