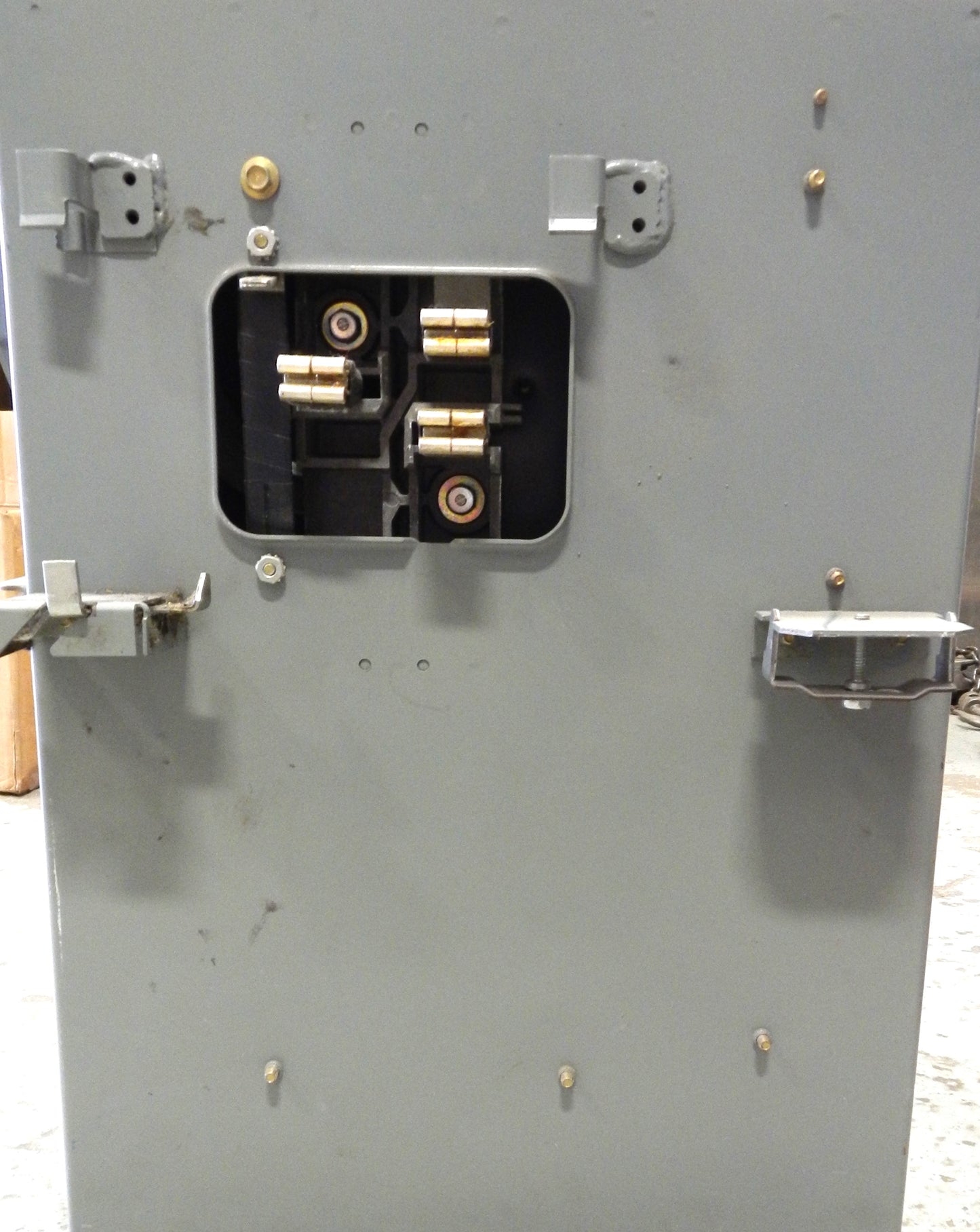

PQ3620G Square D I-Line 200A 3-Pole 600VAC Fusible Busway Plug Unit with Ground

Description:

• Genuine Square D by Schneider Electric fusible busway plug-in unit for I-Line and I-Line II busway systems
• Rated for 200 Amps, 3-Pole, 600 VAC industrial power distribution applications
• Designed for 3-phase, 3-wire with integral ground busway installations
• Accepts Class H, K, R fuses and can be field-converted for Class J fuses using the appropriate kit
• Plug-in design allows fast installation, relocation, and maintenance without modifying the busway
• Heavy-duty NEMA 1 enclosure for indoor industrial and commercial environments
• Compatible with Square D I-Line and I-Line II busway systems
• UL Listed and CSA Certified for dependable performance in demanding electrical distribution applications
• Ideal for manufacturing facilities, data centers, commercial buildings, industrial plants, and OEM power distribution systems

Specifications:

• Manufacturer Name: Square D by Schneider Electric
• Part Number (MPN): PQ3620G
• Product Series: I-Line Busway
• Product Type: Fusible Busway Plug-In Unit
• Rated Current: 200 A
• Number of Poles: 3
• Rated Voltage: 600 VAC
• Phase: 3-Phase
• Wire Configuration: 3-Wire with Integral Ground
• Disconnect Type: Fusible
• Compatible Fuse Classes:
  • Class H
  • Class K
  • Class R
  • Field Convertible to Class J
• Connection Type: Plug-In
• Enclosure Rating: NEMA 1
• Compatible Busway:
  • Square D I-Line
  • Square D I-Line II
• Certifications:
  • UL Listed
  • CSA Certified
• Applications:
  • Industrial Power Distribution
  • Commercial Buildings
  • Manufacturing Plants
  • Electrical Distribution Systems
  • OEM Equipment
  • Busway Installations

Dimensions:

• Height: 16.20 in (411 mm)
• Width: 22.50 in (572 mm)
• Depth: 11.41 in (290 mm)

Weight:

• Approximate Shipping Weight: 30.8 kg (67.9 lb)
