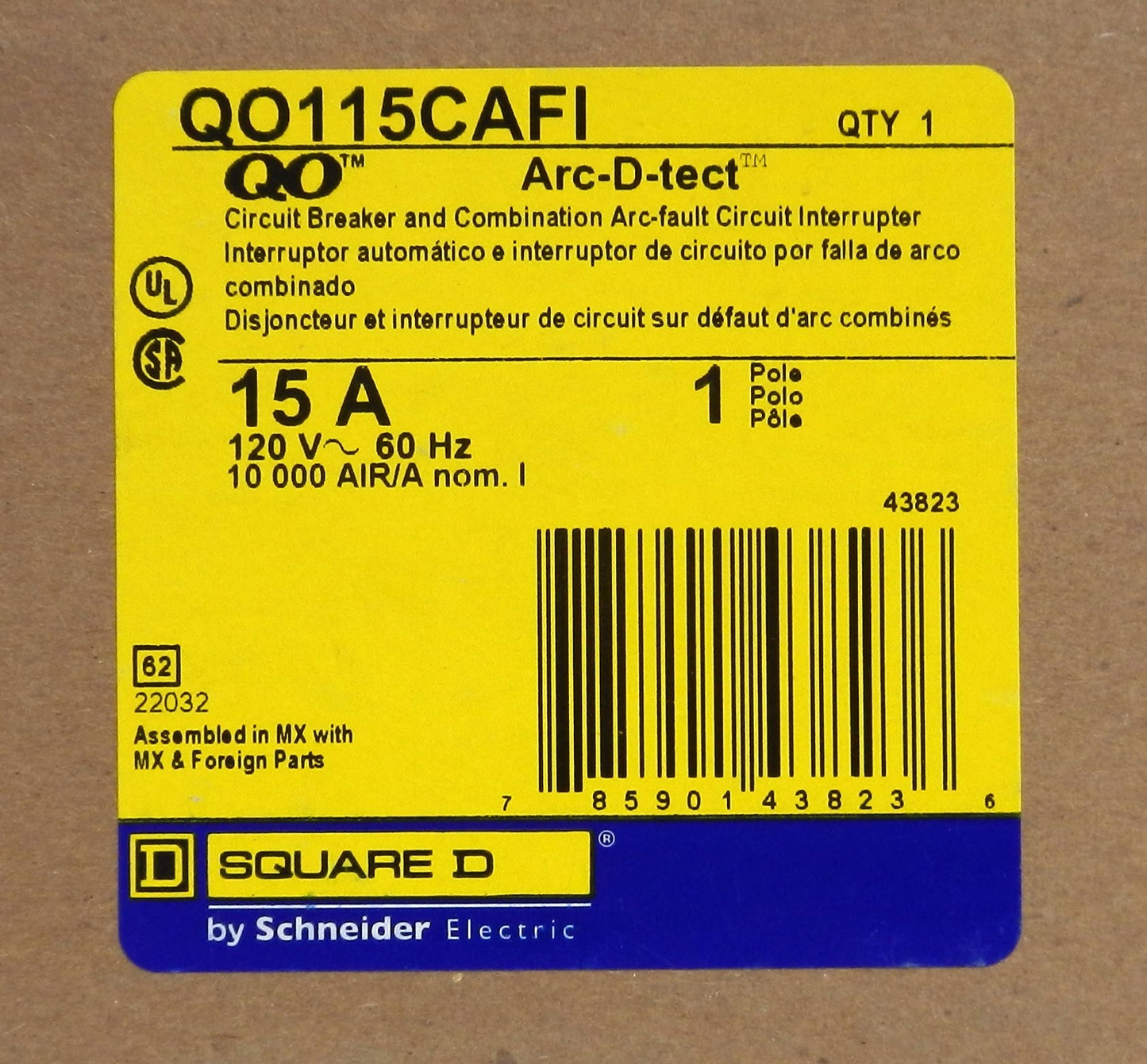

QO115CAFI Square D 15A 1-Pole Combination AFCI Circuit Breaker 120VAC QO Series Plug-In

Description:

• Genuine Square D by Schneider Electric combination Arc Fault Circuit Interrupter (CAFI) circuit breaker for residential and light commercial electrical systems
• Provides 15 Amp, 1-pole branch circuit protection against arc faults, overloads, and short circuits
• Combination AFCI technology detects both series and parallel arc faults to help reduce the risk of electrical fires
• Designed for use in Square D QO™ load centers and panelboards
• Plug-in mounting with pigtail neutral connection for quick installation
• Features Time-Saver Diagnostics to help identify the cause of the last trip for faster troubleshooting
• Includes Schneider Electric's VISI-TRIP® indicator for easy identification of tripped breakers
• Rated for 120 VAC operation with a 10 kA interrupt rating
• Ideal for bedrooms, living rooms, dining rooms, family rooms, hallways, and other AFCI-protected branch circuits required by electrical codes
• UL Listed and CSA Certified for reliable performance and safety.

Specifications:

• Manufacturer Name: Schneider Electric (Square D)
• Part Number (MPN): QO115CAFI
• Product Series: QO™
• Product Type: Combination AFCI Circuit Breaker
• Number of Poles: 1
• Rated Current: 15 A
• Rated Voltage: 120 VAC
• Frequency: 50/60 Hz
• Interrupt Rating: 10 kA
• Breaker Type: Combination Arc-Fault Circuit Interrupter (CAFI)
• Mounting Type: Plug-In
• Neutral Connection: Pigtail
• Terminal Type: Pressure Plate
• Wire Size:
  • Copper: 14–8 AWG
  • Aluminum: 12–8 AWG
• Tightening Torque: 4 N·m (35.4 lb-in)
• Panel Spaces Required: 1
• Certifications:
  • UL Listed
  • CSA Certified
• Country of Origin: Mexico
• Applications:
  • Residential Electrical Panels
  • QO Load Centers
  • Branch Circuit Protection
  • Electrical Fire Protection
  • New Construction
  • Renovation Projects

Dimensions:

• Height: 121 mm (4.8 in)
• Width: 19 mm (0.75 in)
• Depth: 74 mm (2.9 in)

Weight:

• Approximate Weight: 0.27 kg (0.60 lb).
