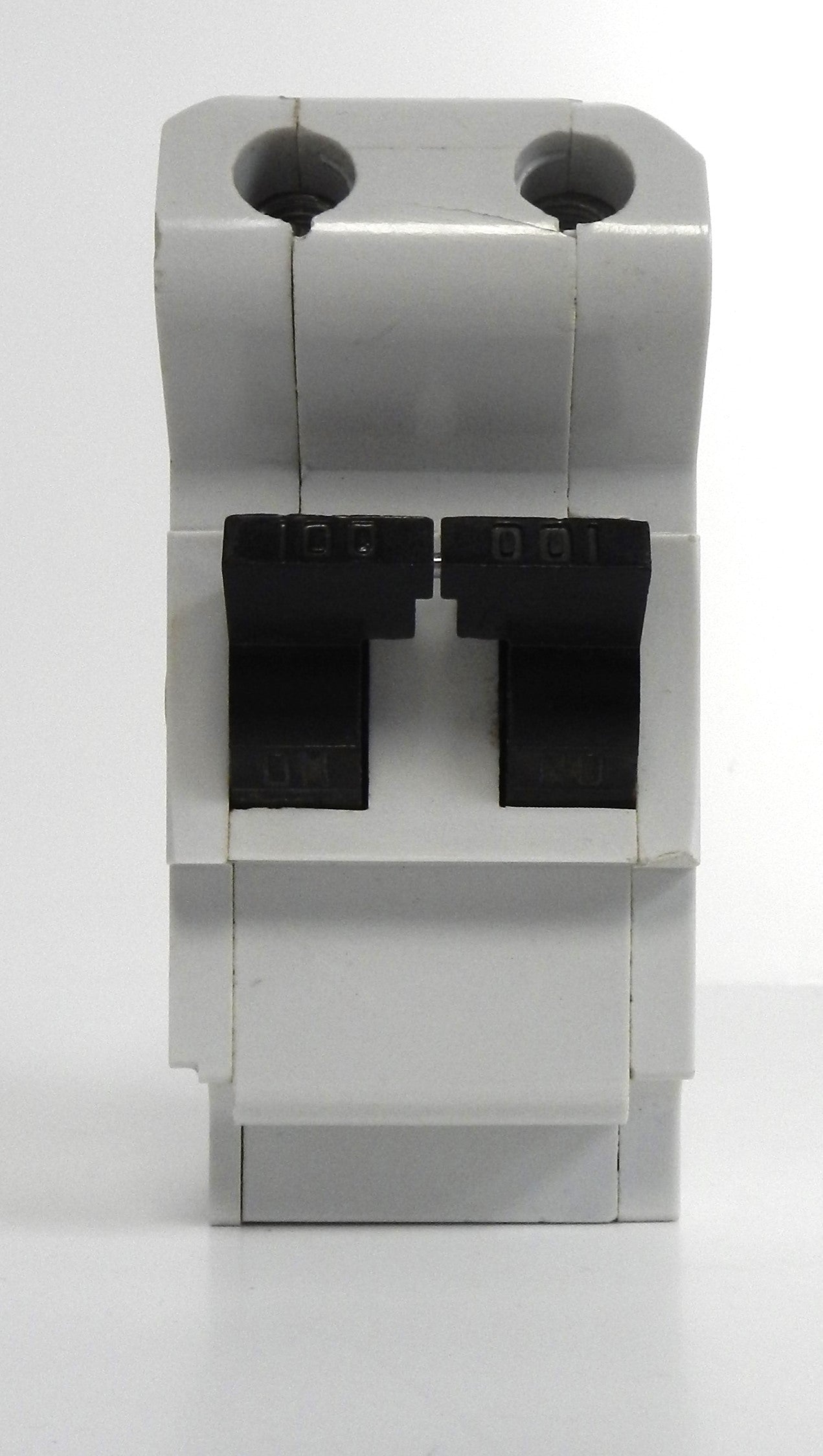

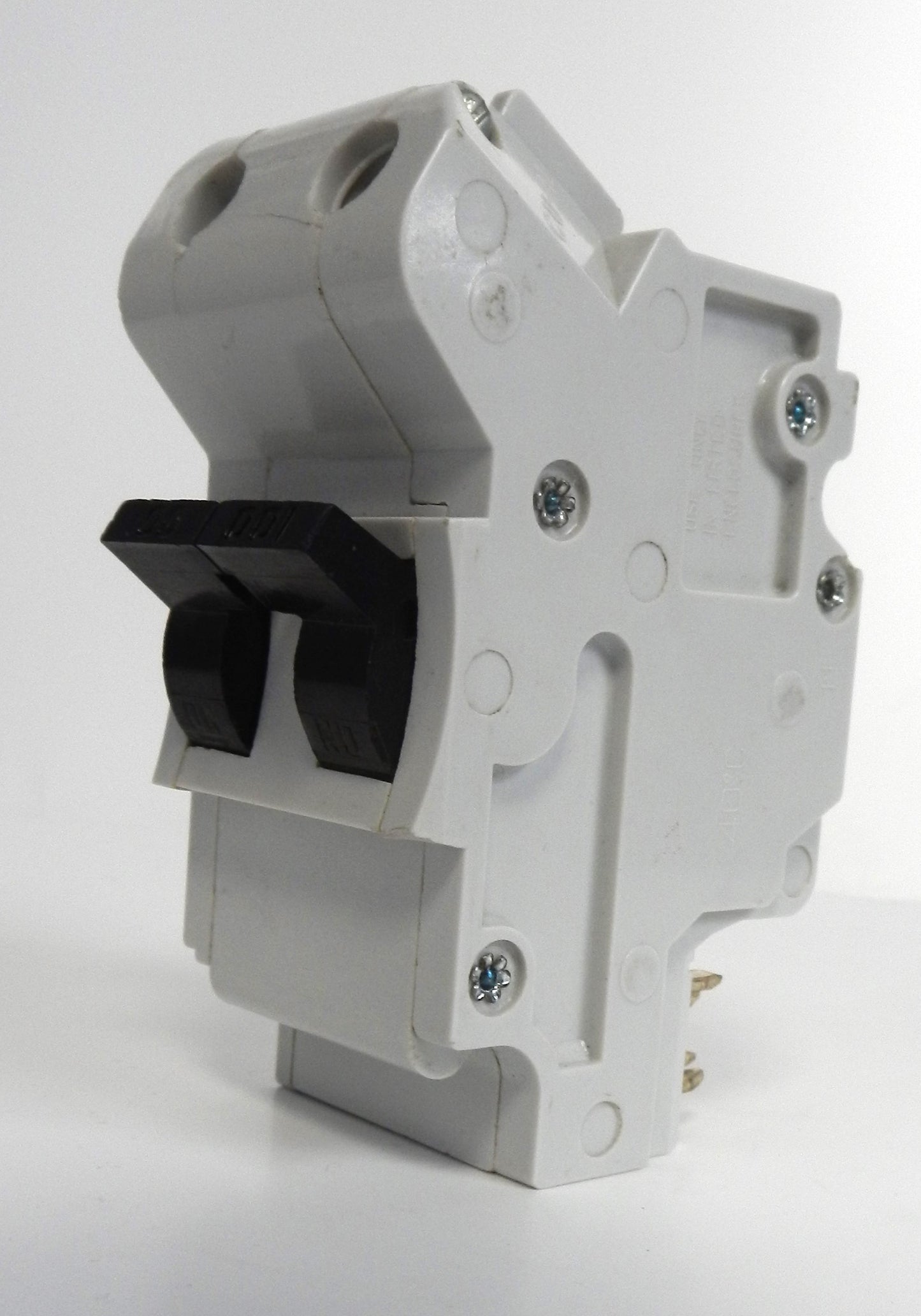

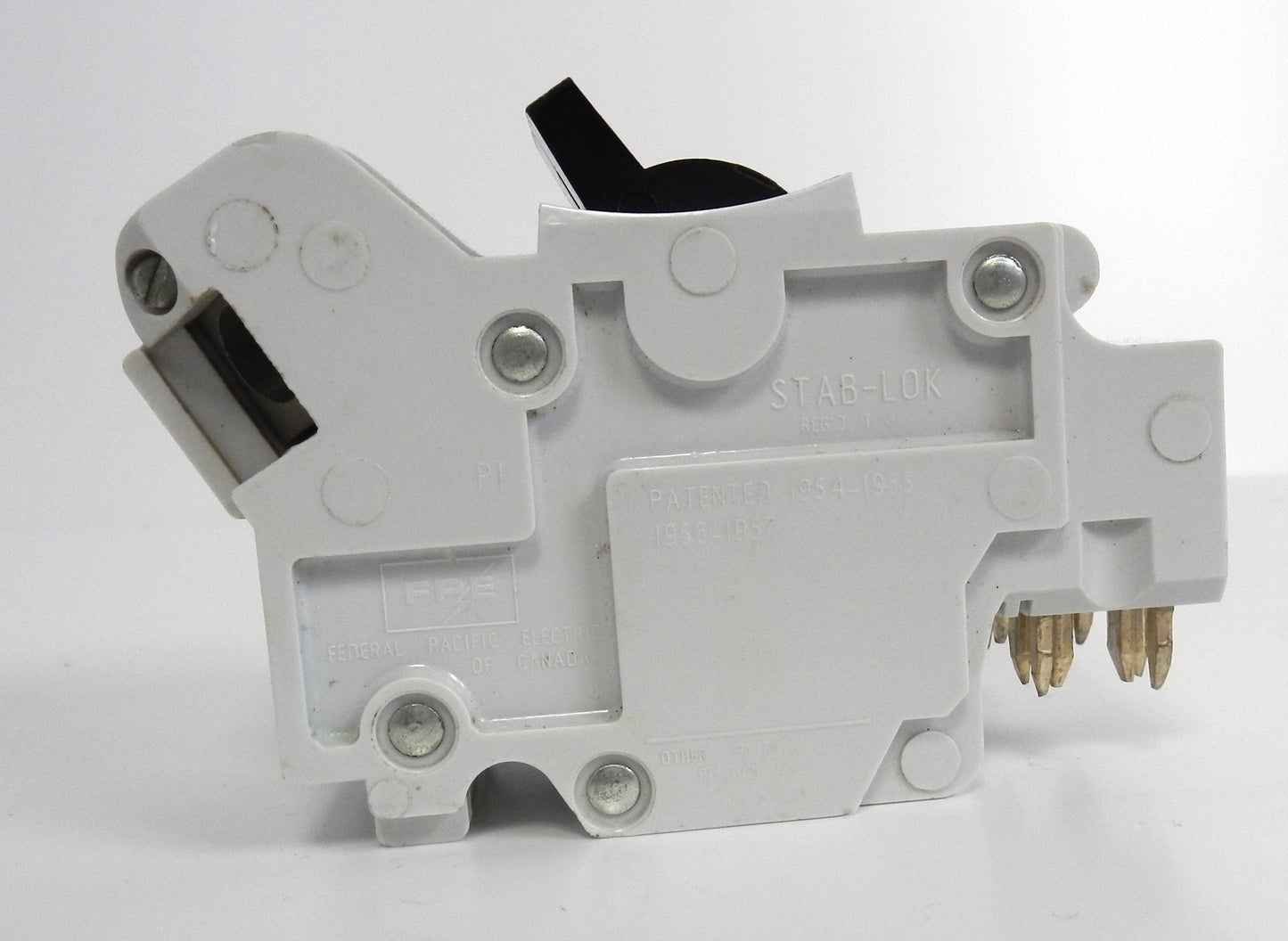

NA2P100 Federal Pioneer Stab-Lok 100A 2-Pole Circuit Breaker 120/240VAC Plug-In

Description:

• Genuine Federal Pioneer Stab-Lok plug-in circuit breaker for residential and light commercial electrical distribution panels
• Provides 100 Amp, 2-pole overcurrent and short-circuit protection
• Designed for use in compatible Federal Pioneer Stab-Lok load centers and panelboards
• Rated for 120/240 VAC single-phase electrical systems
• Thermal-magnetic trip mechanism provides dependable overload and short-circuit protection
• 10 kA interrupting capacity for reliable fault clearing
• Plug-in mounting design allows quick installation into compatible Stab-Lok panels
• Screw lug terminals accept AWG #4 to 2/0 copper conductors
• CSA approved for use in Canada
• Ideal for main feeders, subpanels, electric heating, large appliances, and residential service upgrades requiring a 100A double-pole breaker.

Specifications:

• Manufacturer Name: Federal Pioneer (Schneider Electric)
• Part Number (MPN): NA2P100
• Product Series: Stab-Lok NA
• Product Type: Miniature Circuit Breaker
• Number of Poles: 2
• Rated Current: 100 A
• Rated Voltage: 120/240 VAC
• Interrupt Rating: 10 kA AIR
• Trip Type: Thermal-Magnetic
• Mounting Type: Plug-In
• Terminal Connection: Screw Lug
• Compatible Wire Size: AWG #4 to 2/0 Copper
• Compatible Panels: Federal Pioneer Stab-Lok NA Load Centers
• Certifications:
  • CSA Approved
• Applications:
  • Residential Load Centers
  • Main Feeder Protection
  • Subpanels
  • Electric Heating Circuits
  • Large Appliance Circuits
  • Electrical Distribution Panels

Dimensions:

• Height: 4.5 in (114 mm)
• Width: 2.0 in (51 mm)
• Depth: 3.0 in (76 mm).

Weight:

• Approximate Weight: 0.75 lb (0.34 kg).
