VS200 Suncourt Plug-In Variable Speed Fan Control 2.5A 120V 300W Solid State Controller

Description:

• Genuine Suncourt plug-in variable speed controller for compatible AC fan applications
• Model VS200 provides adjustable fan speed from low to high for improved airflow control
• Designed for compatible Suncourt Inductor In-Line Duct Booster Fans and Centrax Centrifugal Fans
• Maximum load capacity of 2.5 Amps
• Operates on standard 120 VAC, 60 Hz power
• Maximum output capacity of 300 Watts
• Solid-state electronic speed control provides smooth fan speed adjustment
• Plug-in design requires no hardwiring—plug the controller into an outlet and connect the compatible fan to the controller
• Features adjustable minimum speed setting
• Maximum ambient operating temperature of 140°F (60°C)
• UL Listed for safety
• Ideal for HVAC airflow adjustment, duct booster fans, ventilation systems, centrifugal fans, and air circulation applications
• Covered by Suncourt's 1-year limited warranty

Specifications:

• Manufacturer: Suncourt
• Model Number: VS200
• Product Type: Plug-In Variable Speed Fan Controller
• Control Type: Solid State
• Input Voltage: 120 VAC
• Frequency: 60 Hz
• Maximum Load: 2.5 A
• Maximum Output Current: 2.5 FLA
• Maximum Output Power: 300 W
• Speed Adjustment: Variable Low to High
• Minimum Speed Adjustment: Yes
• Installation Type: Plug-In
• Hardwiring Required: No
• Maximum Ambient Temperature: 140°F (60°C)
• Safety Rating: UL Listed
• Warranty: 1-Year Limited Warranty
• Compatible Equipment:
  • Suncourt Inductor In-Line Duct Booster Fans
  • Suncourt Centrax Centrifugal Fans
• Applications:
  • HVAC Systems
  • Duct Booster Fans
  • Ventilation Fans
  • Air Circulation Systems
  • Centrifugal Fans
  • Residential and Light Commercial Ventilation

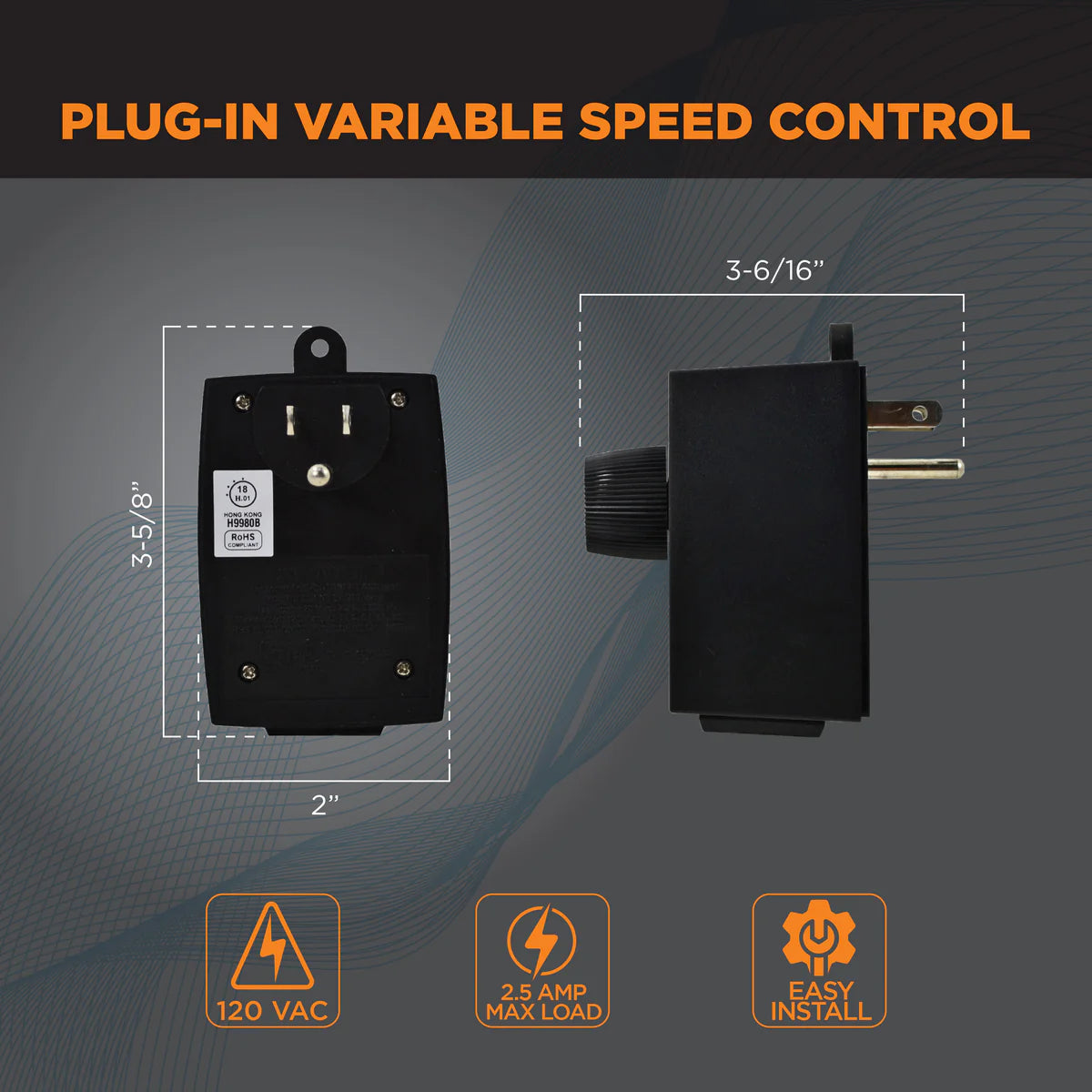

Dimensions:

• Width: Approximately 2 in
• Height: Approximately 3-5/8 in
• Depth: Approximately 1-13/16 in

Weight:

• Unit Weight: 0.20 lb (0.09 kg)
