2x2 SYLVANIA Edge-Lit LED Flat Panel Light 120-277V 0-10V Dimmable Ceiling Fixture

Description:

• Genuine SYLVANIA / LEDVANCE 2 ft × 2 ft edge-lit LED panel for commercial and industrial lighting applications
• Edge-lit LED technology provides smooth, uniform illumination with reduced glare and visible hot spots
• Designed as an energy-efficient replacement for traditional 2x2 fluorescent troffers
• Slim, low-profile construction provides a clean and modern ceiling appearance
• Designed for installation in standard T-grid suspended ceilings
• Available SYLVANIA 2x2 edge-lit configurations include 120–277 VAC universal voltage and 0–10V dimming
• SYLVANIA edge-lit panels were offered in 3500K, 4000K, and 5000K color temperatures depending on the exact model
• 80+ CRI provides consistent and natural-looking illumination
• Suitable for offices, retail stores, schools, commercial buildings, hallways, hospitality spaces, and other indoor applications
• White housing and diffuser provide a professional architectural appearance
• SYLVANIA's 2x2 edge-lit panel platform measures approximately 23.8 × 23.8 × 1.7 inches.

Specifications:

• Manufacturer: SYLVANIA / LEDVANCE
• Product Type: Edge-Lit LED Flat Panel
• Fixture Size: 2 ft × 2 ft
• LED Technology: Edge-Lit
• Installation: Recessed / T-Grid Ceiling
• Input Voltage: 120–277 VAC on common SYLVANIA edge-lit models
• Dimming: 0–10V on standard dimmable models
• CRI: 80+
• Available CCT:
  • 3500K
  • 4000K
  • 5000K
• Lens: White Flat PMMA Diffuser
• Operating Temperature: -20°C to +40°C (-4°F to +104°F)
• Rated Location: Indoor / Dry Location
• Applications:
  • Offices
  • Retail Stores
  • Schools
  • Commercial Buildings
  • Hospitality
  • Conference Rooms
  • Hallways
  • General Commercial Lighting

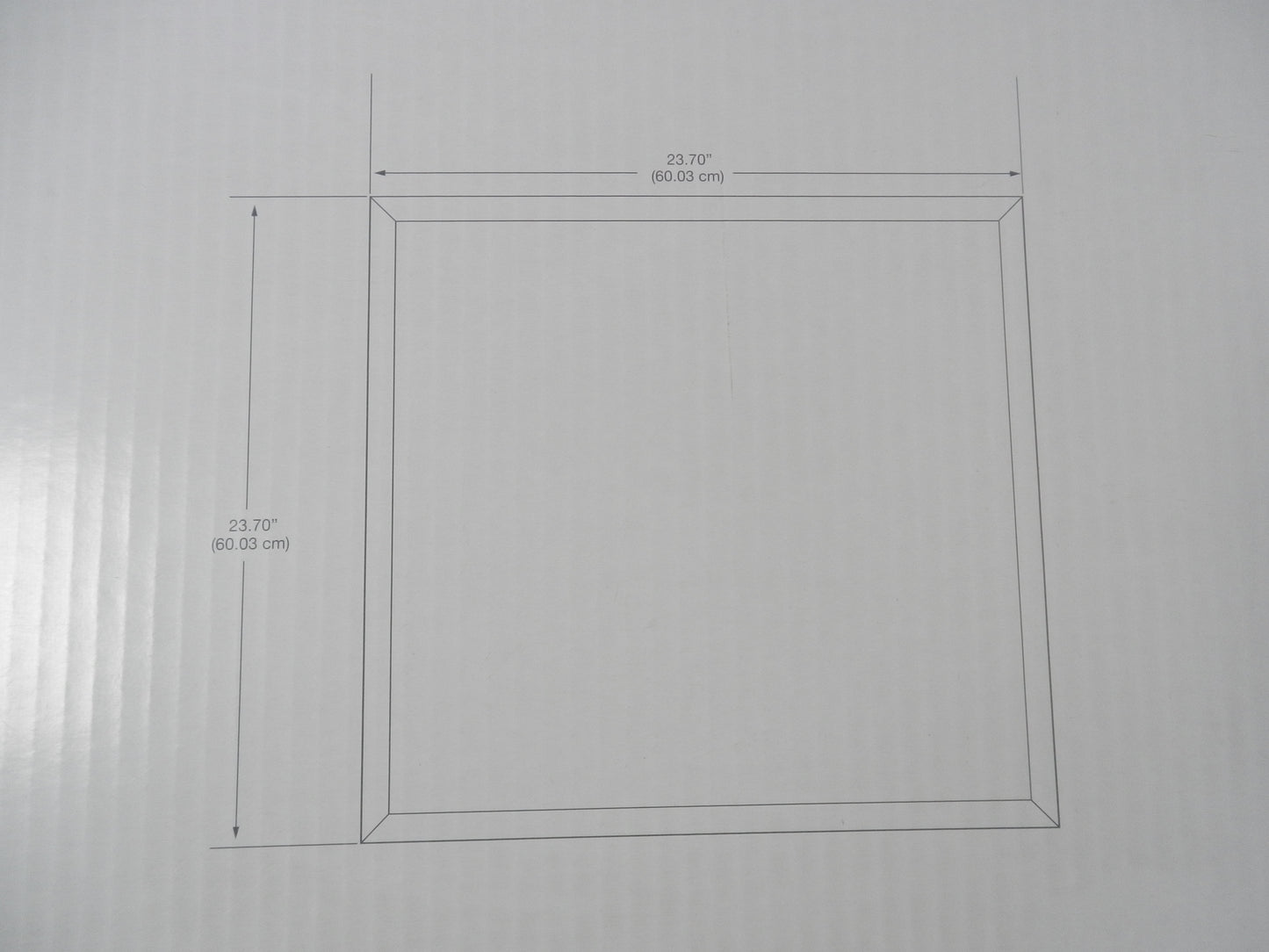

Dimensions:

• Length: 23.8 in (604.5 mm)
• Width: 23.8 in (604.5 mm)
• Height: 1.7 in (43.2 mm)
