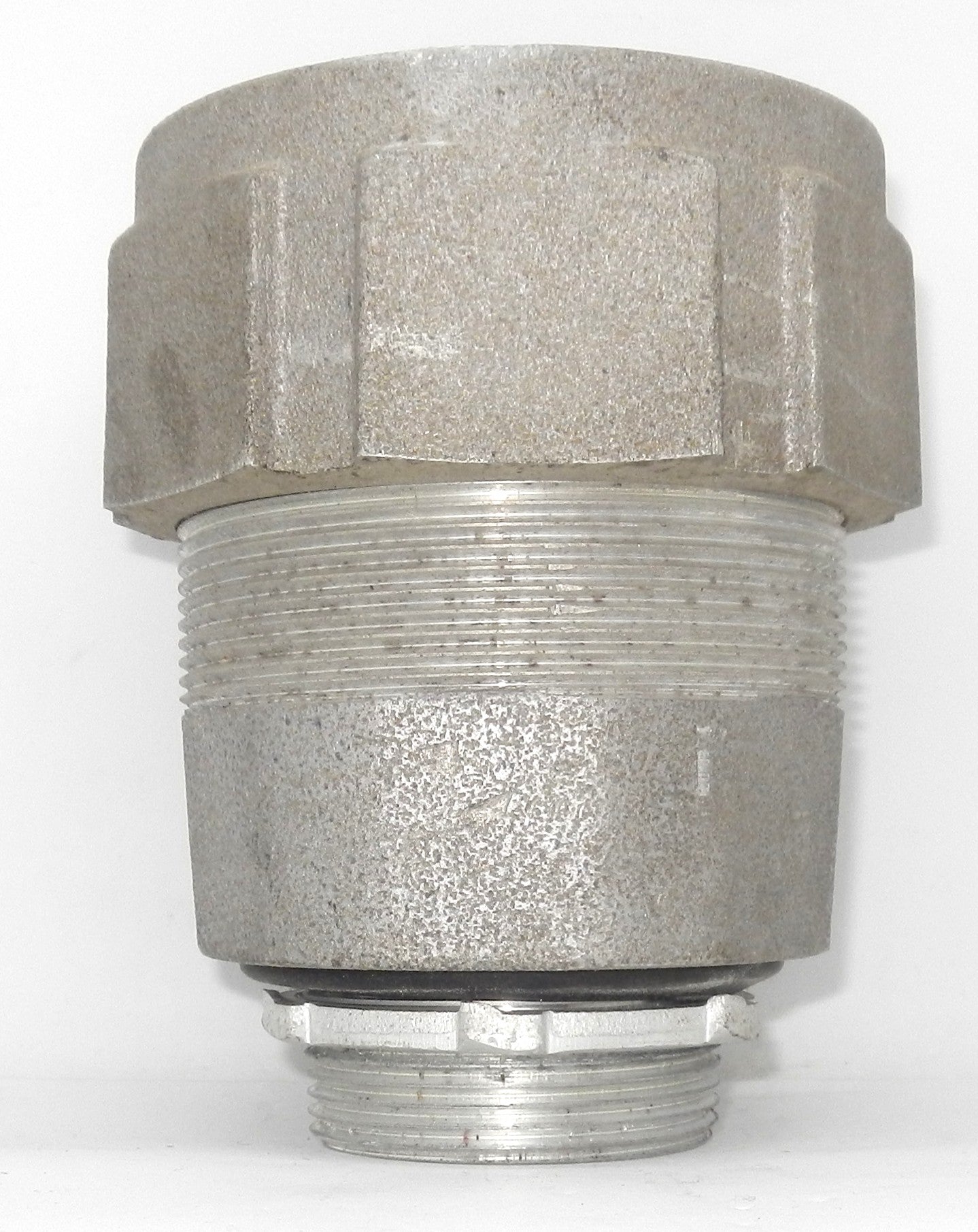

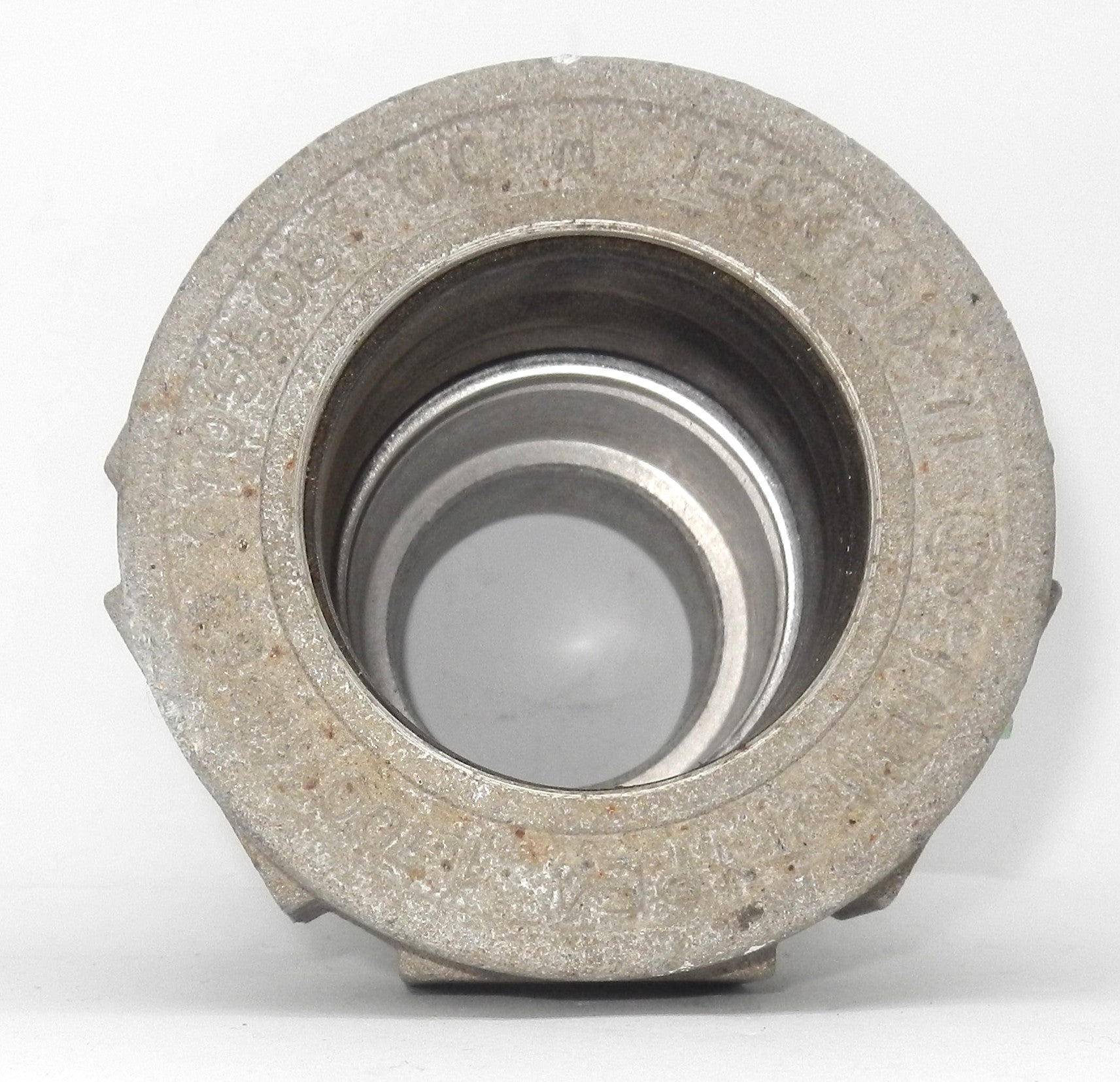

TECK150-11 Eaton Crouse-Hinds 1-1/2" Aluminum Cable Gland for TECK Armoured Cable

Description:

• Genuine Eaton Crouse-Hinds TECK cable gland for terminating TECK armoured cable
• Catalog Number: TECK150-11
• Designed for TECK corrugated or interlocked steel and aluminum armoured cable
• Features a 1-1/2" NPT hub/thread size
• Accepts cable outer sheath diameters from approximately 1.70" to 1.96"
• Accepts armour diameters from approximately 1.59" to 1.88"
• Constructed from durable aluminum with a neoprene sealing system
• Provides grounding continuity of TECK cable armour through an internal stainless-steel copper-plated spring
• Provides a watertight seal around the cable outer sheath and includes an integral O-ring at the entry threads
• Rated Type 4 / IP56 for protection in demanding industrial environments
• Suitable for hazardous, wet, and dry locations
• Ideal for junction boxes, motor control centers, panelboards, enclosures, industrial machinery, and electrical distribution equipment

Specifications:

• Manufacturer Name: Eaton Crouse-Hinds
• Part Number (MPN): TECK150-11
• Product Series: TECK
• Product Type: TECK Armoured Cable Gland / Connector
• Connector Type: Straight
• Hub / Thread Size: 1-1/2" NPT
• Material: Aluminum
• Cable Type: TECK Armoured Cable
• Armour Range: 1.59–1.88 in
• Outer Sheath Range: 1.70–1.96 in
• Across Flats: 3.75 in
• Across Corners: 3.60 in
• Thread Length: 0.80 in
• Overall Length: Approximately 3.80 in
• Ingress Protection: IP56
• Enclosure Rating: Type 4
• Operating Temperature: -25°C to +60°C
• Seal Material: Neoprene
• Entry Seal: Integral O-Ring
• Certification: CSA Listed
• CSA File: LR13046
• Applications:
  • TECK Armoured Cable
  • Industrial Control Panels
  • Motor Control Centers
  • Junction Boxes
  • Electrical Distribution
  • Industrial Machinery
  • Wet and Dry Locations

Dimensions:

• NPT Thread Size: 1-1/2 in
• Armour Diameter Range: 1.59–1.88 in
• Cable Outer Diameter Range: 1.70–1.96 in
• Across Flats: 3.75 in
• Across Corners: 3.60 in
• Thread Length: 0.80 in
• Overall Length: 3.80 in

Weight:

• Approximate Individual Weight: 1.70 lb (0.77 kg)
