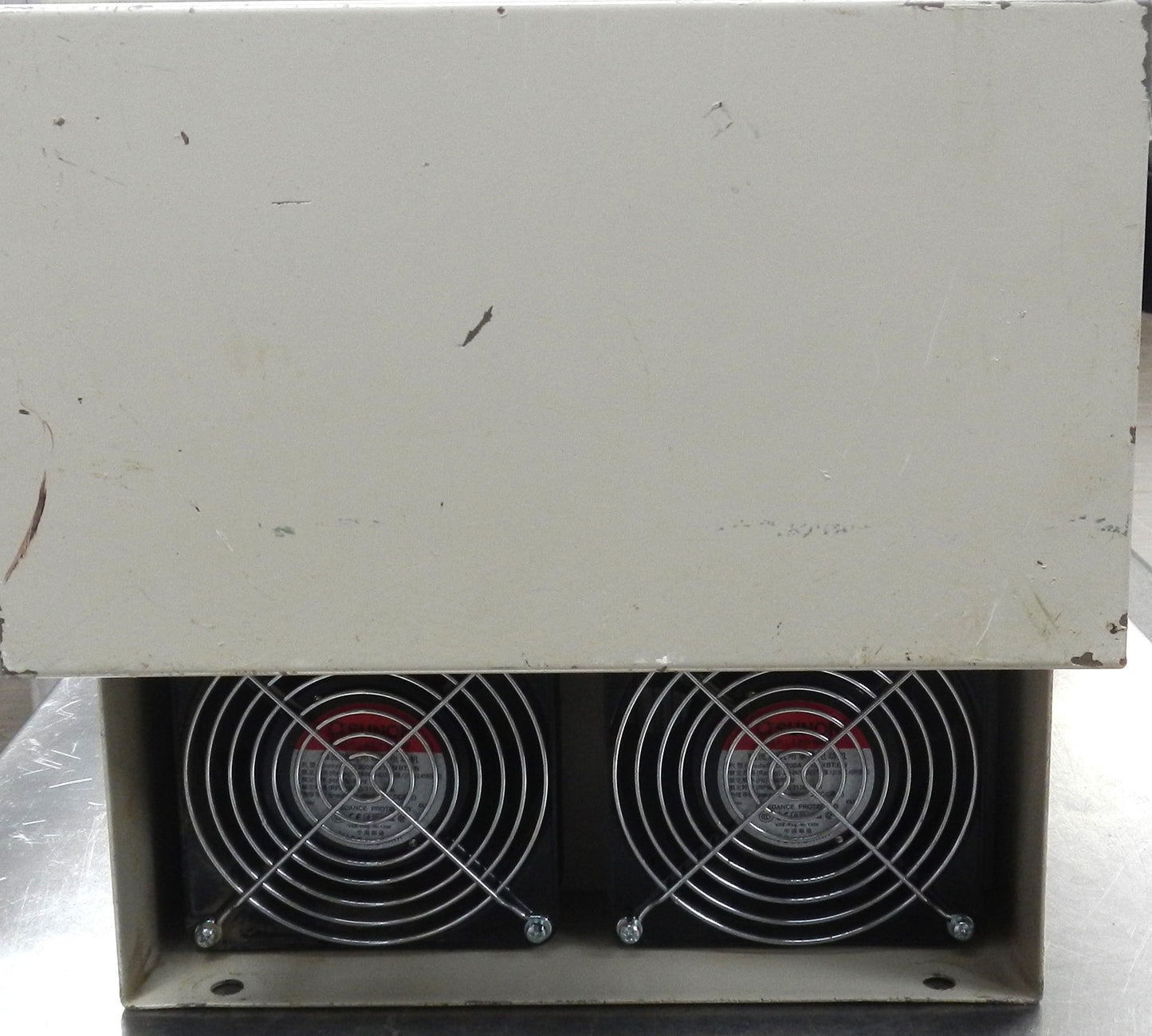

PA7300-5030-N1 TECO-Westinghouse 30HP Variable Frequency Drive 575V 3-Phase Fan & Pump VFD NEMA 1

Description:

• Genuine TECO-Westinghouse PA7300 variable frequency drive (VFD) designed specifically for fan and pump applications
• Rated for 30 HP, 575V AC, 3-phase, 50/60 Hz operation
• NEMA 1 enclosed wall-mounted design for indoor industrial installations
• Optimized for variable torque loads with advanced energy-saving algorithms
• Integrated PID controller with Auto Energy Savings and Sleep/Wake functions for efficient HVAC and pumping systems
• Features a 2-line LCD keypad with parameter copy capability for simplified commissioning and maintenance
• Supports optional communication protocols including Modbus, Profibus, LonWorks, and Metasys
• Built-in diagnostics and motor protection functions including phase loss detection and motor thermistor input
• Ideal for HVAC systems, water treatment plants, cooling towers, irrigation systems, process pumps, ventilation systems, and industrial fan control
• UL, cUL, and CE approved for industrial applications.

Specifications:

• Manufacturer Name: TECO-Westinghouse
• Part Number (MPN): PA7300-5030-N1
• Product Series: PA7300
• Product Type: Variable Frequency Drive (VFD)
• Drive Type: Fan & Pump Drive
• Rated Horsepower: 30 HP
• Input Voltage: 575 VAC
• Input Phase: 3-Phase
• Frequency: 50/60 Hz
• Enclosure: NEMA 1
• Mounting: Wall Mount
• Application Type: Variable Torque
• Built-in PID Controller: Yes
• Auto Energy Savings Function: Yes
• PID Sleep/Wake Function: Yes
• Display: 2-Line LCD Keypad
• Analog Inputs:
  • 2 × 0–10 VDC
  • 1 × 4–20 mA
• Analog Outputs:
  • 2 × 0–10 VDC
  • Optional 4–20 mA
• Communication Options:
  • Modbus
  • Profibus
  • LonWorks
  • Metasys
• Certifications:
  • UL
  • cUL
  • CE
• Applications:
  • HVAC Systems
  • Fan Control
  • Pump Control
  • Water & Wastewater
  • Irrigation Systems
  • Cooling Towers
  • Industrial Automation
  • Process Control

Dimensions:

• NEMA 1 wall-mounted enclosure designed for indoor industrial installations.
• Compact industrial drive suitable for panel or wall mounting.

Weight:

• Approximate Weight: 16 kg (35 lb).
