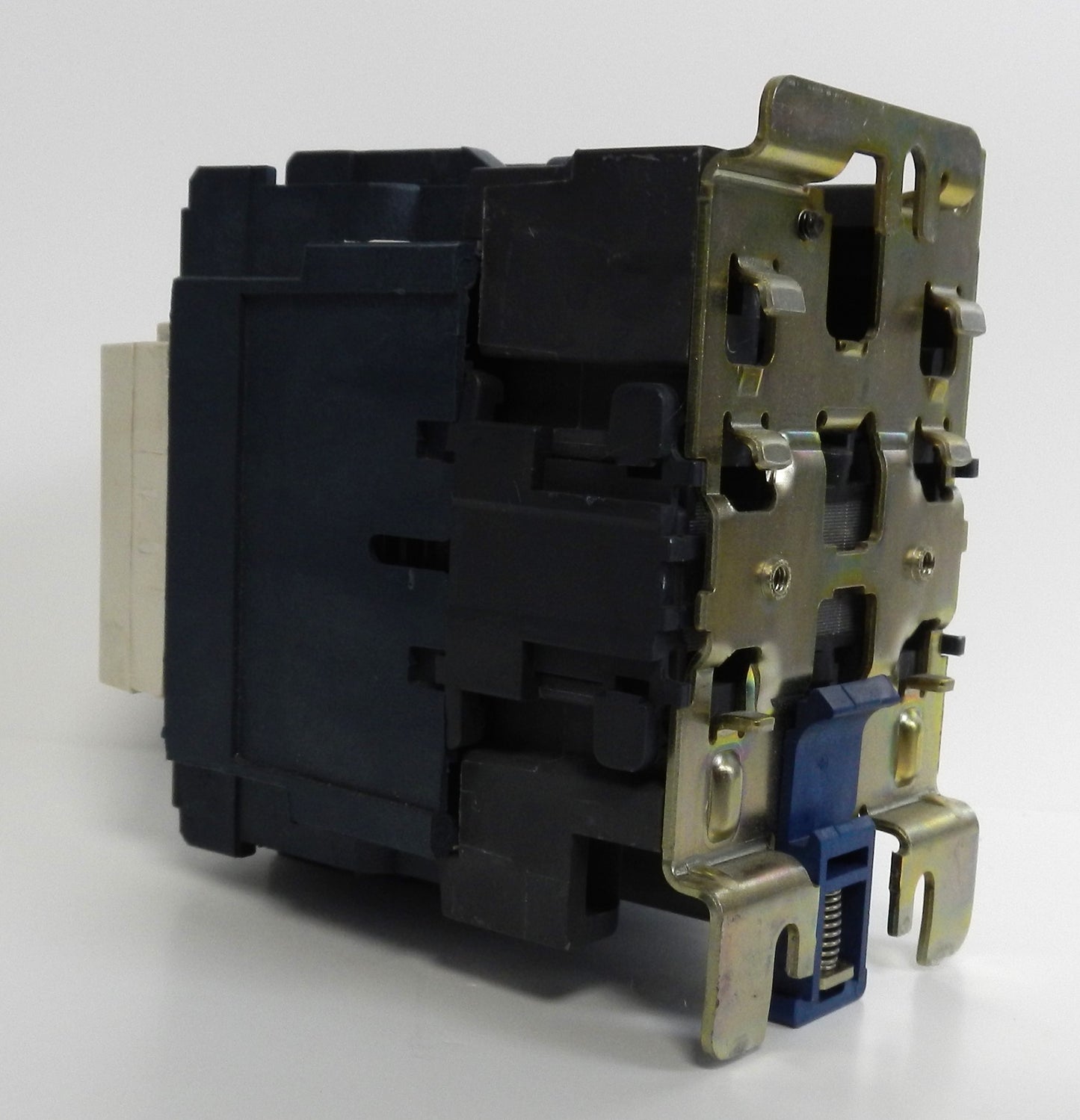

LC1 D8011 Telemecanique 80A 3-Pole IEC Contactor 1NO+1NC Auxiliary Motor Starter

Description:

• Genuine Telemecanique (Schneider Electric) IEC contactor for industrial motor control and automation applications
• Rated for 80A AC-3 motor switching with 3 Normally Open (3 NO) main power contacts
• Includes 1 Normally Open (1 NO) and 1 Normally Closed (1 NC) built-in auxiliary contacts for control circuits
• Designed for switching three-phase motors, pumps, compressors, conveyors, HVAC equipment, and industrial machinery
• Compatible with a wide range of interchangeable AC control coils (coil voltage depends on the suffix, e.g., G7, M7, U5, etc.)
• DIN rail or panel mounting for flexible installation in industrial control panels
• Accepts optional thermal overload relays, mechanical interlocks, timers, surge suppressors, and auxiliary contact blocks
• Heavy-duty IEC design provides reliable performance in demanding industrial environments
• Ideal for OEM equipment, manufacturing, machine automation, material handling, and process control
• Legacy Telemecanique TeSys D contactor; many versions have been superseded by the Schneider Electric LC1D80 series.

Specifications:

• Manufacturer Name: Telemecanique (Schneider Electric)
• Part Number (MPN): LC1 D8011
• Product Series: TeSys D
• Product Type: IEC Contactor
• Number of Poles: 3
• Main Contacts: 3 Normally Open (3 NO)
• Built-in Auxiliary Contacts: 1 NO + 1 NC
• Rated Operational Current (AC-3): 80 A
• Rated Thermal Current (AC-1): 110 A
• Rated Operational Voltage: Up to 690 VAC
• Motor Rating:
  • 37 kW @ 400 VAC
  • 60 HP @ 460/480 VAC (coil variant dependent)
• Rated Insulation Voltage (Ui): 1000 VAC
• Rated Impulse Withstand Voltage (Uimp): 8 kV
• Mounting:
  • DIN Rail
  • Panel Mount
• Mechanical Life: 6 Million Operations
• Electrical Life (AC-3): 600,000 Operations
• Compatible Accessories:
  • Thermal Overload Relays
  • Auxiliary Contact Blocks
  • Mechanical Interlocks
  • Surge Suppressors
  • Timing Modules
• Applications:
  • Motor Starters
  • Industrial Automation
  • HVAC Systems
  • Pumps
  • Compressors
  • Conveyors
  • Manufacturing Equipment
  • OEM Machinery

Dimensions:

• Height: 127 mm (5.00 in)
• Width: 85 mm (3.35 in)
• Depth: 127 mm (5.00 in)

Weight:

• Approximate Weight: 1.48 kg (3.26 lb).
