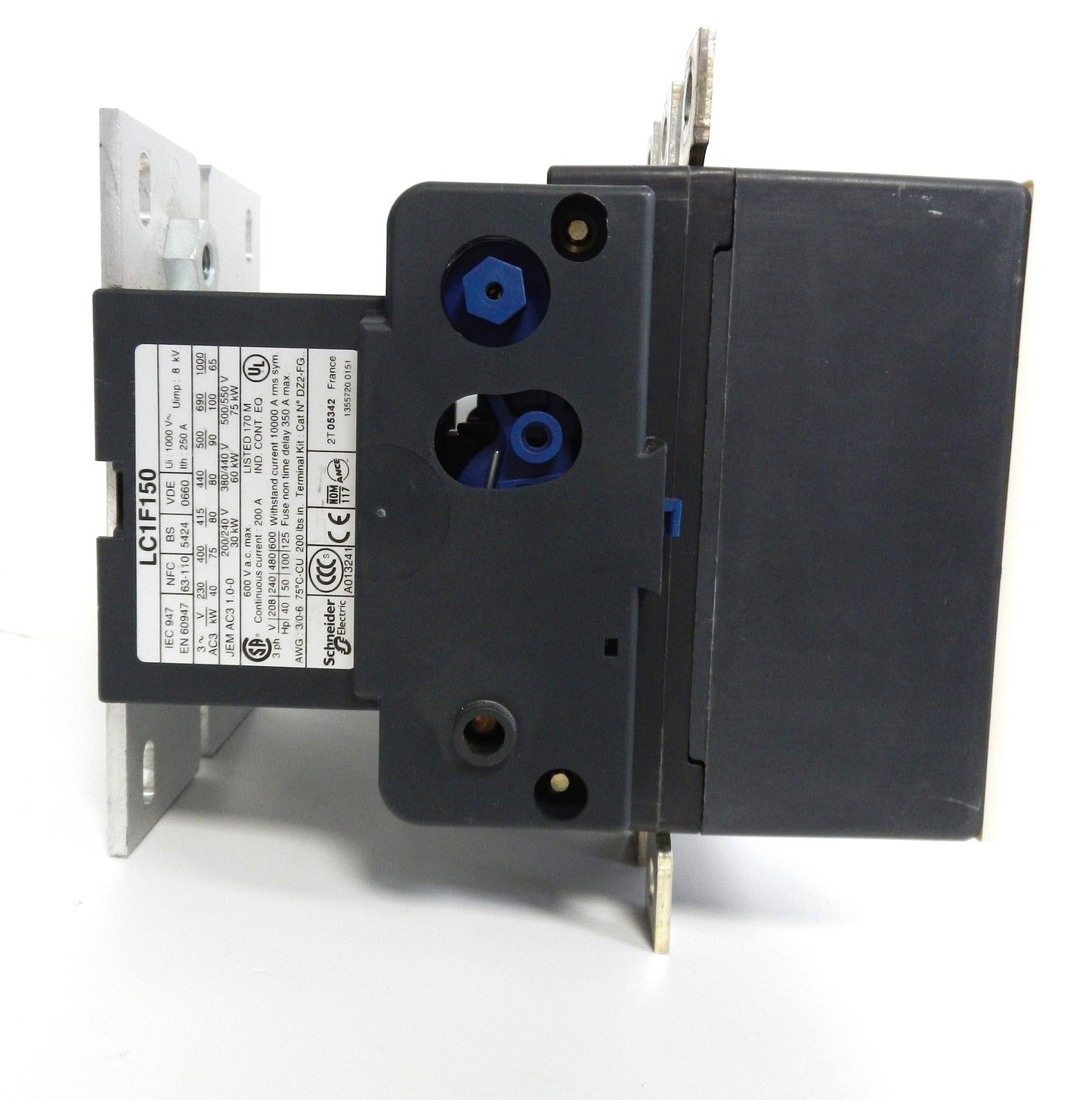

LC1-F150 Telemecanique TeSys F 3-Pole Contactor Body 150A AC-3 440V Without Coil

Description:

• Genuine Telemecanique / Schneider Electric TeSys F power contactor body for heavy-duty industrial motor control applications
• Rated 150A AC-3 for reliable switching of three-phase motors and industrial loads
• Features 3 Normally Open (3 NO) main power contacts
• Contactor body only – control coil is not included and must be selected separately to match the required control voltage
• Designed for switching motors up to 75 kW at 400V AC
• High-performance contact system engineered for demanding industrial environments
• Accepts interchangeable AC or DC coils and a wide range of TeSys F auxiliary accessories
• Easy maintenance with removable coil assembly and modular accessory compatibility
• Ideal for motor starters, industrial automation, HVAC systems, pump control, conveyors, compressors, and OEM machinery
• Discontinued by Schneider Electric; recommended replacement is the TeSys Giga LC1G150 series.

Specifications:

• Manufacturer Name: Telemecanique / Schneider Electric
• Part Number (MPN): LC1-F150
• Product Series: TeSys F
• Product Type: Power Contactor Body
• Number of Poles: 3
• Main Contacts: 3 Normally Open (3 NO)
• Rated Operational Current (AC-3): 150 A
• Rated Operational Voltage: ≤ 440 VAC
• Rated Insulation Voltage (Ui): 1000 VAC
• Motor Rating:
  • 75 kW @ 400 VAC
  • 100 HP @ 460 VAC
• Coil Included: No
• Mounting Type: Panel Mount
• Auxiliary Contact Compatibility: Yes
• Mechanical Durability: Up to 10 million operations
• Electrical Durability: Designed for heavy-duty AC-3 motor switching
• Operating Temperature: Up to 55°C
• Applications:
  • Motor Control
  • Industrial Automation
  • HVAC Systems
  • Pump Control
  • Compressors
  • Conveyor Systems
  • OEM Machinery
  • Manufacturing Equipment

Dimensions:

• Height: 301 mm (11.85 in)
• Width: 170 mm (6.69 in)
• Depth: 137 mm (5.39 in)

Weight:

• Approximate Weight: 3.08 kg (6.79 lb).
