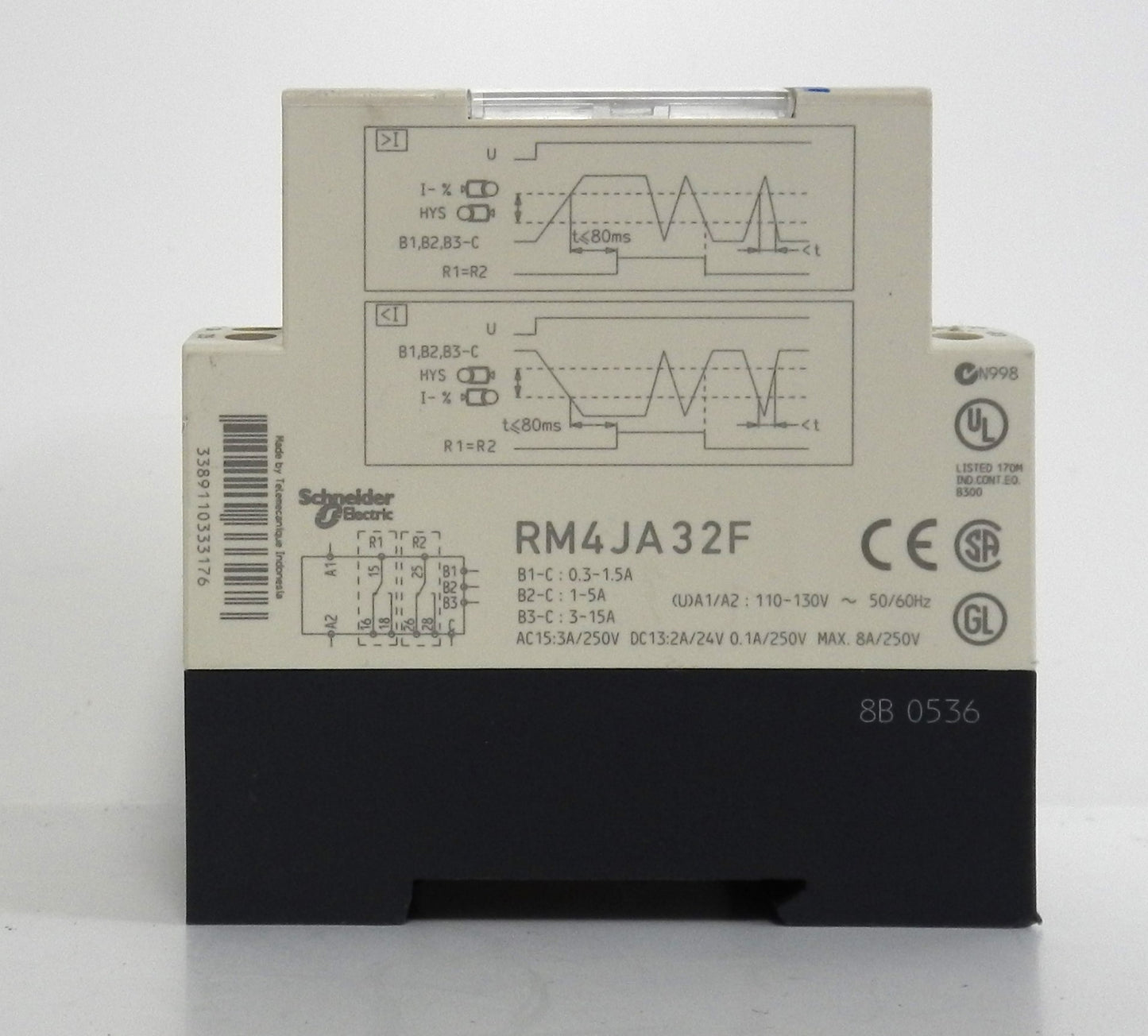

RM4JA32F Telemecanique Harmony Current Monitoring Relay 0.3-15A 110-130VAC 2 C/O

Description:

• Genuine Telemecanique / Schneider Electric Harmony Zelio Control current monitoring relay for industrial protection and automation systems
• Monitors overcurrent and undercurrent conditions in AC or DC circuits
• Adjustable measurement range from 0.3 A to 15 A, selectable across multiple ranges
• Operates with a 110–130 VAC, 50/60 Hz control supply
• Features 2 changeover (2 C/O or DPDT) relay output contacts for alarm or control functions
• Adjustable time delay from 0.05 to 30 seconds helps prevent nuisance tripping
• LED indicators provide clear status and relay operation feedback
• Compact 35 mm DIN rail mounting for easy installation in industrial control panels
• Ideal for motor protection, pump monitoring, conveyor systems, HVAC equipment, process control, and industrial automation
• Discontinued by Schneider Electric; recommended replacement is RM35JA32MR.

Specifications:

• Manufacturer Name: Telemecanique / Schneider Electric
• Part Number (MPN): RM4JA32F
• Product Series: Harmony Zelio Control RM4J
• Product Type: Current Monitoring Relay
• Relay Function:
  • Overcurrent Detection
  • Undercurrent Detection
• Rated Supply Voltage: 110–130 VAC
• Supply Frequency: 50/60 Hz
• Measurement Ranges:
  • 0.3–1.5 A AC/DC
  • 1–5 A AC/DC
  • 3–15 A AC/DC
• Time Delay: 0.05–30 seconds (Adjustable)
• Output Contacts: 2 C/O (DPDT)
• Maximum Switching Voltage: 440 VAC
• Measuring Cycle: ≤ 80 ms
• Mounting Type: 35 mm DIN Rail
• Terminal Type: Screw Terminals
• Width: 45 mm
• Operating Position: Any Position
• Power Consumption: 1.9–3.3 VA
• Certifications:
  • CE
  • IEC 60947
• Lifecycle Status: Discontinued
• Recommended Replacement: RM35JA32MR

Dimensions:

• Width: 45 mm (1.77 in)
• Compact DIN rail-mounted housing for industrial control panels.
