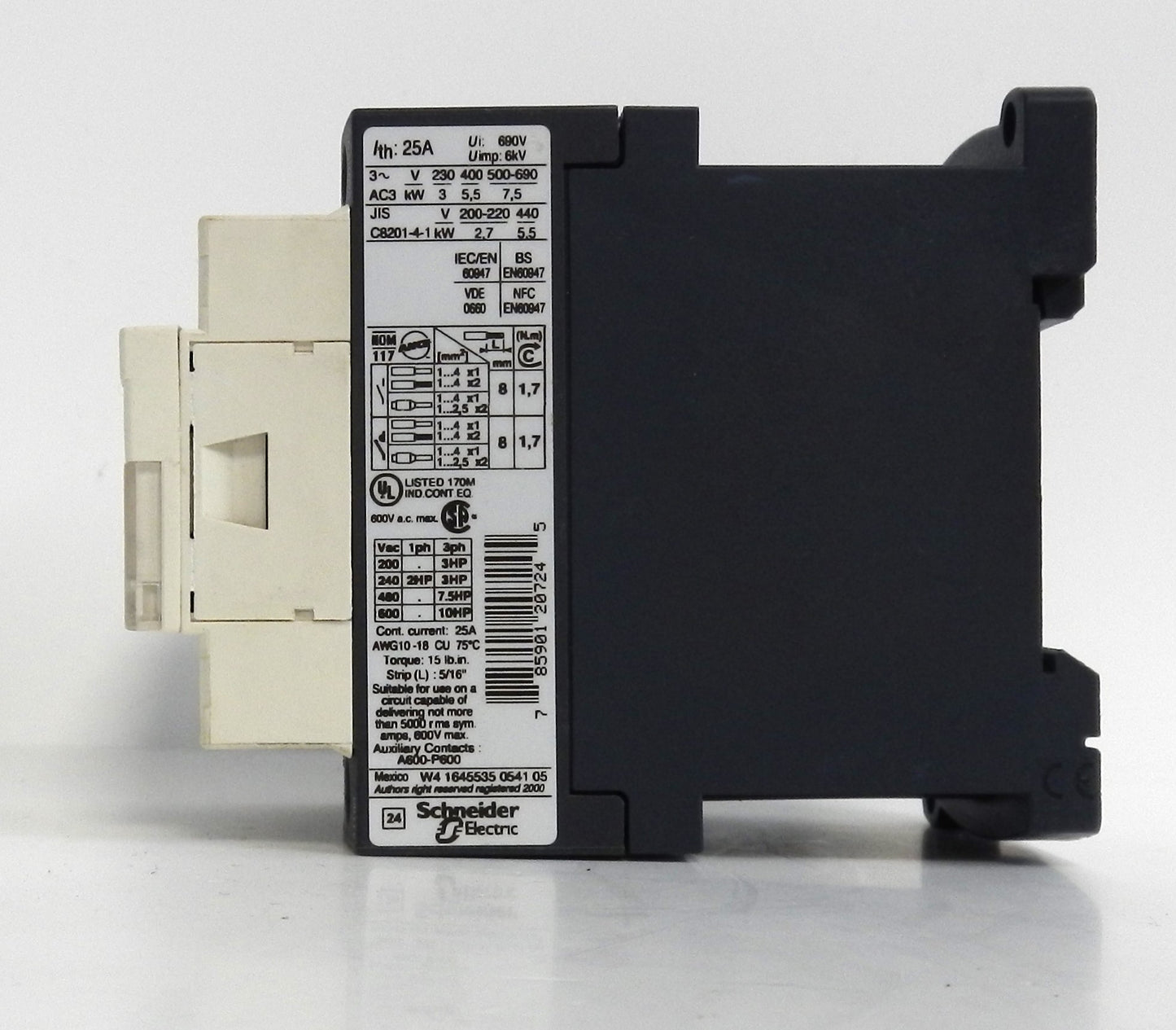

LC1D12BD Telemecanique Square D TeSys D IEC Contactor 12A 3-Pole 24VDC Coil 1NO+1NC

Description:

• Genuine Telemecanique / Square D (Schneider Electric) TeSys D IEC contactor for industrial motor control and automation applications
• Rated for 12A AC-3 motor switching and 25A AC-1 resistive loads
• Features 3 Normally Open (3 NO) main power contacts with 1 Normally Open + 1 Normally Closed (1NO + 1NC) built-in auxiliary contacts
• Equipped with a 24 VDC control coil (BD coil code)
• Supports motor loads up to 5.5 kW (7.5 HP @ 480V) depending on application
• Screw clamp terminals provide secure and reliable field wiring
• Suitable for 35 mm DIN rail or panel mounting
• Compact TeSys D design offers high electrical endurance and long mechanical life
• Ideal for motor starters, pumps, conveyors, compressors, HVAC equipment, packaging machinery, OEM equipment, and industrial automation systems
• Part of the Schneider Electric TeSys D contactor family.

Specifications:

• Manufacturer Name: Telemecanique / Square D (Schneider Electric)
• Part Number (MPN): LC1D12BD
• Product Series: TeSys D
• Product Type: IEC Contactor
• Number of Poles: 3
• Main Contacts: 3 Normally Open (3 NO)
• Auxiliary Contacts: 1 NO + 1 NC
• Rated Operational Current (AC-3): 12 A
• Rated Operational Current (AC-1): 25 A
• Control Coil Voltage: 24 VDC
• Rated Operational Voltage:
  • Up to 690 VAC
  • Up to 300 VDC
• Motor Rating (AC-3):
  • 3 kW @ 230 VAC
  • 5.5 kW @ 400–440 VAC
  • 7.5 kW @ 500–690 VAC
• Horsepower Rating:
  • 3 HP @ 230 VAC (3 Phase)
  • 7.5 HP @ 480 VAC (3 Phase)
  • 10 HP @ 600 VAC (3 Phase)
• Rated Impulse Withstand Voltage: 6 kV
• Mounting Type:
  • 35 mm DIN Rail
  • Panel Mount
• Terminal Type: Screw Clamp
• Width: 45 mm
• Operating Temperature: -25°C to +55°C
• Certifications:
  • UL Listed
  • CSA Certified
  • CE
  • IEC 60947-4-1
  • RoHS Compliant

Dimensions:

• Height: 96 mm (3.78 in)
• Width: 45 mm (1.77 in)
• Depth: 86 mm (3.39 in)

Weight:

• Approximate Weight: 0.53 kg (1.17 lb).
